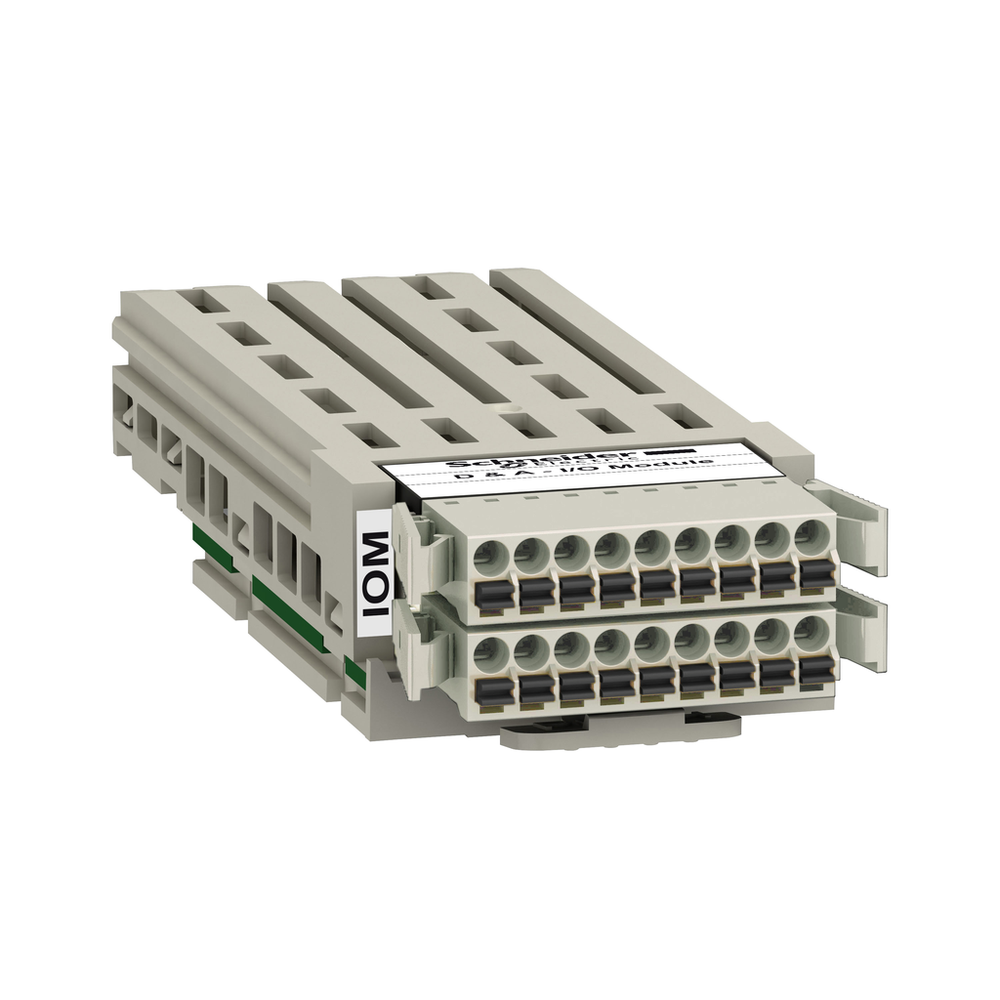

Schneider Electric VW3A3203
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This I/O expansion module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one removable spring terminal block 1.5 mm² / AWG 16.additional Input Output module, Altivar, 24V DC, 1 removable spring connector
Schneider Electric VW3A3203 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Discrete Input Voltage
- 24 V DC <= 30 V)programmable
- Discrete Output Voltage
- 24 V DC <= 30 V) assignable logic
- Electrical Connection
- removable spring terminal block, 1.5 mm² / AWG 16
- Maximum Output Current
- 100 mA, assignable logic
- Net Weight
- 0.5 kg
- Protection Type
- reverse polarity protection digital input || short-circuit protection output
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2010018EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Analogue Input Number
- 2
- Analogue Input Type
- AI1, AI2 configurable current 0...20 mA/4...20 mA 0-1 ms 14 bits || AI1, AI2 configurable voltage - 10...10 V DC, 24 V max 20 kOhm 0-1 ms 14 bits || AI1, AI2 configurable PTC, Pt 100, Pt 1000 0-1 ms 14 bits
- Discrete Input Current
- 2.5 mA
- Discrete Input Logic
- negative DI11...DI16) || positive DI11...DI16)
- Discrete Input Number
- 6
- Discrete Input Type
- DI11...DI16) programmable 250 Ohm 1-1 ms
- Discrete Output Logic
- DQ11, DQ12) negative || DQ11, DQ12) positive
- Discrete Output Number
- 2
- Discrete Output Type
- DQ11, DQ12) assignable logic 1-1 ms
- Input/Output Type
- 2 analog input configurable voltage, current or probe || 6 discrete input || 2 discrete output
- Product Or Component Type
- additional I/O module
- Range Compatibility
- Altivar Process ATV600 || Altivar Machine ATV340 || Altivar Process ATV900 || Easy Altivar 610
