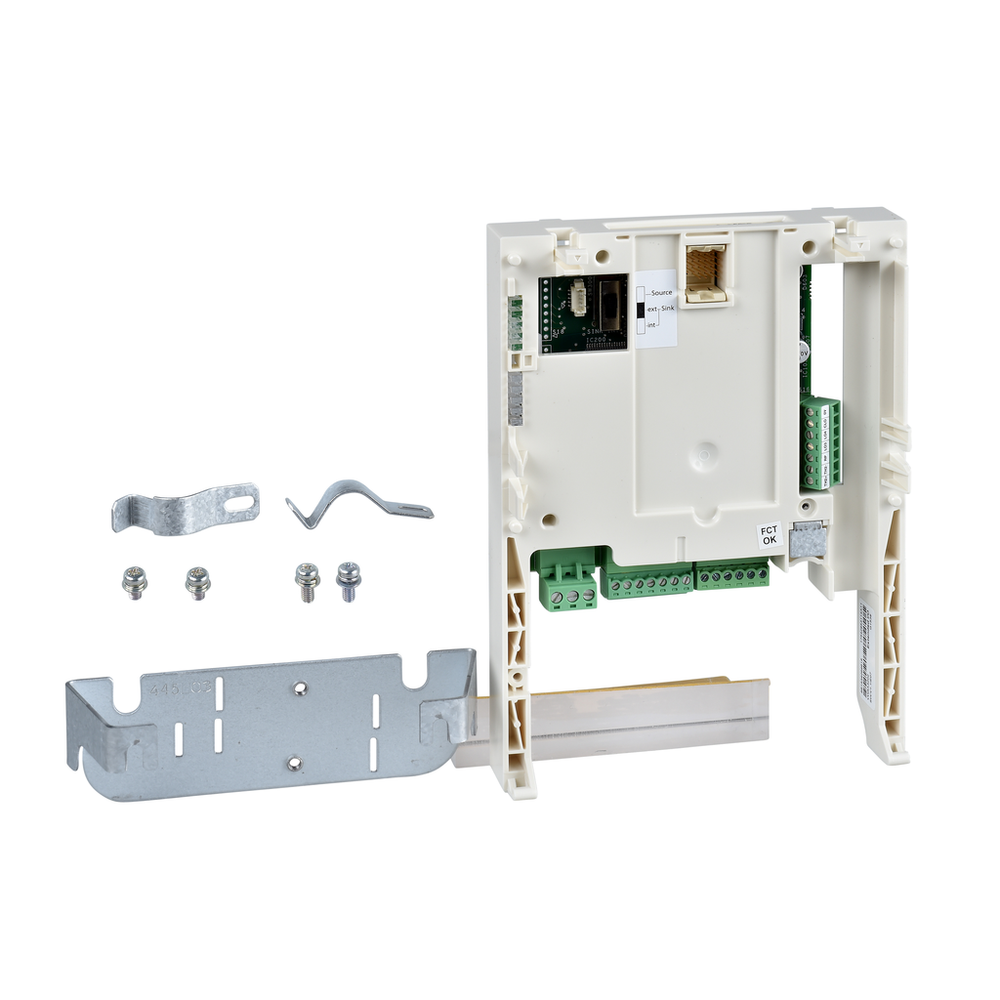

Schneider Electric VW3A3202
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This extended I/O card enables your drive to meet the needs of more complex or extensive applications. It comprises four logic inputs, two analog inputs, one input for PTC probe and one frequency control input. It also comprises three logic outputs and two analog outputs. It is compatible with Altivar 61 and Altivar 71.extended I/O card, Altivar
Schneider Electric VW3A3202 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Discrete Input Frequency
- 0...30 kHz frequency control
- Discrete Input Voltage
- 24 V DC <= 30 V)programmable
- Discrete Output Voltage
- 24 V DC <= 30 V) assignable logic
- Electrical Connection
- terminal, 1.5 mm² / AWG 16, 0.25 N.m
- Electrical Durability
- 100000 cycles configurable relay logic
- Maximum Output Current
- 0.2 A, assignable logic
- Maximum Switching Current
- configurable relay logic 5 A 250 V AC resistive, cos phi = 1 || configurable relay logic 5 A 30 V DC resistive, cos phi = 1 || configurable relay logic 1.5 A 250 V AC inductive, cos phi = 0.4 7 ms || configurable relay logic 1.5 A 30 V DC inductive, cos phi = 0.4 7 ms
- Minimum Switching Current
- 3 mA 24 V DC configurable relay logic
- Net Weight
- 0.3 kg
- Ptc Probe Input
- TH2+, TH2- trip resistance 3 kOhm || TH2+, TH2- reset resistance 1.8 Ohm || TH2+, TH2- short circuit protection < 0.05 Ohm || TH2+, TH2- for 6 PTC probe <= 1.5 Ohm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2010015EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Analogue Input Number
- 2
- Analogue Input Type
- AI3-/Al3+ differential current programmable 0...20 mA 250 Ohm 4-6 ms 11 bits + sign || AI4 software-configurable current 0...20 mA 250 Ohm 4-6 ms 11 bits || AI4 software-configurable voltage 0...10 V DC, 24 V max 30000 Ohm 4-6 ms 11 bits
- Analogue Output Number
- 2
- Analogue Output Type
- AO2 software-configurable current 0...20 mA 500 Ohm 4-6 ms 10 bits || AO2 software-configurable voltage +/- 10 V DC 470 Ohm 4-6 ms 10 bits || AO3 software-configurable current 0...20 mA 500 Ohm 4-6 ms 10 bits || AO3 software-configurable voltage +/- 10 V DC 470 Ohm 4-6 ms 10 bits
- Discrete Input Logic
- negative LI11...LI14), >= 16 V, <= 10 V || positive LI11...LI14), <= 5 V, >= 11 V || positive RP), < 1.2 V, >= 3.5 V
- Discrete Input Number
- 6
- Discrete Input Type
- RP) frequency control 4-6 ms || LI11...LI14) programmable level 1 PLC 3.5 kOhm 4-6 ms
- Discrete Output Logic
- LO3, LO4) negative || LO3, LO4) positive
- Discrete Output Number
- 5
- Discrete Output Type
- LO3, LO4) assignable logic 4-6 ms level 1 PLC || R4A, R4B, R4C) configurable relay logic
- Product Or Component Type
- extended I/O card
- Range Compatibility
- Altivar 61Q || Altivar Lift || Altivar 71Q || Altivar 71 || Altivar 61
- Supply
- internal supply for reference potentiometer, 10.5 V DC 10-11 V) , <0.01 A 1-10 kOhm overload and short-circuit protection || internal supply, 24 V DC 21-27 V) , <0.2 A overload and short-circuit protection
