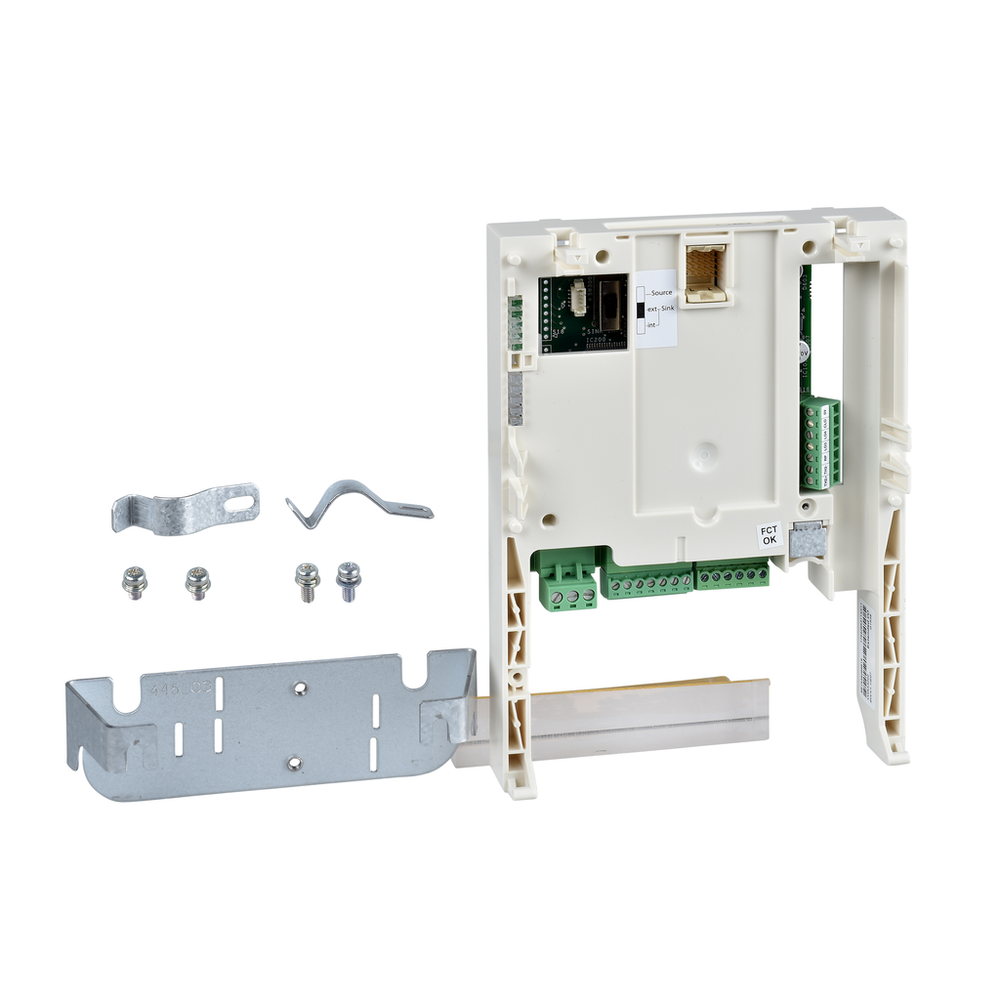

Schneider Electric VW3A3201

Complementary

• Discrete Input Voltage
  • 24 V DC <= 30 V)programmable
• Discrete Output Voltage
  • 24 V DC 12...30 V) assignable logic
• Electrical Connection
  • terminal, 1.5 mm² / AWG 16, 0.25 N.m
• Electrical Durability
  • 100000 cycles configurable relay logic
• Maximum Output Current
  • 0.2 A, assignable logic
• Maximum Switching Current
  • configurable relay logic 2 A 250 V AC inductive, cos phi = 0.4 7 ms || configurable relay logic 2 A 30 V DC inductive, cos phi = 0.4 7 ms || configurable relay logic 5 A 250 V AC resistive, cos phi = 1 || configurable relay logic 5 A 30 V DC resistive, cos phi = 1
• Minimum Switching Current
  • 3 mA 24 V DC configurable relay logic
• Net Weight
  • 0.3 kg
• Ptc Probe Input
  • TH1+, TH1- trip resistance 3 kOhm || TH1+, TH1- reset resistance 1.8 Ohm || TH1+, TH1- short circuit protection < 0.05 Ohm || TH1+, TH1- for 6 PTC probe <= 1.5 Ohm

Contractual warranty

• Warranty
  • 18 months

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Environmental Disclosure
  • ENVPEP2010015EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Discrete Input Logic
  • negative LI7...LI10), >= 16 V, <= 10 V || positive LI7...LI10), <= 5 V, >= 11 V
• Discrete Input Number
  • 4
• Discrete Input Type
  • LI7...LI10) programmable level 1 PLC 3.5 kOhm 1.5-2.5 ms
• Discrete Output Logic
  • LO1, LO2) negative || LO1, LO2) positive
• Discrete Output Number
  • 5
• Discrete Output Type
  • R3A, R3B, R3C) configurable relay logic || LO1, LO2) assignable logic 1.5-2.5 ms level 1 PLC
• Product Or Component Type
  • logic I/O card
• Range Compatibility
  • Altivar Lift || Altivar 71Q || Altivar 61 || Altivar 71 || Altivar 61Q
• Supply
  • internal supply for reference potentiometer, 10.5 V DC 10-11 V) , <0.01 A 1-10 kOhm overload and short-circuit protection || internal supply, 24 V DC 21-27 V) , <0.2 A overload and short-circuit protection
