Schneider Electric VW3A31404
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

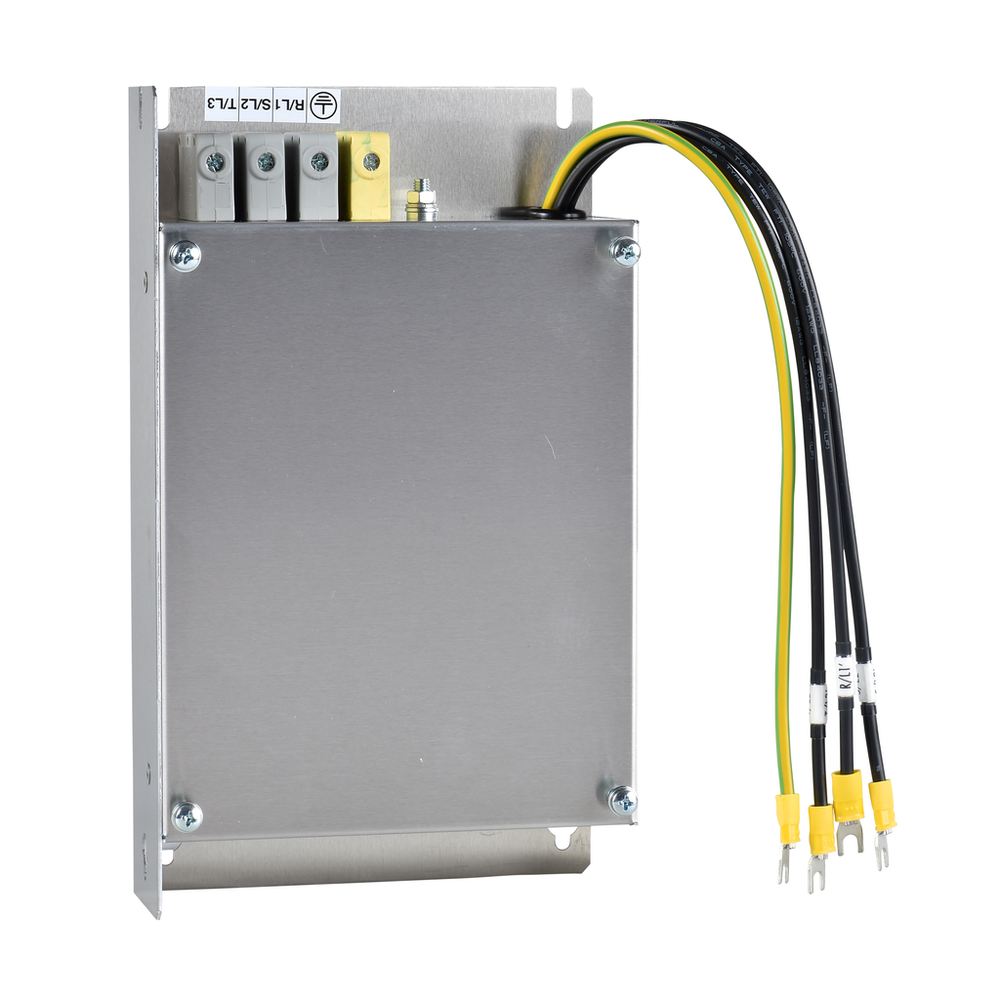

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 15A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.additionnal EMC input filter - 3-phase supply - 15 A
Schneider Electric VW3A31404 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Earth Leakage Current
- 15 mA 200...480 V 50 Hz || 13.8 mA 480 V 60 Hz || 6.7 mA 230 V 60 Hz
- Electrical Connection
- terminal 10 mm² AWG 6
- Net Weight
- 1 kg
- Network Rated Voltage
- 200-240 V || 380-500 V
- Tightening Torque
- 1.8 N.m
- Tolerance
- 10 %
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 || IP41 upper part)
- Operating Altitude
- <= 3280.84 ft (1000 m) without current derating || <= 3280.84 ft (1000 m) without derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
- Relative Humidity
- 0-93 % IEC 68-2-3
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Standards
- EN 133200
- Vibration Resistance
- 1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Line Rated Current
- 15 A
- Phase
- three phase
- Product Compatibility
- servo drive LXM230.75 kW || servo drive LXM231 kW || servo drive LXM231.5 kW || servo drive LXM232 kW || servo drive LXM233 kW || ATV212H075M3X || ATV212H075N4 || ATV212HU15M3X || ATV212HU15N4 || ATV212HU22M3X || ATV212HU22N4 || ATV31C037N4 || ATV31C055N4 || ATV31C075N4 || ATV31CU11N4 || ATV31CU15N4 || LXM05AD14N4 || LXM05AD17M3X || LXM05BD14N4 || LXM05BD17M3X || LXM05CD14N4 || ATV312HU11M3 || ATV312HU15M3 || ATV312HU22M3 || ATV312H037N4 || ATV312H055N4 || ATV312H075N4 || ATV312HU11N4 || ATV312HU15N4 || variable speed drive ATV320...C0.37 kW, 380...500 V three phase || variable speed drive ATV320...C0.55 kW, 380...500 V three phase || variable speed drive ATV320...C0.75 kW, 380...500 V three phase || variable speed drive ATV320...C1.1 kW, 380...500 V three phase || variable speed drive ATV320...C1.5 kW, 380...500 V three phase || variable speed drive ATV320...C1.1 kW, 200...240 V three phase || variable speed drive ATV320...C1.5 kW, 200...240 V three phase || variable speed drive ATV320...C2.2 kW, 200...240 V three phase || variable speed drive ATV320...W/ATV320...WS0.37 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS0.55 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS0.75 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS1.1 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS1.5 kW, 380...500 V three phase
- Product Or Component Type
- EMC input filter
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Altivar 31C || Lexium 23 Plus || Altivar 312 || Altivar 312 Solar || Altivar Machine ATV320 || Lexium 05 || Altivar 212
- Range Of Product
- Altivar
- Thermal Losses
- 0.13 W ATV21H075N4 || 0.45 W ATV21HU15N4 || 0.47 W ATV21H075M3X || 0.9 W ATV21HU22N4 || 1.6 W ATV21HU15M3X || 3.3 W ATV21HU22M3X || 9.9 W ATV31HU11M3X
