Description

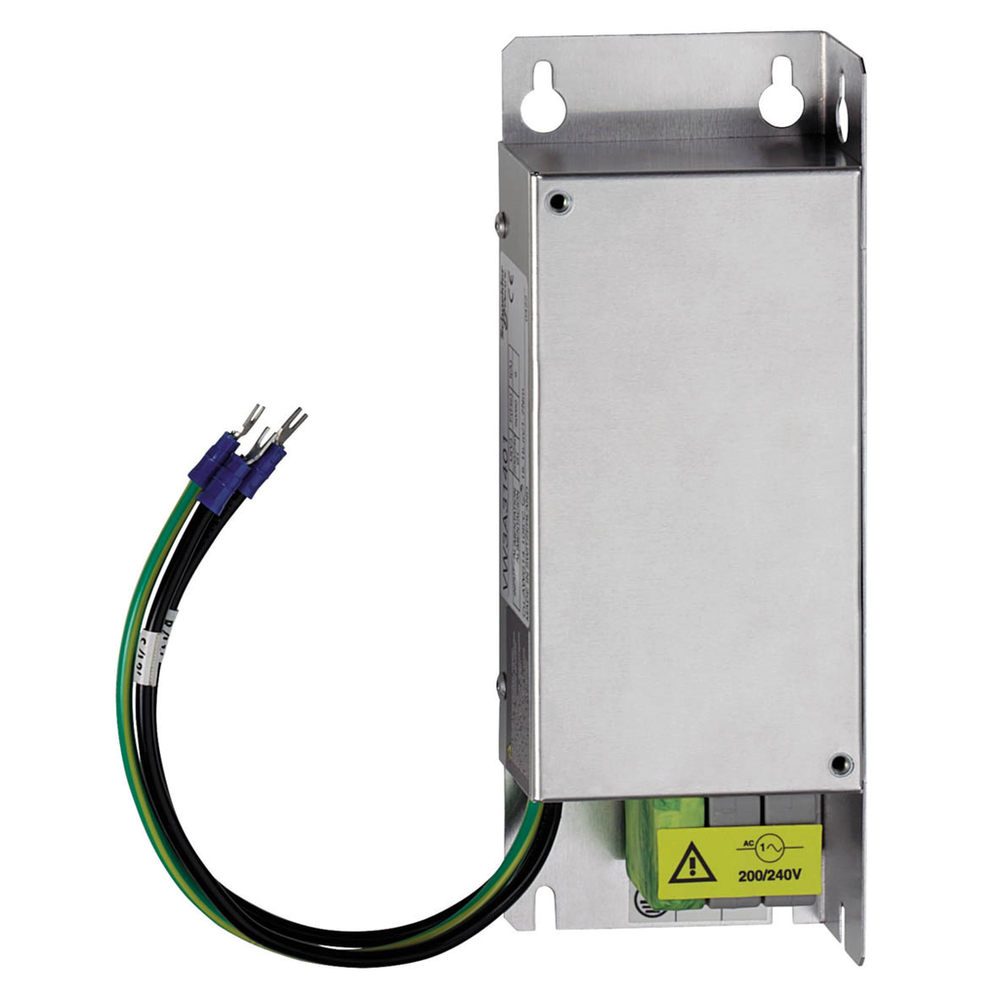

additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A
Schneider Electric VW3A31401 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Earth Leakage Current
- 100 mA 50 Hz
- Net Weight
- 0.6 kg
- Network Rated Voltage
- 200-240 V
- Tolerance
- 10 %
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 || IP41 upper part)
- Operating Altitude
- <= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
- Relative Humidity
- 0-93 % IEC 68-2-3
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Standards
- EN 133200
- Vibration Resistance
- 1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Line Rated Current
- 9 A
- Phase
- single phase
- Product Compatibility
- servo drive LXM230.1 kW || servo drive LXM230.2 kW || servo drive LXM230.4 kW || ATV312H018M2 || ATV312H037M2 || ATV312H055M2 || ATV312H075M2 || ATV31C018M2 || ATV31C037M2 || ATV31C055M2 || ATV31C075M2 || LXM05AD10F1 || LXM05AD10M2 || LXM05BD10F1 || LXM05BD10M2 || LXM05CD10M2 || variable speed drive ATV320...C0.18 kW, 200...240 V single phase || variable speed drive ATV320...C0.37 kW, 200...240 V single phase || variable speed drive ATV320...C0.55 kW, 200...240 V single phase || variable speed drive ATV320...C0.75 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS0.18 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS0.37 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS0.55 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS0.75 kW, 200...240 V single phase
- Product Or Component Type
- EMC input filter
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Lexium SD3 || Altivar 312 Solar || Lexium 23 Plus || Altivar Machine ATV320 || Altivar 312 || Altivar 31C || Lexium 05
- Range Of Product
- Altivar
- Thermal Losses
- 3.7 W ATV31C018M2
