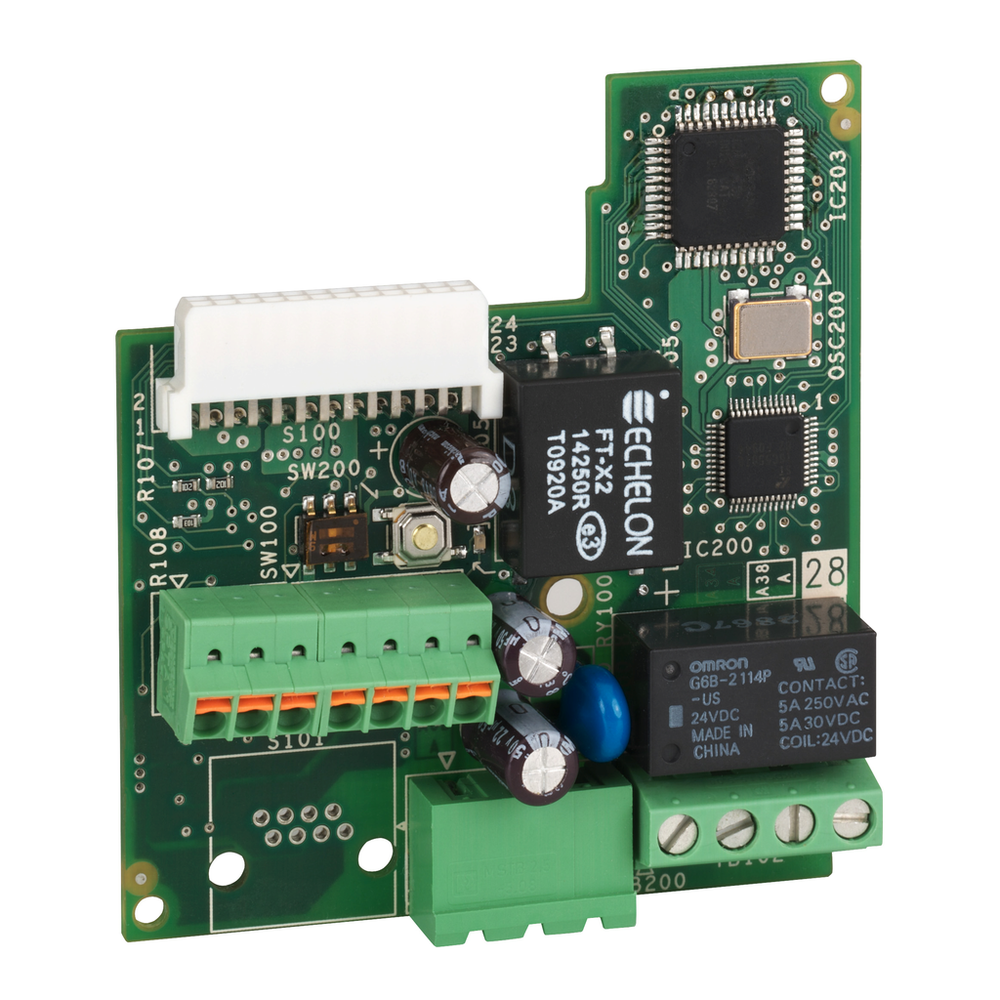

Schneider Electric VW3A21212

Complementary

• Electrical Connection
  • screw terminal NETA, NETB LonWorks transmission/reception data || screw terminal SHLD LonWorks communication shield || screw terminal G/E grounding terminal || spring terminal F programmable logic input || spring terminal R programmable contact input || spring terminal VIB multifunction programmable analog input || spring terminal CC control circuit equipotential || spring terminal P24 power supply output || screw terminal FLA, FLB, FLC multifunction programmable relay output
  • screw/spring terminal block
• Input Type
  • multifunction programmable logic input F < 24 V DC 5 mA sink or source || multifunction programmable contact input R < 24 V DC 5 mA sink or source || multifunction programmable analog input VIB 10 V DC 30 kOhm
• Net Weight
  • 0.05 kg
• Output Type
  • multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1 || multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4 || multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A || power supply output P24 24 V DC 50 mA

Contractual warranty

• Warranty
  • 18 months

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes

Specifications

• Communication Port Protocol
  • LonWorks
• Product Or Component Type
  • communication card
• Range Compatibility
  • Altivar 212
