Description

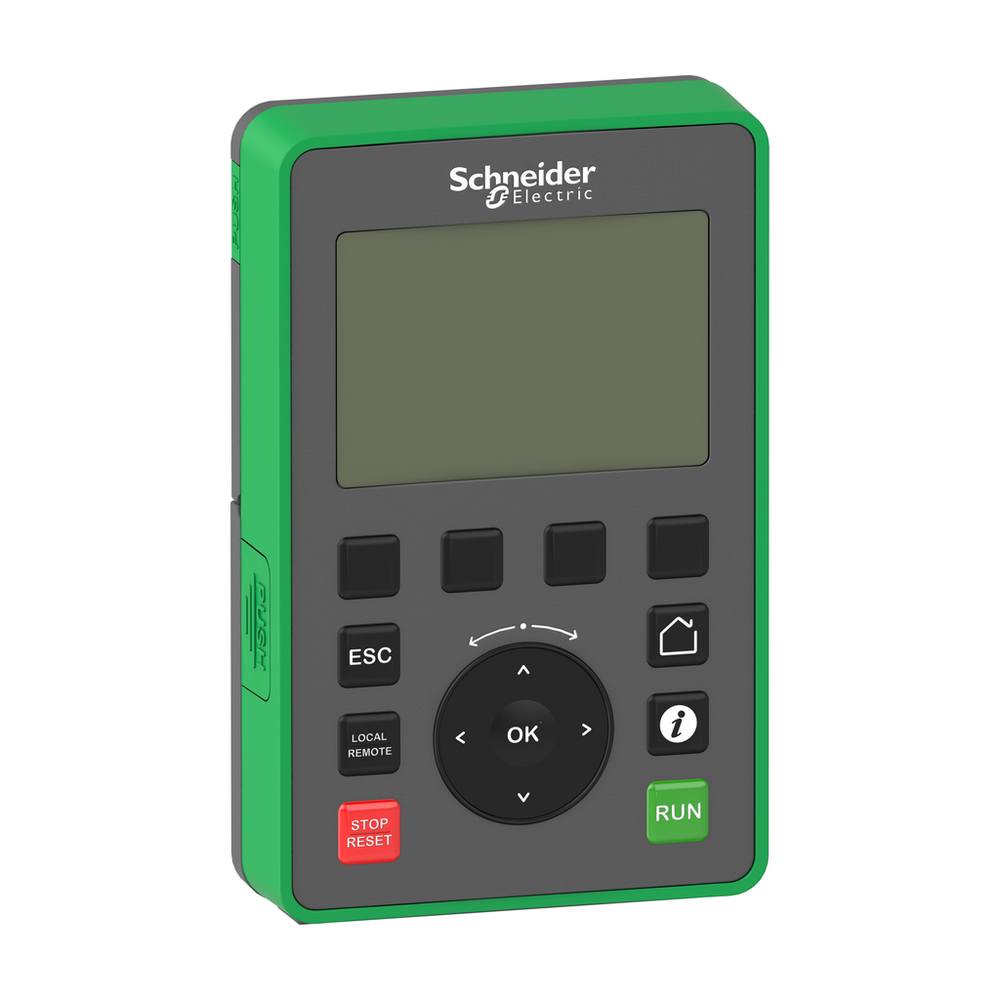

This graphic terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP65. This terminal can be connected and mounted on the front of the drive or on an enclosure door using a remote mounting accessory, it also can be connected to a PC to exchange files or to several drives in multidrop mode. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels and 8 lines of display. It weighs 200g. It provides 24 integrated languages (complete alphabets) covering the majority of countries around the world (other languages can be added). It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc.), save and download configurations (several configurations can be saved in the 16MB memory). A remote mounting kit for mounting on enclosure door with IP65 degree of protection is available as accessory, to be ordered separately.graphic display terminal, Altivar, 240 x 160 pixels, IP65
Schneider Electric VW3A1111 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Battery Life
- 10 year(s)
- Battery Size
- CR2032
- Display Type
- backlit LCD screen white and red
- Messages Display Capacity
- 8 lines
- Net Weight
- 0.2 kg
- Pixel Resolution
- 240 x 160
- Realtime Clock
- built-in
- User Language
- Spanish || Romanian || Turkish || Polish || Swedish || Estonian || Bulgarian || English || Russian || Greek || Danish || Hungarian || Chinese || Norwegian || Lituanien || French || Brazilian || German || Korean || Portuguese || Finnish || Czech || Slovak || Taiwanese || Dutch || Italian
Environment
- Ambient Air Temperature For Operation
- -15-50 °C
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2010012EN
- Environmental Disclosure
- ENVPEP2010012EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Accessory / Separate Part Category
- display and signalling accessories
- Accessory / Separate Part Destination
- variable speed drive
- Accessory / Separate Part Type
- display terminal
- Ip Degree Of Protection
- IP65
- Product Specific Application
- to control, adjust and configure the drive || to save and download configurations || to display the current values
- Range Compatibility
- Altivar Process ATV900 || Altivar Process ATV600 || Altivar Machine ATV340
- Range Of Product
- Altivar
