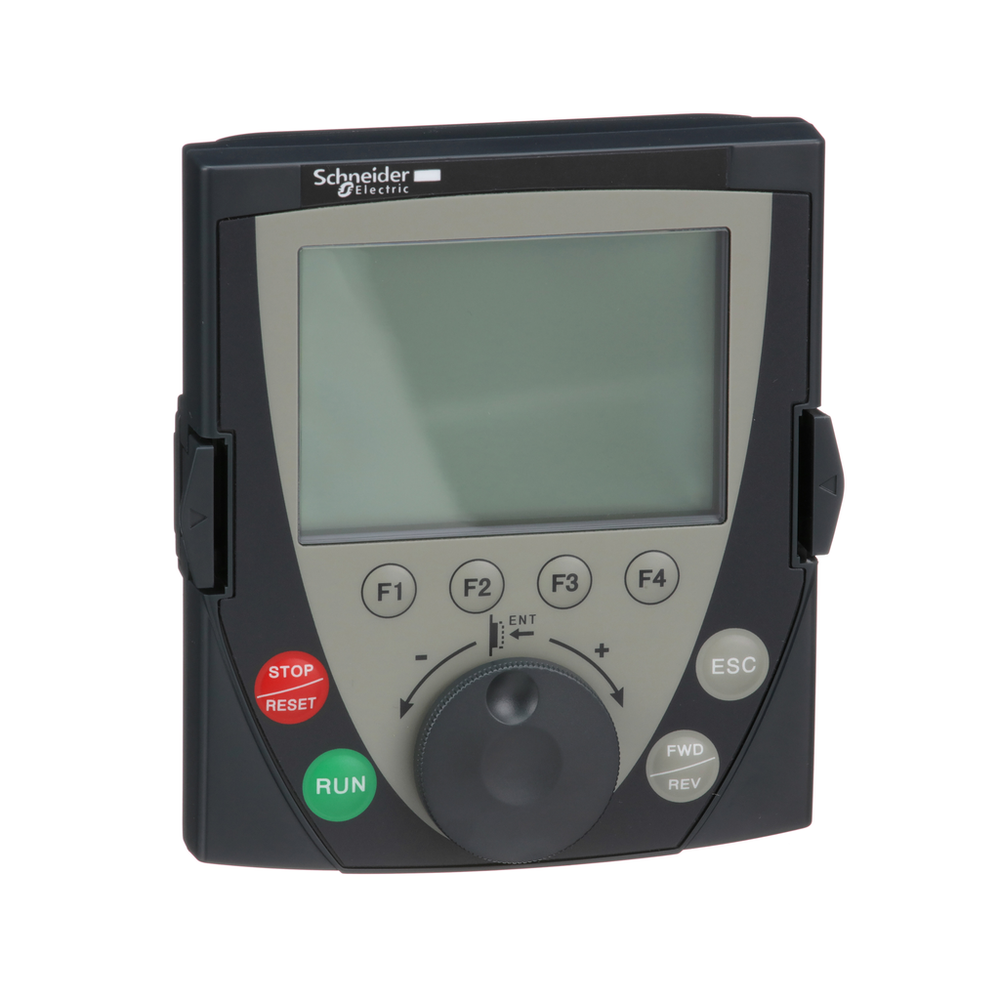

Schneider Electric VW3A1101
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Altivar 71 Variable Frequency Drives are for constant torque applications from 1 to 700 HP. For the latest in high performance drives for heavy duty applications consider using an Altivar Process ATV900 family drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels. It weighs 180g. It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc), save and download configurations, 4 configuration files can be saved. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.remote graphic terminal, Altivar, 240 x 160 pixels, IP54
Schneider Electric VW3A1101 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Messages Display Capacity
- 8 lines
- Mounting Location
- on the door of an enclosure
- Net Weight
- 0.145 kg
- Pixel Resolution
- 240 x 160
- User Language
- Italian || English || French || Spanish || German || Chinese
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -15-50 °C
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2010007EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Accessory / Separate Part Category
- display and signalling accessories
- Accessory / Separate Part Destination
- variable speed drive
- Accessory / Separate Part Type
- display terminal
- Ip Degree Of Protection
- IP54
- Product Specific Application
- to control, adjust and configure the drive || to save and download configurations || to display the current values
- Range Compatibility
- Altivar 312 || Altivar 61 || Altivar Lift || Altivar 32 || Altivar Machine ATV320 || Altivar 312 Solar || Altivar 212 || Altivar 71 || Altivar 61Q || Altivar 71Q
- Range Of Product
- Altivar
