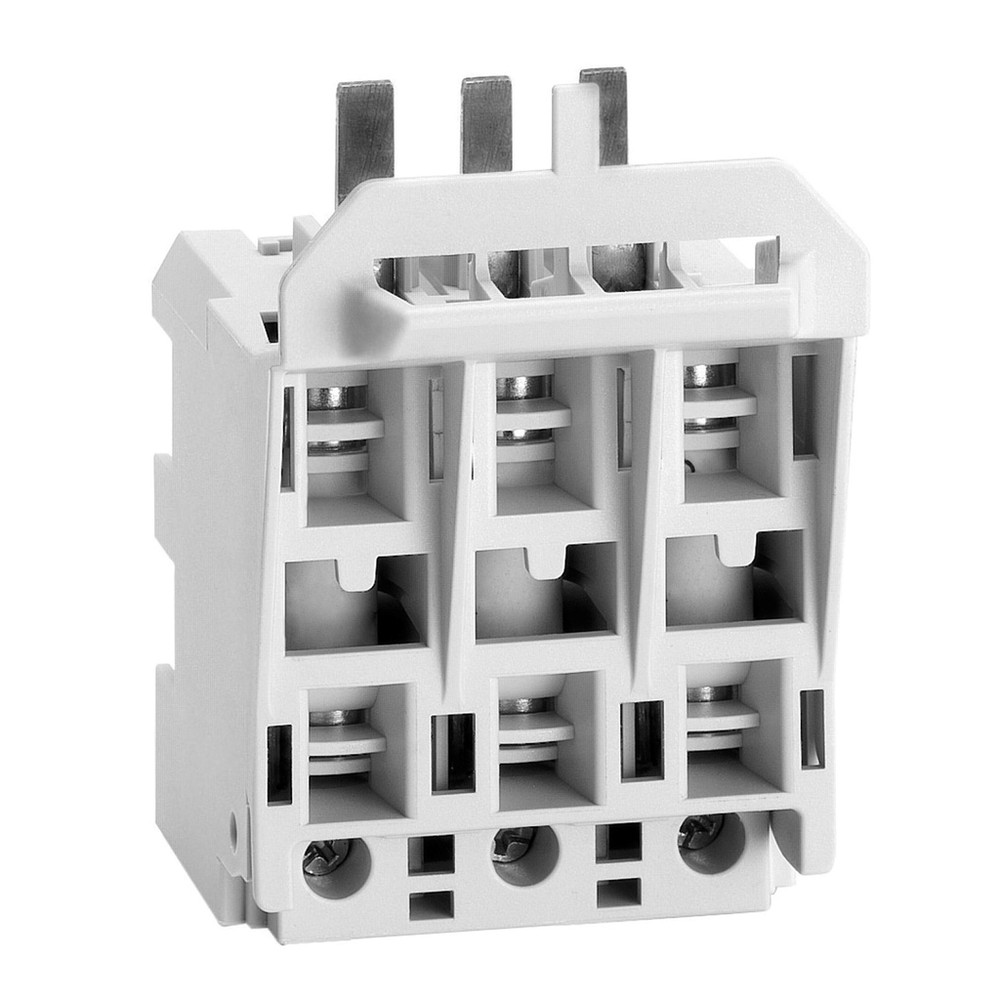

Schneider Electric VLSFH1UL
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fuse holder block is suitable for Class CC fuses. This fuse holder block can be used with a VLS3P016R1, VLS3P025R1 or VLS3P032R1 DIN rail mount disconnect switch. Fuse holder has a UL rating of 30 A at 600VAC 50/60 Hz. This protective terminal cover is 2.96 inches tall, 2.07 inches wide and 3.15 inches deep. The switch weighs 0.30 lbs. This fuse holder is cULus Listed and meets IEC 60947-3 requirements.Disconnect switch, TeSys VLS, CC fuse holder, for 3 pole disconnect switch, for up to 25A fuse
Schneider Electric VLSFH1UL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible without cable end
- Depth
- 80.1 mm
- Height
- 75.2 mm
- [Ith] Conventional Free Air Thermal Current
- 25 A 55 °C
- Mounting Support
- DIN rail
- Net Weight
- 0.135 kg
- Network Frequency
- 50/60 Hz
- Tightening Torque
- power circuit 1.8-2 N.m screw clamp terminals
- [Ui] Rated Insulation Voltage
- 690-690 V AC 50/60 Hz
- Width
- 52.5 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ip Degree Of Protection
- IP20 IEC 60529
- Product Certifications
- cULus || GL
- Standards
- UL 508 || CSA C22.2 No 14 || IEC 60947-3
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Short Name
- VLSFH
- Fuse Size
- CC
- Network Type
- AC
- Poles Description
- 3P
- Product Name
- TeSys VARIO LS
- Product Or Component Type
- fuse holder
- Range
- TeSys
