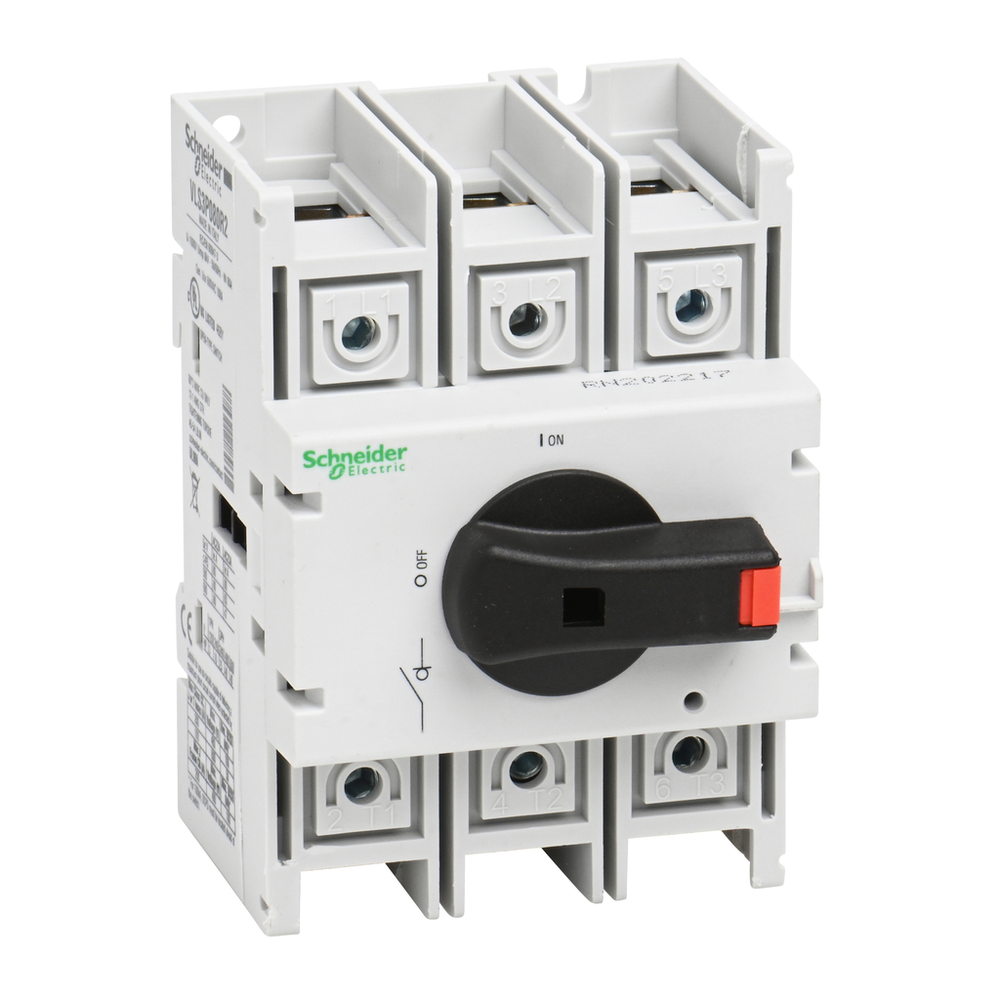

Schneider Electric VLS3P080R2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 80A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 3 HP rating at 120 VAC and a 10 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 25HP rating at 200 to 208 VAC and 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 50 kA at 600 V short circuit current rating (SCCR) with a 100A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 45 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept from 12 AWG to 1 AWG wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.Disconnect switch, TeSys VLS, body switch, 80A, 40HP at 480VAC, UL98, three phase, 50kA SCCR, size 2, DIN rail mount
Schneider Electric VLS3P080R2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 120 A 690 V AC-21A) || 240 A 690 V AC-22A) || 640 A 690 V AC-23A)
- Color
- Gray
- Connections - Terminals
- power circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end
- Contacts Type And Composition
- 3 NO
- Control Type
- rotary handle
- Depth
- 100 mm
- Device Composition
- handle || switch
- Electrical Durability
- 30000 cycles AC-21
- Fixing Mode
- by clips back
- Handle Colour
- black
- Handle Front Plate Colour
- grey
- Height
- 75 mm
- [Icm] Rated Short-Circuit Making Capacity
- 3550 A 690 V
- [Icw] Rated Short-Time Withstand Current
- 2500 A 690 V 1 s
- [Ie] Rated Operational Current
- 100 A Ue: 600 V UL98 || 80 A AC-21A Ue: 400 V || 80 A AC-21A Ue: 500 V || 80 A AC-21A Ue: 690 V || 80 A AC-22A Ue: 400 V || 80 A AC-22A Ue: 500 V || 80 A AC-22A Ue: 690 V || 80 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V
- Intermittent Duty Class
- class 120 - 60 %
- [Ith] Conventional Free Air Thermal Current
- 80 A 55 °C
- [Ithe] Conventional Enclosed Thermal Current
- 80 A
- Making Capacity
- 120 A 690 V AC-21A || 240 A 690 V AC-22A || 800 A 690 V AC-23A
- Marking
- 0 - 1
- Mechanical Durability
- 30000 cycles
- Mounting Support
- back DIN rail
- Net Weight
- 0.365 kg
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Performance Level
- high performance
- Poles Description
- 3P
- Rated Conditional Short-Circuit Current
- 50 kA 400 V 80 A gG
- Rated Operational Power In W
- 45 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)
- Rotary Handle Mounting Style
- direct
- Rotary Handle Padlocking
- 1 padlock 4-4 mm
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 5-6 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- 600 V AC 50/60 Hz UL 508
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Width
- 70 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Compatibility Code
- VLS
- Fire Resistance
- 960 °C IEC 60695-2-11
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Product Certifications
- cULus || GL
- Standards
- UL98 || CSA C22.2 No 4 || IEC 60947-3
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Short Name
- VLS3P
- Product Name
- TeSys VARIO LS
- Product Or Component Type
- switch body
- Range
- TeSys
