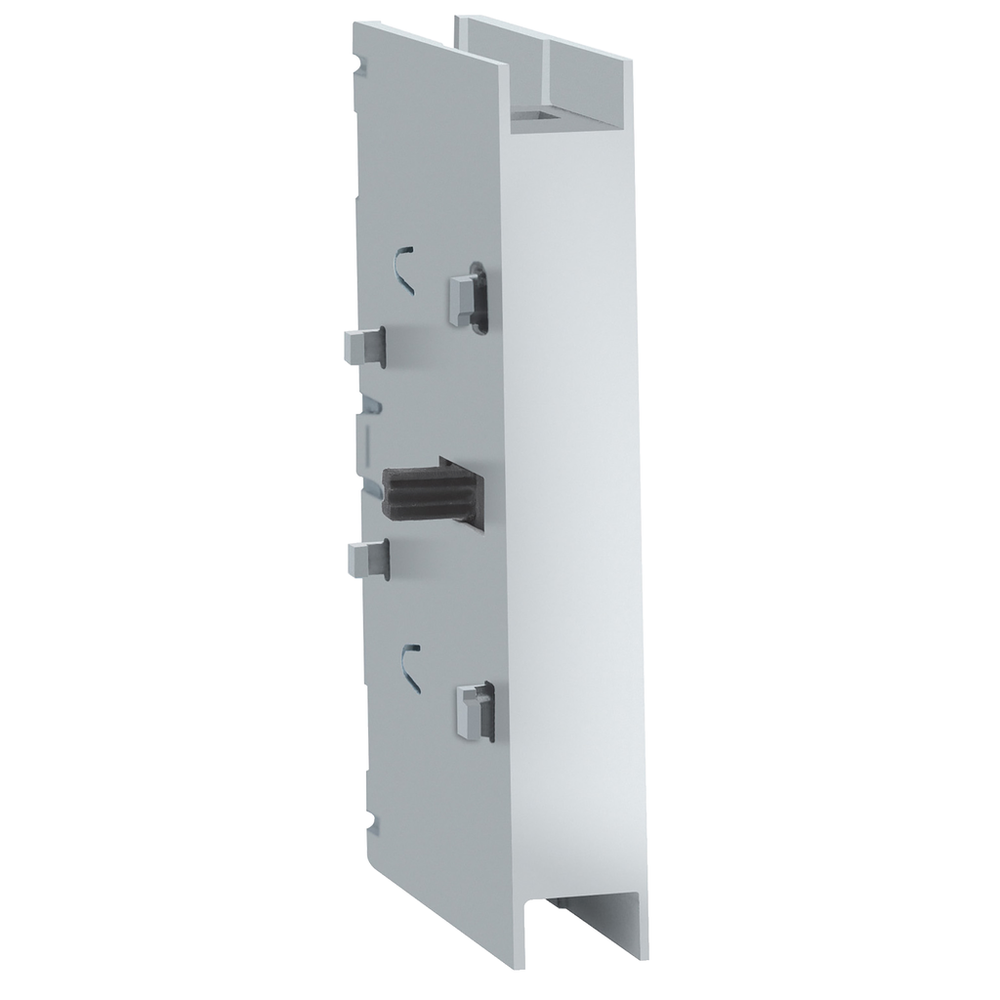

Schneider Electric VLS1P080D2S
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fourth pole adder can be added to a VLS3P080D2 door mount switch. This fourth pole adder for door mounted devices can be mounted on the right or left hand side. This simultaneous closing adder pole has one normally open contact The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz. This fourth pole adder module has a 100 A current rating. Fourth pole adder pole is 3.94 inches tall, 0.91 inches wide and 1.91 inches deep. It weighs 0.24 lbs. This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.Disconnect switch, TeSys VLS, additional pole, 80A, for 80A switch, size 2, door mount
Schneider Electric VLS1P080D2S is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 120 A 690 V AC-21A) || 240 A 690 V AC-22A) || 640 A 690 V AC-23A)
- Color
- Gray
- Connections - Terminals
- power circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end
- Depth
- 48.6 mm
- Electrical Durability
- 30000 cycles AC-21
- Height
- 100 mm
- [Icm] Rated Short-Circuit Making Capacity
- 3550 A 690 V
- [Icw] Rated Short-Time Withstand Current
- 2500 A 690 V 1 s
- [Ie] Rated Operational Current
- 100 A Ue: 600 V UL98 || 80 A AC-21A Ue: 400 V || 80 A AC-21A Ue: 500 V || 80 A AC-21A Ue: 690 V || 80 A AC-22A Ue: 400 V || 80 A AC-22A Ue: 500 V || 80 A AC-22A Ue: 690 V || 80 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V
- Intermittent Duty Class
- class 120 - 60 %
- [Ith] Conventional Free Air Thermal Current
- 80 A 55 °C
- [Ithe] Conventional Enclosed Thermal Current
- 80 A
- Making Capacity
- 120 A 690 V AC-21A || 240 A 690 V AC-22A || 800 A 690 V AC-23A
- Mechanical Durability
- 30000 cycles
- Mounting Location
- right || left
- Mounting Support
- door
- Net Weight
- 0.11 kg
- Rated Conditional Short-Circuit Current
- 50 kA 400 V 80 A gG
- Rated Operational Power In W
- 45 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)
- Tightening Torque
- power circuit 5-6 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Width
- 23 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Fire Resistance
- 960 °C IEC 60695-2-11
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Product Certifications
- cULus || GL
- Standards
- UL98 || CSA C22.2 No 4 || IEC 60947-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Contact Operation
- simultaneous
- Contacts Type And Composition
- 1 NO
- Device Short Name
- VLS1P
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Performance Level
- high performance
- Poles Description
- 1P
- Product Or Component Type
- additional pole
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys VARIO LS) VLS3P
- Suitability For Isolation
- yes
