Schneider Electric VCFN20GE
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

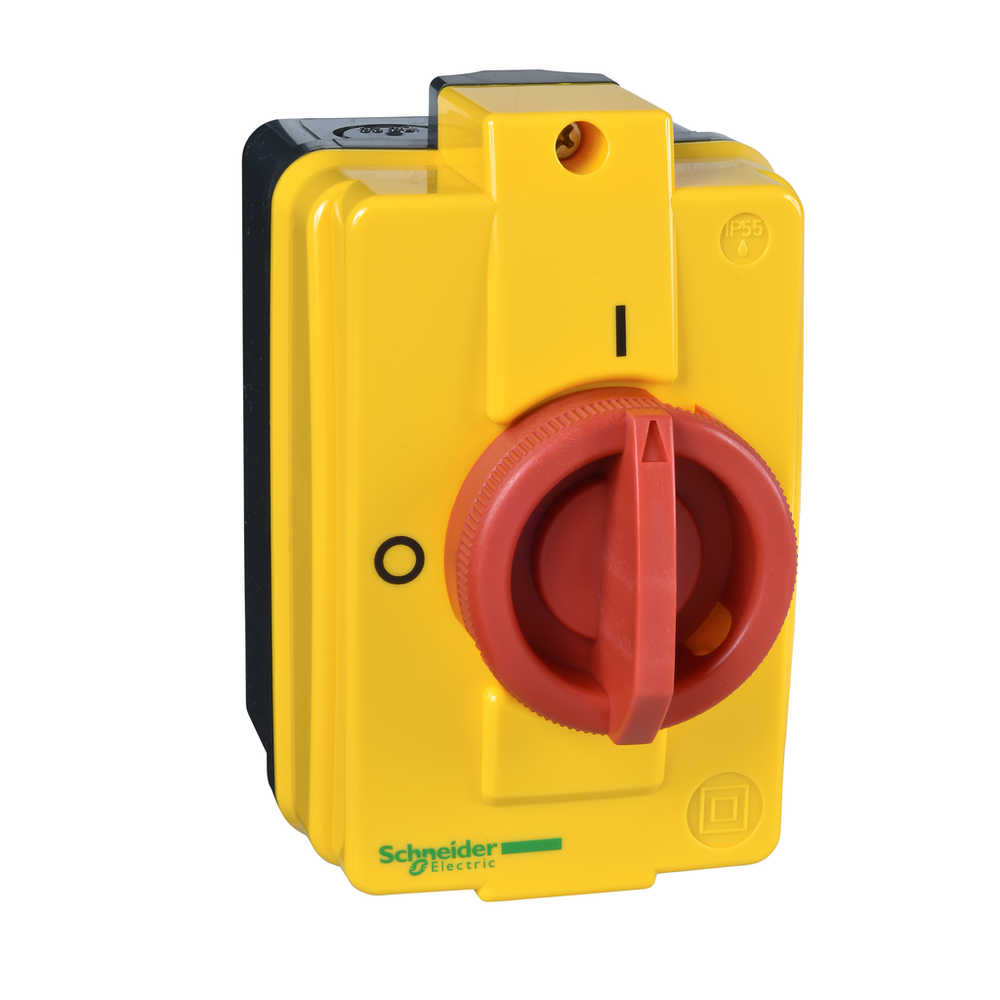

VCFN20GE is a direct-on-line TeSys enclosed starter from Schneider Electric. Enclosure fitted with a yellow cover, red padlockable rotary handle, and a 3-pole VN20 switch body with 2 possible add-on module attachments. Rated The 16A 690V, it is used for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. Cabling through 2 cable glands on top and bottom, it provides IP55 protection. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).Enclosed switch disconnector,TeSys Control,for ON/emergency stop,16A,IP65,compact size
Schneider Electric VCFN20GE is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Base Dimension
- 60 x 60 mm
- Breaking Capacity
- 200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A)
- Connections - Terminals
- control circuit connector 4-4 mm² flexible with cable end || control circuit connector 4-4 mm² solid
- Depth
- 106 mm
- Electrical Durability
- 30000 cycles DC-1...5 || 50000 cycles AC-21
- Fire Resistance
- 960 °C IEC 60595-2-1
- Height
- 131 mm
- [Icm] Rated Short-Circuit Making Capacity
- 0.5 kA 400 V at Ipeak
- [Icw] Rated Short-Time Withstand Current
- 140 A 400 V 1 s
- [Ie] Rated Operational Current
- 11 A AC-23A)400 V
- Intermittent Duty Class
- 30
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- Making Capacity
- 200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A
- Marking
- 0 - 1
- Mechanical Durability
- 50000 cycles
- Net Weight
- 0.422 kg
- Rated Conditional Short-Circuit Current
- 6 kA 400 V 20 A aM || 6 kA 400 V 20 A gG
- Rated Operational Power In W
- 5.5 kW 400 V AC-23) || 4 kW 400 V AC-3)
- Suitability For Isolation
- yes
- Tightening Torque
- control circuit 0.7-0.7 N.m connector
- [Ue] Rated Operational Voltage
- 690 V AC
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Width
- 82.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Protective Treatment
- TC
- Standards
- IEC 60947-4-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP111273EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Type
- rotary handle
- Device Short Name
- VCFN
- Handle Colour
- red
- Handle Front Plate Colour
- yellow
- Performance Level
- standard
- Poles Description
- 3P
- Product Name
- TeSys Mini-VARIO
- Product Or Component Type
- emergency stop switch disconnector
- Range
- TeSys
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
