Description

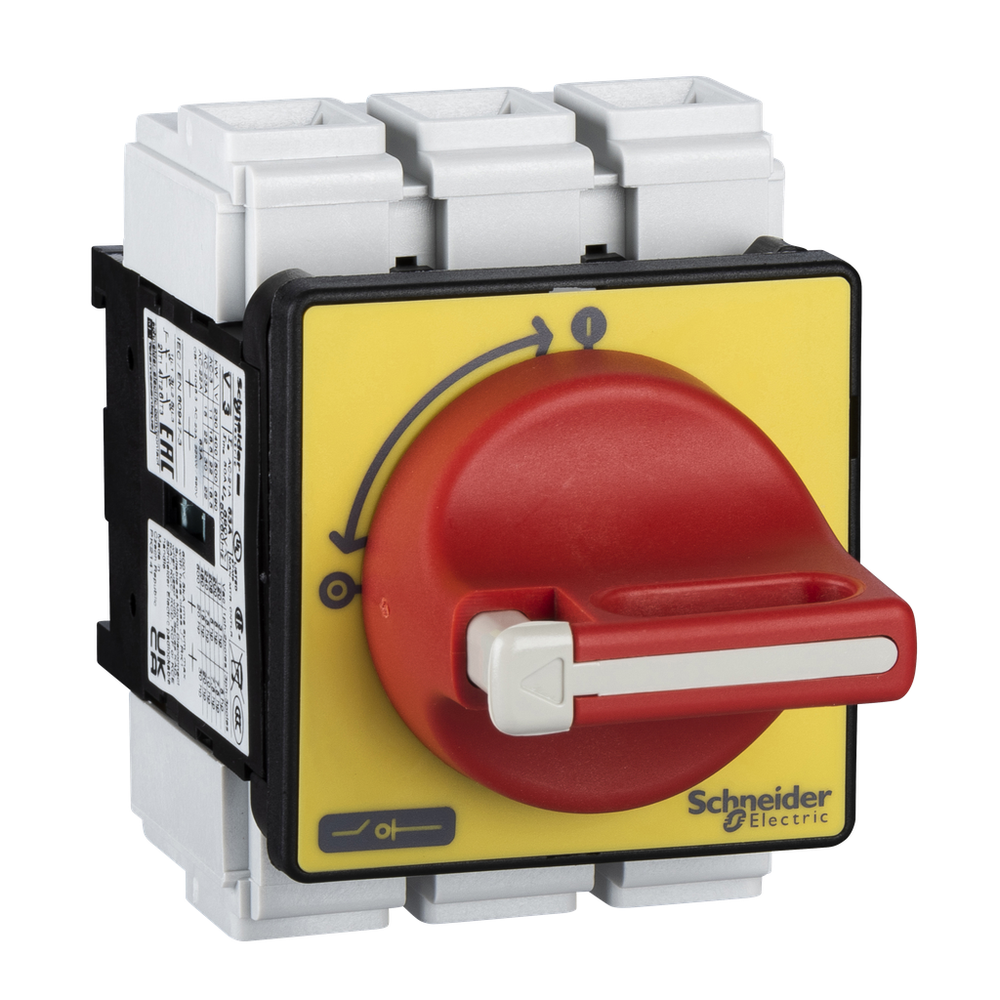

VCF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 22kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 22kW@400V AC-23. It consists of a V3 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V3 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).Switch disconnector,TeSys Control,for ON/emergency stop,63A,4 screws fixing,for mounting on door
Schneider Electric VCF3 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Base Dimension
- 60 x 60 mm
- Breaking Capacity
- 500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)
- Connections - Terminals
- power circuit screw clamp terminals 25-25 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - with cable end
- Contacts Type And Composition
- 3 NO
- Control Type
- rotary handle
- Device Composition
- switch || handle
- Electrical Durability
- 30000 cycles AC-21 || 30000 cycles DC-1...5
- Fixing Mode
- by 4 screws handle
- Handle Colour
- red
- Handle Front Plate Colour
- yellow
- Height
- 83 mm
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- [Icw] Rated Short-Time Withstand Current
- 756 A 400 V 1 s
- [Ie] Rated Operational Current
- 41.5 A AC-23 Ue: 400 V
- Intermittent Duty Class
- 30
- [Ith] Conventional Free Air Thermal Current
- 63 A
- [Ithe] Conventional Enclosed Thermal Current
- 50 A
- Making Capacity
- 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
- Marking
- 0 - 1
- Mechanical Durability
- 30000 cycles
- Mounting Support
- handle door || switch door
- Net Weight
- 0.56 kg
- Network Type
- DC || AC
- Performance Level
- high performance
- Poles Description
- 3P
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG
- Rated Operational Power In W
- 11 kW 230...240 V AC-3) || 22 kW 500 V AC-3) || 22 kW 690 V AC-23A) || 30 kW 500 V AC-23A) || 18.5 kW 400...415 V AC-3) || 18.5 kW 690 V AC-3) || 15 kW 230...240 V AC-23A) || 22 kW 400...415 V AC-23A)
- Rotary Handle Mounting Style
- direct
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Width
- 60 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Compatibility Code
- main switch disconnector
- Fire Resistance
- 960 °C IEC 60695-2-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP65
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Product Certifications
- GL || CCC || CSA || UL || UKCA
- Protective Treatment
- TC
- Standards
- IEC 60947-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110227EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- VCF
- Product Name
- TeSys VARIO
- Product Or Component Type
- emergency stop switch disconnector
- Range
- TeSys
