Schneider Electric VCF1GE
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

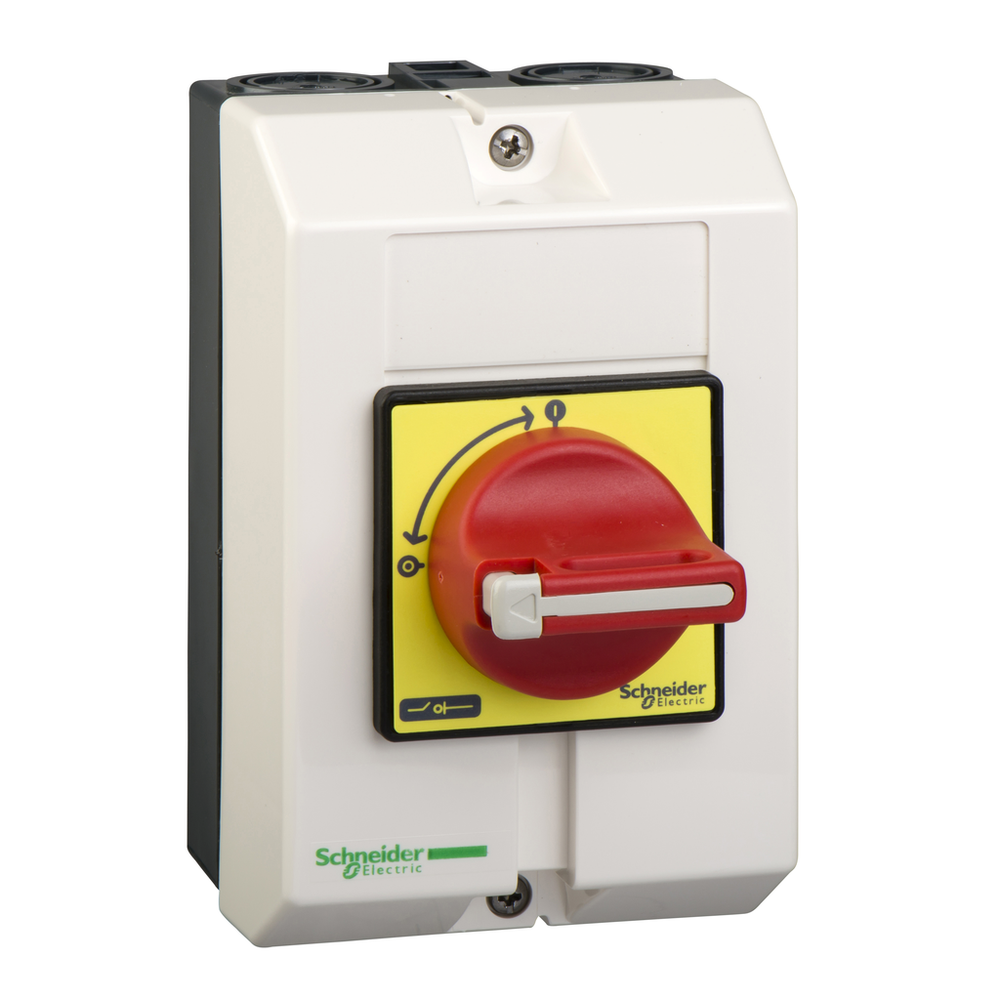

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 25A 690V, for main and emergency stop switching in motor applications AC-23 up to 11kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V1 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).Enclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,IP65
Schneider Electric VCF1GE is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Base Dimension
- 60 x 60 mm
- Breaking Capacity
- 250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)
- Connections - Terminals
- screw clamp terminals 10-10 mm² solid || screw clamp terminals 6-6 mm² flexible - with cable end
- Depth
- 131 mm
- Electrical Durability
- 100000 cycles AC-21 || 30000 cycles DC-1...5
- Environmental Characteristic
- standard environment
- Fire Resistance
- 960 °C IEC 60595-2-1
- Height
- 146 mm
- [Icm] Rated Short-Circuit Making Capacity
- 1 kA 400 V at Ipeak
- [Icw] Rated Short-Time Withstand Current
- 384 A 400 V 1 s
- [Ie] Rated Operational Current
- 21.8 A AC-23A)400 V
- Intermittent Duty Class
- 30
- [Ithe] Conventional Enclosed Thermal Current
- 25 A
- Making Capacity
- 320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A
- Marking
- 0 - 1
- Mechanical Durability
- 100000 cycles
- Net Weight
- 0.5 kg
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG
- Rated Operational Power In W
- 11 kW 400 V AC-23) || 7.5 kW 400 V AC-3)
- Suitability For Isolation
- yes
- Tightening Torque
- 2.1-2.1 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Width
- 90 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Protective Treatment
- TC
- Standards
- IEC 60204 || IEC 60947-4-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111273EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Type
- rotary handle
- Device Short Name
- VCF
- Handle Colour
- red
- Handle Front Plate Colour
- yellow
- Performance Level
- high performance
- Poles Description
- 3P
- Product Name
- TeSys VARIO
- Product Or Component Type
- enclosed emergency stop switch disconnector
- Range
- TeSys
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
