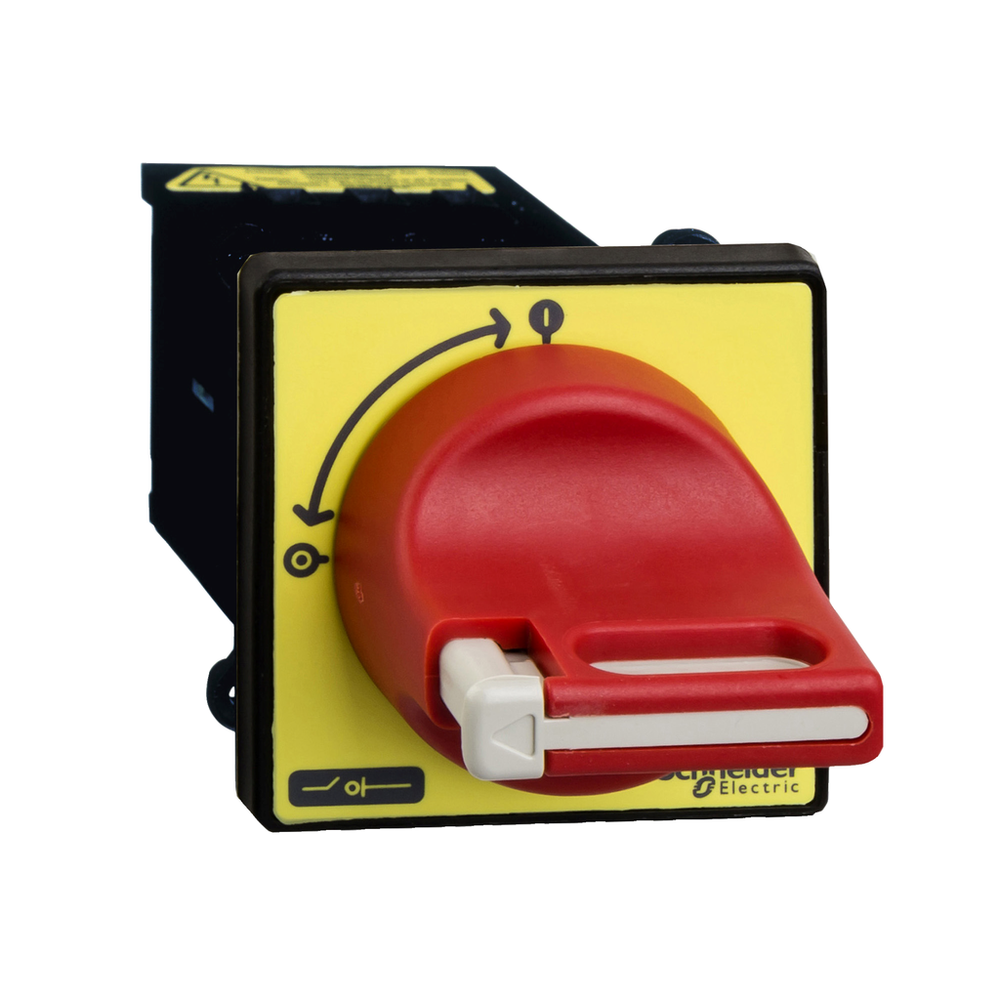

Schneider Electric VCDN20
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
VCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 5.5kW@400V AC-23. For enclosure door mounting, it provides a red & yellow operator/yellow plate with IP65 protection. VCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body and a padlockable red & yellow operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body VZ20 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting on door
Schneider Electric VCDN20 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Base Dimension
- 60 x 60 mm
- Breaking Capacity
- 200 kA 400 V AC-21A) || 200 kA 400 V AC-22A) || 200 kA 400 V AC-23A)
- Connections - Terminals
- power circuit screw clamp terminals 4-4 mm² flexible - with cable end || power circuit screw clamp terminals 4-4 mm² solid
- Device Composition
- handle || switch
- Electrical Durability
- 30000 cycles DC-1...5 || 50000 cycles AC-21
- Fixing Mode
- hole 22.5 mm handle
- Height
- 60 mm
- [Icm] Rated Short-Circuit Making Capacity
- 0.5 kA 400 V at Ipeak
- [Icw] Rated Short-Time Withstand Current
- 140 A 400 V 1 s
- [Ie] Rated Operational Current
- 11 A AC-23)400 V
- Intermittent Duty Class
- 30
- [Ith] Conventional Free Air Thermal Current
- 20 A
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- Making Capacity
- 200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A
- Marking
- 0 - 1
- Mechanical Durability
- 50000 cycles
- Mounting Support
- handle door || switch door
- Net Weight
- 0.177 kg
- Rated Conditional Short-Circuit Current
- 6 kA 400 V 20 A aM || 6 kA 400 V 20 A gG
- Rated Operational Power In W
- 4 kW 230...240 V AC-23A) || 5.5 kW 400...415 V AC-23A) || 7.5 kW 500 V AC-23A) || 11 kW 690 V AC-23A) || 3 kW 230...240 V AC-3) || 4 kW 400...415 V AC-3) || 5.5 kW 500 V AC-3) || 5.5 kW 690 V AC-3)
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 0.7-0.7 N.m screw clamp terminals
- Width
- 60 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ip Degree Of Protection
- IP65
- Mechanical Robustness
- shocks 11 ms 15 gn) IEC 60068-2-27 || vibrations 10...150 Hz 1 gn) IEC 60068-2-6
- Product Certifications
- GL || CSA || UL || CCC || UKCA
- Protective Treatment
- TC
- Standards
- IEC 60947-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110227EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 3 NO
- Control Type
- rotary handle
- Device Short Name
- VCDN
- Handle Colour
- red
- Handle Front Plate Colour
- yellow
- Network Type
- DC || AC
- Performance Level
- standard
- Poles Description
- 3P
- Product Name
- TeSys Mini-VARIO
- Product Or Component Type
- emergency stop switch disconnector
- Range
- TeSys
- Rotary Handle Mounting Style
- direct
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
