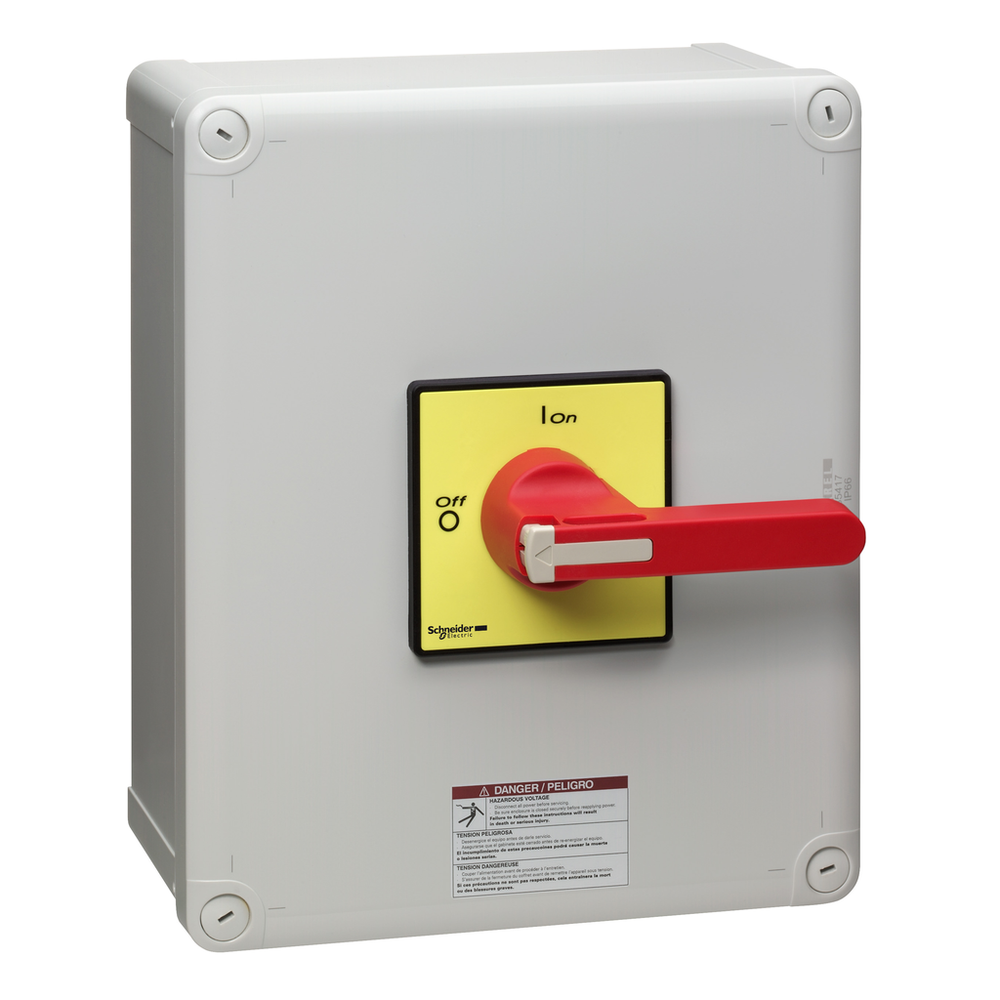

Schneider Electric VC5GUN
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
VC5GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 50HP@600V. It provides an IP65 / NEMA type 12 enclosure, V5 Vario switch disconnector and red & yellow operator. VC5GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 50HP@600V. It includes a V5 Vario switch disconnector rated 100A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V5 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating long red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 1 add-on pole to the switch body , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20).Enclosed switch disconnector,TeSys Control,for ON/emergency stop,100A,conforming UL/CSA standard,long handle
Schneider Electric VC5GUN is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Base Dimension
- 90 x 90 mm
- Breaking Capacity
- 1000 A 400 V AC-21A) || 1000 A 400 V AC-22A) || 1000 A 400 V AC-23A)
- Connections - Terminals
- screw clamp terminals 95-95 mm² solid - with cable end || screw clamp terminals 70-70 mm² flexible
- Depth
- 191 mm
- Electrical Durability
- 30000 cycles AC-21 || 30000 cycles DC-1...5
- Environmental Characteristic
- standard environment
- Fire Resistance
- 960 °C IEC 60595-2-1
- Height
- 291 mm
- [Icm] Rated Short-Circuit Making Capacity
- 2.8 kA 400 V at Ipeak
- [Icw] Rated Short-Time Withstand Current
- 1500 A 400 V 1 s
- [Ie] Rated Operational Current
- 68.5 A AC-23A)400 V
- Intermittent Duty Class
- 30
- [Ithe] Conventional Enclosed Thermal Current
- 100 A
- 100.0 A IEC 690 V || 100 A UL 600 V
- Making Capacity
- 1250 A 400 V AC-21A || 1250 A 400 V AC-22A || 1250 A 400 V AC-23A
- Marking
- 0 - 1
- Mechanical Durability
- 30000 cycles
- Net Weight
- 2.19 kg
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 125 A aM || 10 kA 400 V 125 A gG
- Rated Operational Power In W
- 37 kW 400 V AC-23) || 30 kW 400 V AC-3)
- Rated Power In Hp
- 25 hp 240 V, UL || 50 hp 480 V, UL || 50 hp 600 V, UL
- Suitability For Isolation
- yes
- Tightening Torque
- 22.6-22.6 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Width
- 241 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Nema Degree Of Protection
- NEMA 12
- Protective Treatment
- TC
- Standards
- IEC 60947-4-1 || CSA C22.2 No 14 || UL 508 || IEC 60204
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111273EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Type
- rotary handle
- Device Short Name
- VC-GUN
- Handle Colour
- red
- Handle Front Plate Colour
- yellow
- Performance Level
- high performance
- Poles Description
- 3P
- Product Name
- TeSys VARIO
- Product Or Component Type
- enclosed emergency stop switch disconnector
- Range
- TeSys
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
