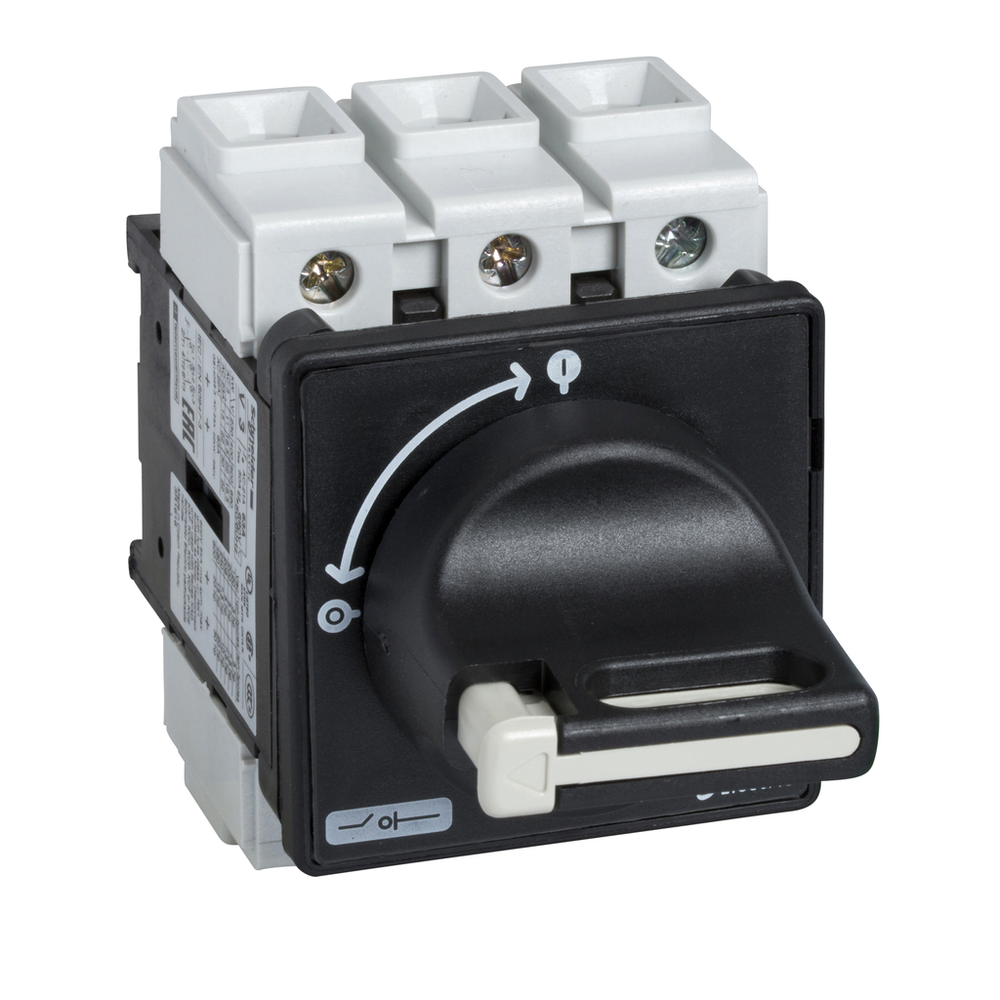

Schneider Electric VBF1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
VBF1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 11KW@400V AC-23. For door mounting with 4 screw fixing, it provides a black & grey operator with IP65 protection. VBF1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 11KW@400V AC-23. It consists of a V1 Vario switch body and a padlockable black & grey operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V1 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ1), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).Switch disconnector,TeSys Control,for ON/OFF,32A,4 screws fixing,for mountingfor mounting on door
Schneider Electric VBF1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Base Dimension
- 60 x 60 mm
- Breaking Capacity
- 250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- Contacts Type And Composition
- 3 NO
- Control Type
- rotary handle
- Device Composition
- handle || switch
- Electrical Durability
- 100000 cycles AC-21 || 30000 cycles DC-1...5
- Fixing Mode
- by 4 screws handle
- Handle Colour
- black
- Handle Front Plate Colour
- black
- Height
- 74 mm
- [Icm] Rated Short-Circuit Making Capacity
- 1 kA 400 V at Ipeak
- [Icw] Rated Short-Time Withstand Current
- 384 A 400 V 1 s
- [Ie] Rated Operational Current
- 21.8 A AC-23 Ue: 400 V
- Intermittent Duty Class
- 30
- [Ith] Conventional Free Air Thermal Current
- 32 A
- [Ithe] Conventional Enclosed Thermal Current
- 25 A
- Making Capacity
- 320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A
- Marking
- 0 - 1
- Mechanical Durability
- 100000 cycles
- Mounting Support
- handle door || switch door
- Net Weight
- 0.25 kg
- Network Type
- AC || DC
- Performance Level
- high performance
- Poles Description
- 3P
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG
- Rated Operational Power In W
- 11 kW 500 V AC-23A) || 15 kW 690 V AC-23A) || 7.5 kW 500 V AC-3) || 7.5 kW 690 V AC-3) || 1.5 kW 230...240 V AC-3) || 5.5 kW 230...240 V AC-23A) || 11 kW 400...415 V AC-23A) || 7.5 kW 400...415 V AC-3)
- Rotary Handle Mounting Style
- direct
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 2.1-2.1 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Width
- 60 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Compatibility Code
- main switch disconnector
- Fire Resistance
- 960 °C IEC 60695-2-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP65
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Product Certifications
- CSA || CCC || UL || GL || UKCA
- Protective Treatment
- TC
- Standards
- IEC 60947-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110227EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- preventive maintenance
- Device Short Name
- VBF
- Product Name
- TeSys VARIO
- Product Or Component Type
- switch disconnector
- Range
- TeSys
