Schneider Electric TSXSCMCN050
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

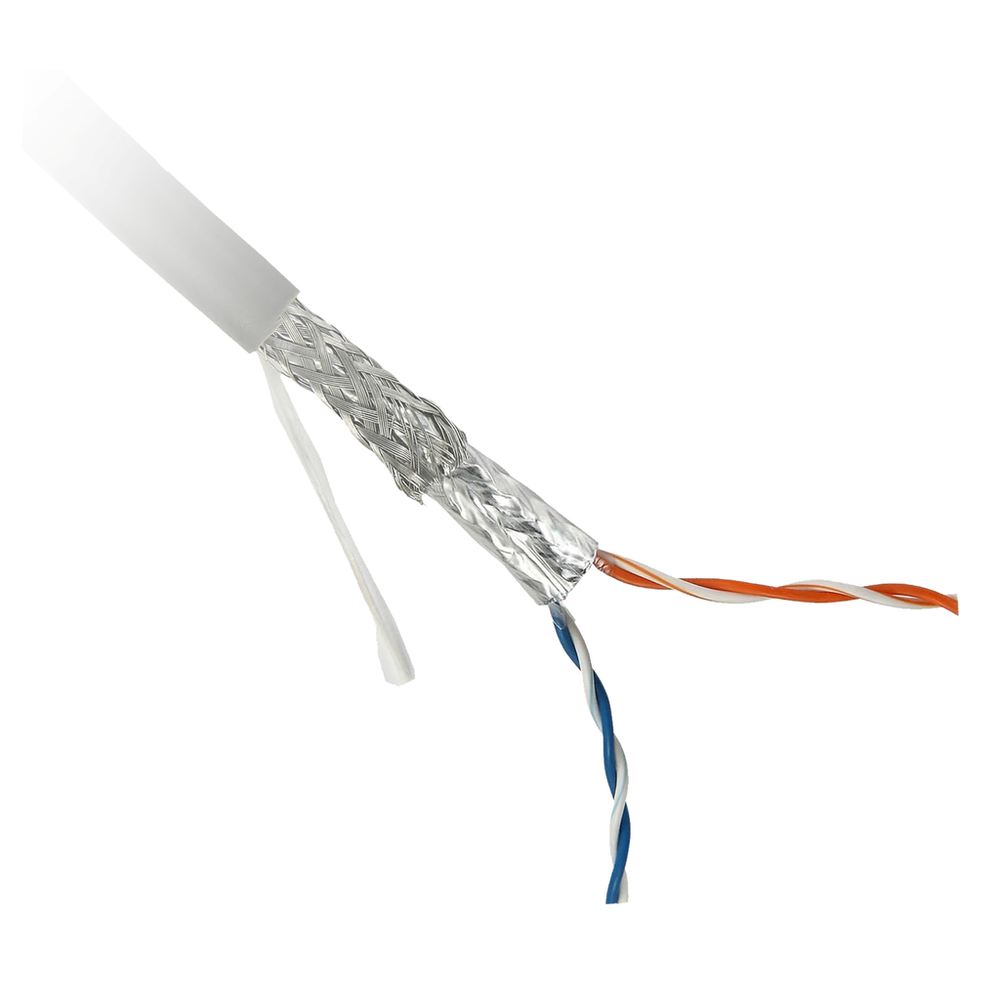

This RS485 shielded cable is used to connect 2 safe communication expansion modules. It is designed to link two safe communication modules, in order to create decentralized cabinets of remote IO. This cable figures 2 pairs of twisted conductors with shielding with flying lead connection. RS485 serial interface shielded cables are used between the Bus expansion communication modules to create up to six decentralized safety-related islands with a maximum of 50 meters between each island. It weighs 4.6kg. It measures 50m. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.RS485 shielded cable to build safety islands with safe com. modules - 50 m
Schneider Electric TSXSCMCN050 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Attenuation
- 1.97 dB
- Awg Gauge
- AWG 24
- Cable Capacitance
- 0.2096 nF between two conductors) || 0.3772 nF between conductor and shield)
- Cable Insulation Material
- PE (polyethylene)
- Cable Length
- 50 m
- Cable Shielding Type
- S/FTP
- Delay Skew
- 1.54 ns
- Electrical Connection
- flying leads
- Insulation Resistance
- 24 MOhm nominal conductor DC resistance || 2.2 MOhm nominal outer shield DC resistance
- Net Weight
- 4.6 kg
- Nominal Velocity Propagation
- 66 %
- Permissible Current
- 2.1 A
- Product Compatibility
- XPSMCMCO0000S...
- Type Of Cable
- twisted pair white/blue || twisted pair orange/white
- [Ue] Rated Operational Voltage
- 300 Vrms
Environment
- Ambient Air Temperature For Operation
- -20-80 °C
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Accessory / Separate Part Category
- cabling accessory
- Accessory / Separate Part Destination
- RS485 safe communication expansion module
- Accessory / Separate Part Type
- connecting cable
- Range Of Product
- Preventa Safety automation
