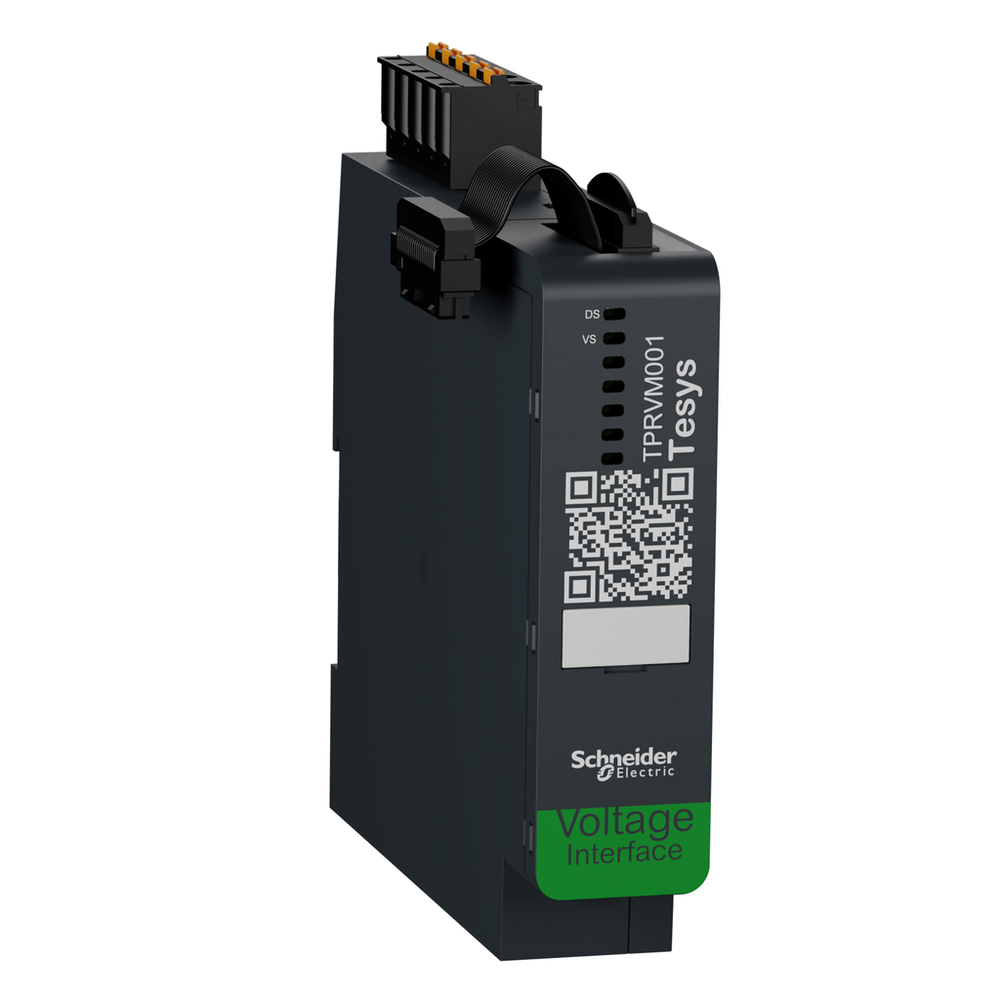

Schneider Electric TPRVM001

Complementary

• Connections - Terminals
  • measuring input removable spring terminal block 3 0.2-2.5 mm² AWG 24...AWG 14)rigid || measuring input removable spring terminal block 3 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end || measuring input removable spring terminal block 3 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
• Current Consumption
  • 2 mA
• Depth
  • 114 mm
• Height
  • 118 mm
• Mounting Mode
  • horizontal and vertical 35 mm symmetrical rail)
• Net Weight
  • 0.159 kg
• Power Dissipation In W
  • 0.5 W maximum
• Product Certifications
  • UL || CSA || EAC (pending)
• Standards
  • IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
• [Us] Rated Supply Voltage
  • 24 V DC supplied by the bus coupler
• Width
  • 25 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -10-60 °C
• Ambient Air Temperature For Storage
  • -25-70 °C
• Electromagnetic Compatibility
  • electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || line voltage circuit: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 || line voltage circuit: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
• Fire Resistance
  • 960 °C UL 94
• Ip Degree Of Protection
  • IP20
• Operating Altitude
  • 0...6561.68 ft (0...2000 m) without derating
• Pollution Degree
  • 2
• Protective Treatment
  • TC
• Relative Humidity
  • 5-95 %
• Shock Resistance
  • 15 gn 11 ms) IEC 60068-2-27
• Vibration Resistance
  • 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile
  • ENVEOLI1904009EN
• Environmental Disclosure
  • ENVPEP1904009EN
• Eu Rohs Directive
  • Compliant
• Halogen Content Performance
  • Halogen free plastic parts product
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Device Presentation
  • monitoring of the mains voltage powering the island || reporting of the voltage to the bus coupler to enable power & energy monitoring
• Device Short Name
  • TPRVM
• Function Of Module
  • monitoring of voltages in single phase systems L-N or L-L || monitoring of voltages in 3-phase systems without neutral N connection || calculation of RMS phase voltages, voltage phase sequence, fundamental frequency || identification of dip and swell events level and duration
• Local Signalling
  • for DS (device status) 1 LED (green/red) || for VS (voltage status) 1 LED (green/red)
• Measurement Accuracy
  • voltage +/- 5 %, || frequency +/- 1 Hz,
• Metering Type
  • phase voltage 100...690 V || phase frequency 47...63 Hz || phase sequence
• Overvoltage Category
  • III
• Product Compatibility
  • TPRBC bus coupler
• Product Name
  • TeSys island
• Product Or Component Type
  • voltage interface module
• Range
  • TeSys
• [Ue] Rated Operational Voltage
  • 690 V AC 47...63 Hz
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kV IEC 61010-1
• [Ui] Rated Insulation Voltage
  • 690 V IEC 61010-1
