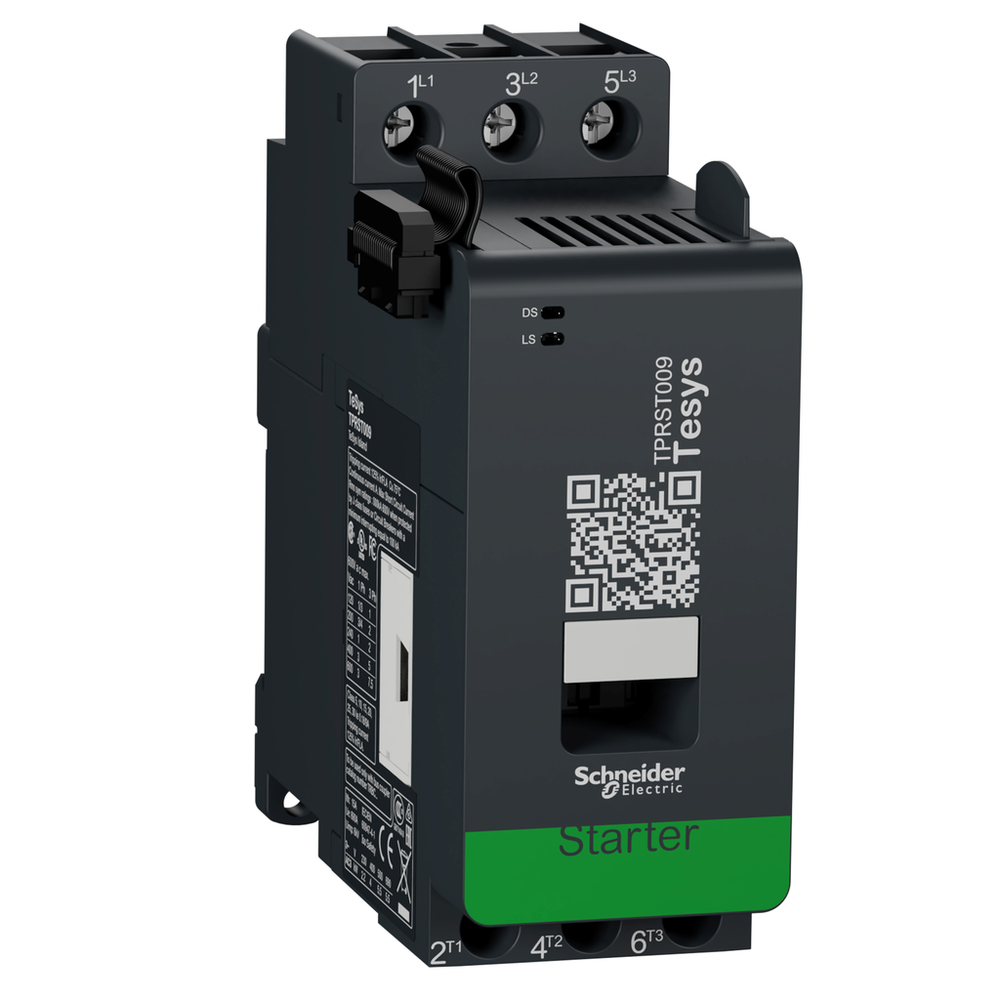

Schneider Electric TPRST009

Complementary

• Connections - Terminals
  • screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)rigid || screw-clamp terminals 2 1-4 mm² AWG 16...AWG 12)rigid || screw-clamp terminals 1 1.5-4 mm² AWG 16...AWG 12)flexible without cable end || screw-clamp terminals 2 1.5-4 mm² AWG 16...AWG 12)flexible without cable end || screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)flexible with cable end || screw-clamp terminals 2 1-2.5 mm² AWG 16...AWG 14)flexible with cable end
• Depth
  • 115 mm
• Electrical Durability
  • 2 Mcycles 9 A AC-3 440 V || 1.2 Mcycles 15 A AC-1 440 V
• Height
  • 116 mm
• Local Signalling
  • for DS (device status) 1 LED (green/red) || for LS (load status) 1 LED (green/red)
• Maximum Operating Rate
  • 3600 cyc/mn AC-3
• Mechanical Durability
  • 30 Mcycles
• Metering Type
  • time device ON || time device switch ON || number of faults || number of switching cycles || number of device power cycles || average current Iavg || average voltage Vavg || max current Imax || max voltage Vmax || active and reactive power with voltage module || active and reactive energy with voltage module || true power factor with voltage module
• Mounting Mode
  • horizontal and vertical 35 mm symmetrical DIN rail)
• Net Weight
  • 0.656 kg
• Operating Time
  • < 100 ms closing || < 30 ms opening
• Product Certifications
  • EAC || CSA || CCC || UL
• Protection Type
  • thermal overload protection || motor overheat || overcurrent || undercurrent || jam || long start || stall || rapid cycle lockout || phase sequence || rapid restart lockout || phase reversal || phase loss || phase unbalance || ground current
• Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Standards
  • EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
• Tightening Torque
  • 1.7-1.7 N.m flat Ø 6 mm || 1.7-1.7 N.m Philips No 2
• Width
  • 45 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -10-50 °C without derating || 50-60 °C with current derating
• Ambient Air Temperature For Storage
  • -25-70 °C
• Electromagnetic Compatibility
  • electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 || surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 || conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
• Fire Resistance
  • 960 °C UL 94 || 850 °C IEC 60695-2-1 || 650 °C IEC 60695-2-12
• Ip Degree Of Protection
  • IP20
• Operating Altitude
  • 0...6561.68 ft (0...2000 m) without derating
• Pollution Degree
  • 2
• Protective Treatment
  • TC
• Relative Humidity
  • 5-95 %
• Shock Resistance
  • 15 gn 11 ms) IEC 60068-2-27
• Vibration Resistance
  • 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6

Offer Sustainability

• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile
  • ENVEOLI1904009EN
• Environmental Disclosure
  • ENVPEP1904009EN
• Eu Rohs Directive
  • Compliant
• Halogen Content Performance
  • Halogen free plastic parts product
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Average Impedance
  • 2.5 mOhm - Ith 15 A 50 Hz
• Current Consumption
  • 160 mA contactor sealed || 160 mA contactor closing
• Device Presentation
  • direct starter connected to an automation controller through a bus coupler || operational only when connected to a bus coupler
• Device Short Name
  • TPRST
• Function Available
  • upstream voltage presence detection || electrical line and load protection || power and energy monitoring when connected with TPRVM voltage module
• [Icw] Rated Short-Time Withstand Current
  • 210 A 40 °C - 1 s || 105 A 40 °C - 10 s || 61 A 40 °C - 1 min || 30 A 40 °C - 10 min
• [Ie] Rated Operational Current
  • 9 A 50 °C) <= 440 V AC-3 || 15 A 50 °C) <= 440 V AC-1
• Irms Rated Making Capacity
  • 250 A 440 V IEC 60947
• [Ith] Conventional Free Air Thermal Current
  • 15 A 50 °C
• Maximum Horse Power Rating
  • 0.33 hp 120 V at AC 60 Hz for 1 phase || 1 hp 240 V at AC 60 Hz for 1 phase || 2 hp 208 V at AC 60 Hz for 3 phase || 2 hp 240 V at AC 60 Hz for 3 phase || 5 hp 480 V at AC 60 Hz for 3 phase || 7.5 hp 600 V at AC 60 Hz for 3 phase
• Motor Power Kw
  • 2.2 kW 230 V 50 Hz AC-3) || 4 kW 380...415 V 50 Hz AC-3) || 4 kW 440 V 50 Hz AC-3) || 5.5 kW 500 V 50 Hz AC-3) || 5.5 kW 690 V 50 Hz AC-3)
• Motor Starter Type
  • direct on line
• Overvoltage Category
  • III
• Poles Description
  • 3P 3 NO
• Power Dissipation In W
  • 3.5 W at Ie AC-3
• Power Dissipation Per Pole
  • 0.2 W AC-3 - Ith 9 A || 0.56 W AC-1 - Ith 15 A
• Product Compatibility
  • TPRBC bus coupler || TPRVM voltage interface module
• Product Name
  • TeSys island
• Product Or Component Type
  • motor starter
• Range
  • TeSys
• Rated Breaking Capacity
  • 250 A 440 V IEC 60947
• Reset
  • remotely or automatically
• Thermal Overload Class
  • class 5…30
• Thermal Protection Adjustment Range
  • 0.18-9 A
• [Uc] Control Circuit Voltage
  • 24 V DC supplied by the bus coupler
• [Ue] Rated Operational Voltage
  • <= 690 V AC 47...63 Hz
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-1
• [Ui] Rated Insulation Voltage
  • 690 V IEC 60947-4-1 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
• Utilisation Category
  • AC-1 || AC-2 || AC-3 || AC-4
