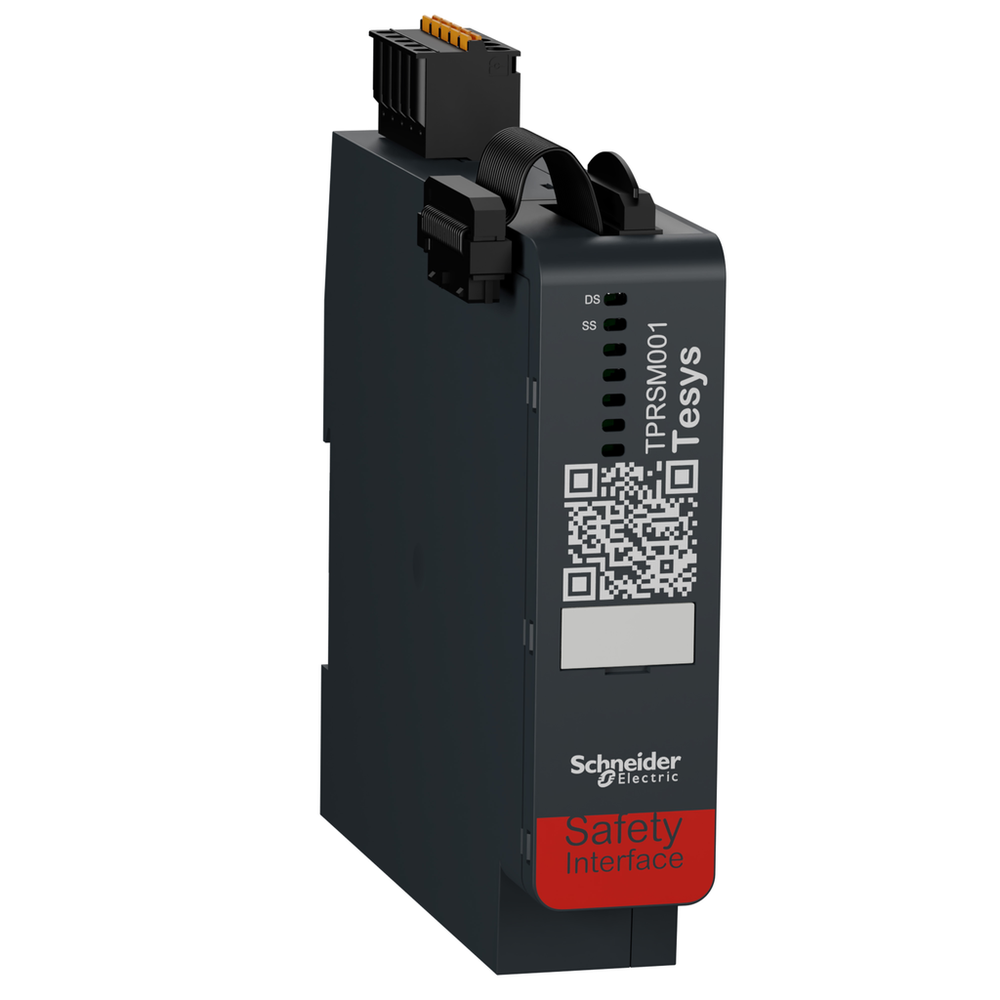

Schneider Electric TPRSM001

Complementary

• Connections - Terminals
  • control circuit removable spring terminal block 5 0.2-2.5 mm² AWG 24...AWG 14)rigid || control circuit removable spring terminal block 5 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit removable spring terminal block 5 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
• Current Consumption
  • 10 mA
• Depth
  • 114 mm
• Height
  • 118 mm
• Mounting Mode
  • horizontal and vertical 35 mm symmetrical rail)
• Net Weight
  • 0.159 kg
• Power Dissipation In W
  • 0.7 W maximum
• Product Certifications
  • UL || CSA || EAC (pending)
• Safety Function
  • safe stop: category 0 conforming to IEC 60204-1 || safe stop: category 1 conforming to IEC 60204-1
• Safety Level
  • SIL 2 conforming to IEC 61508 in single channel system architecture || SILCL 2 conforming to IEC 62061 in single channel system architecture || PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
• Standards
  • IEC 60947-5-1 || UL 60947-5-1
• [Us] Rated Supply Voltage
  • 24 V DC supplied by the bus coupler
• Width
  • 25 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -10-60 °C
• Ambient Air Temperature For Storage
  • -25-70 °C
• Electromagnetic Compatibility
  • electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
• Fire Resistance
  • 960 °C UL 94
• Ip Degree Of Protection
  • IP20
• Operating Altitude
  • 0...6561.68 ft (0...2000 m) without derating
• Pollution Degree
  • 2
• Protective Treatment
  • TC
• Relative Humidity
  • 5-95 %
• Shock Resistance
  • 15 gn 11 ms) IEC 60068-2-27
• Vibration Resistance
  • 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile
  • ENVEOLI1904009EN
• Environmental Disclosure
  • ENVPEP1904009EN
• Eu Rohs Directive
  • Compliant
• Halogen Content Performance
  • Halogen free plastic parts product
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Device Presentation
  • implementation of a safe stop function for SIL motor starters TPRSS || safe stop operable for safety-related system conforming to ISO 13849-1 || operational only when connected to a bus coupler TPRBC
• Device Short Name
  • TPRSM
• Function Of Module
  • safe stop with 1NC or 2NC contacts monitoring
• Input Protection Type
  • internal, electronic
• Input Type
  • isolated switching input safe stop
• Input Voltage
  • 15...28.8 V DC state 1 || 0...5 V DC state 0
• Local Signalling
  • for DS (device status) 1 LED (green/red) || for SS (safe stop status) 1 LED (green/red)
• Output Thermal Current
  • 8 A relay output
• Output Type
  • relay instantaneous opening, 1 NO, potential free
• Overvoltage Category
  • III
• Product Compatibility
  • TPRBC bus coupler || TPRSS SIL motor starter
• Product Name
  • TeSys island
• Product Or Component Type
  • SIL interface module
• Protection Type
  • external fuse, 8 A gG relay output
• Range
  • TeSys
• [Ue] Rated Operational Voltage
  • input/output circuit 24 V DC
• [Uimp] Rated Impulse Withstand Voltage
  • 2 kV input/output circuit IEC 60947-1
• [Ui] Rated Insulation Voltage
  • input/output circuit 50 V
