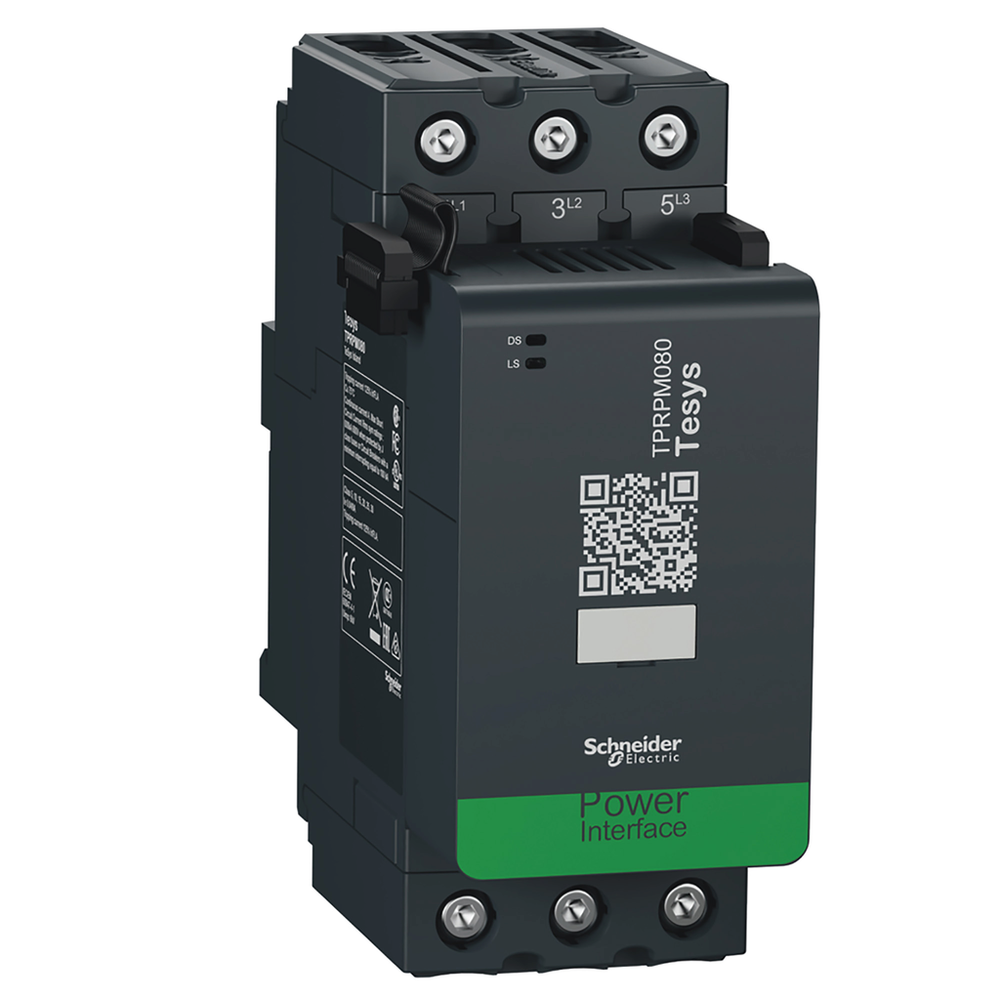

Schneider Electric TPRPM080
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys island power module, 3 poles, 80A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 80A and motors up to 37kW@400V / 40hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 4-80A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Power module, TeSys island, 80A at AC-1, 80A at AC-3, 37kW, 50hp
Schneider Electric TPRPM080 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)rigid || EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)rigid || EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)flexible without cable end || EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)flexible without cable end || EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)flexible with cable end || EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)flexible with cable end
- Depth
- 125 mm
- Height
- 136 mm
- Local Signalling
- for DS (device status) 1 LED (green/red) || for LS (load status) 1 LED (green/red)
- Metering Type
- time device ON || number of faults || number of device power cycles || average current Iavg || average voltage Vavg || max current Imax || max voltage Vmax
- Mounting Mode
- horizontal and vertical 35 mm symmetrical DIN rail)
- Net Weight
- 0.425 kg
- Product Certifications
- CCC || UL || EAC || CSA
- Protection Type
- thermal overload protection || motor overheat || overcurrent || undercurrent || jam || long start || stall || rapid cycle lockout || rapid restart lockout || phase reversal || phase loss || phase sequence || phase unbalance || ground current
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Tightening Torque
- 5-5 N.m 1-25 mm² hexagonal 4 mm || 8-8 N.m 25-35 mm² hexagonal 4 mm
- Width
- 55 mm
Environment
- Ambient Air Temperature For Operation
- -10-50 °C without derating || 50-60 °C with current derating
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 || surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 || conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
- Fire Resistance
- 960 °C UL 94 || 850 °C IEC 60695-2-1 || 650 °C IEC 60695-2-12
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating
- Pollution Degree
- 2
- Protective Treatment
- TC
- Relative Humidity
- 5-95 %
- Shock Resistance
- 15 gn 11 ms) IEC 60068-2-27
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1904009EN
- Environmental Disclosure
- ENVPEP1904009EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Current Consumption
- 60 mA
- Device Presentation
- power module connected to an automation controller through a bus coupler || operational only when connected to a bus coupler
- Device Short Name
- TPRPM
- Function Available
- upstream voltage presence detection || electronic thermal overload protection || monitoring of currents || control of third party power devices when associated to TPRDG IO module
- [Ie] Rated Operational Current
- 80 A 50 °C) <= 440 V AC-3 || 80 A 50 °C) <= 440 V AC-1
- [Ith] Conventional Free Air Thermal Current
- 80 A 50 °C
- Maximum Horse Power Rating
- 5 hp 120 V at AC 60 Hz for 1 phase || 10 hp 240 V at AC 60 Hz for 1 phase || 20 hp 208 V at AC 60 Hz for 3 phase || 20 hp 240 V at AC 60 Hz for 3 phase || 40 hp 480 V at AC 60 Hz for 3 phase || 50 hp 600 V at AC 60 Hz for 3 phase
- Motor Power Kw
- 22 kW 230 V AC 50 Hz || 37 kW 380...415 V AC 50 Hz || 37 kW 440 V AC 50 Hz || 37 kW 500 V AC 50 Hz || 37 kW 690 V AC 50 Hz
- Overvoltage Category
- III
- Poles Description
- 3P
- Power Dissipation In W
- 2.3 W at Ie AC-3
- Product Compatibility
- TPRBC bus coupler || TPRDG digital IO module || TPRAN analog IO module
- Product Name
- TeSys island
- Product Or Component Type
- power module
- Range Of Product
- TeSys
- Reset
- remotely or automatically
- Thermal Overload Class
- class 5…30
- Thermal Protection Adjustment Range
- 4-80 A
- [Uc] Control Circuit Voltage
- 24 V DC supplied by the bus coupler
- [Ue] Rated Operational Voltage
- <= 690 V AC 47...63 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-4-1 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
