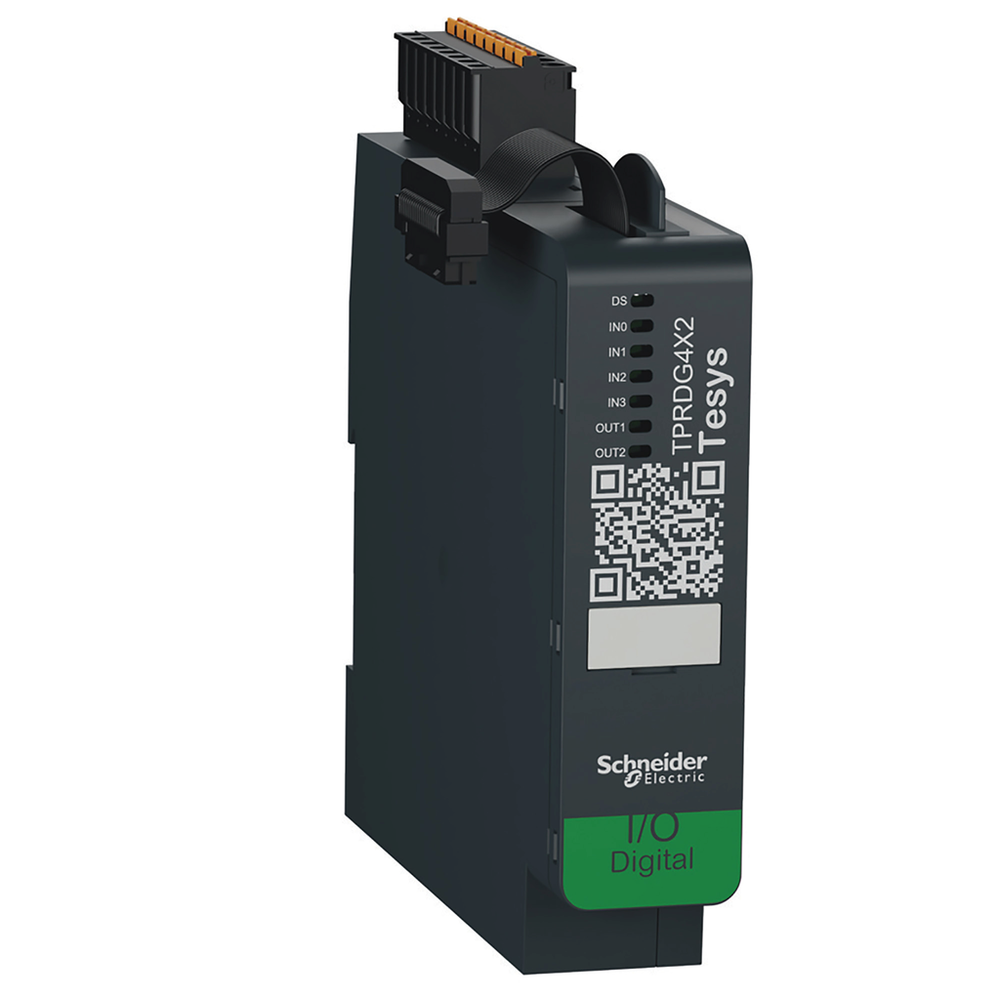

Schneider Electric TPRDG4X2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys island digital IO module, 4 digital inputs 24V DC, 2 digital outputs 24V DC. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). It can be used to control external power switching devices when associated to a TPRPM power module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Digital IO module, TeSys island, 4 inputs, 2 outputs, 24VDC
Schneider Electric TPRDG4X2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)rigid || input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end || input/output circuit removable spring terminal block 8 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
- Current Consumption
- 10 mA
- Depth
- 114 mm
- Height
- 118 mm
- Mounting Mode
- horizontal and vertical 35 mm symmetrical rail)
- Net Weight
- 0.136 kg
- Power Dissipation In W
- 0.5 W maximum
- Product Certifications
- UL || CSA || EAC (pending)
- Standards
- IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV IEC 61010-1
- [Us] Rated Supply Voltage
- 24 V DC supplied by the bus coupler
- Width
- 25 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
- Fire Resistance
- 960 °C UL 94
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating
- Pollution Degree
- 2
- Protective Treatment
- TC
- Relative Humidity
- 5-95 %
- Shock Resistance
- 15 gn 11 ms) IEC 60068-2-27
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1904009EN
- Environmental Disclosure
- ENVPEP1904009EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Presentation
- IO module providing 4 digital inputs and 2 digital outputs || enabling advanced control functions in a TeSys island system || control of third parties power devices when associated to a TPRPM power module || operational only when connected to a bus coupler TPRBC
- Device Short Name
- TPRDG
- Discrete Input Current
- 7 mA 24 V
- Discrete Input Logic
- positive or negative, 0...5 V, 15...28.8 V
- Discrete Input Number
- 4 isolated with common point conforming to IEC 61131-2 Type 1
- Discrete Input Voltage
- 24 V DC 19.2...28.8 V)
- Discrete Output Current
- 0.5 A maximum
- Discrete Output Logic
- source or sink
- Discrete Output Number
- 2 isolated with common point
- Discrete Output Voltage
- 24 V DC 19.2...28.8 V)
- Function Of Module
- control of 4 sink/source digital inputs with common point || control of 2 sink/source digital outputs with common point
- Input Impedance
- 3.43 kOhm
- Local Signalling
- for DS (device status) 1 LED (green/red) || for I0 (input 1 status) 1 LED (green) || for I1 (input 2 status) 1 LED (green) || for I2 (input 3 status) 1 LED (green) || for I3 (input 4 status) 1 LED (green) || for Q0 (output 1 status) 1 LED (green) || for Q1 (output 2 status) 1 LED (green)
- Product Compatibility
- TPRBC bus coupler || TPRPM power module
- Product Name
- TeSys island
- Product Or Component Type
- digital IO module
- Protection Type
- 1 external fuse, 0.5 A fast each output
- Range
- TeSys
- Response Time
- 5 ms at 24 V digital input || 5 ms at 24 V digital output
