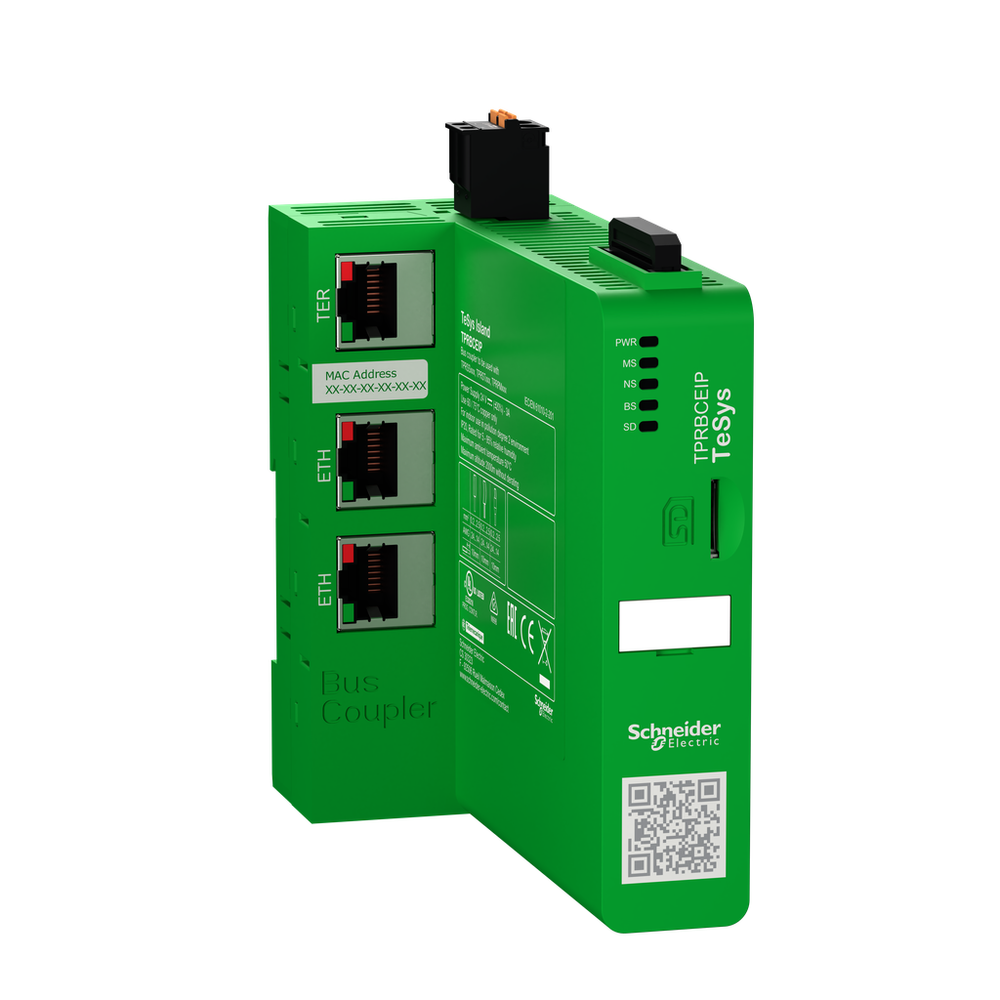

Schneider Electric TPRBCEIP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over EtherNet/IP or Modbus TCP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for EtherNet/IP or Modbus TCP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh).Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)
Schneider Electric TPRBCEIP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- power supply removable spring terminal block 2 2.5-2.5 mm² AWG 14)rigid or flexible
- Cybersecurity
- Achilles certified
- Depth
- 114 mm
- Height
- 118 mm
- Mounting Mode
- horizontal and vertical 35 mm symmetrical rail)
- Net Weight
- 0.204 kg
- Product Certifications
- UL || CSA || EAC || Achilles level 2
- Standards
- EN/IEC 60947-4-1 || CSA C22.2 No 61010-2-201 || UL 61010-2-201 || EN/IEC 61010-2-201
- Width
- 50 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4 || power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 || communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5 || power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
- Fire Resistance
- 960 °C UL 94
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating
- Pollution Degree
- 2
- Protective Treatment
- TC
- Relative Humidity
- 5-95 %
- Shock Resistance
- 15 gn 11 ms) IEC 60068-2-27
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1904009EN
- Environmental Disclosure
- ENVPEP1904009EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- EtherNet/IP || Modbus TCP
- Communication Service
- Ethernet/IP adapter || Modbus TCP server || DHCP client || BOOTP client || SNMP client || SNTP client || auto MDI/MDX function
- Device Presentation
- point of connection between a group of starters and an automation controller || management of the complete island up to 20 modules
- Device Short Name
- TPRBC
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet
- Function Available
- full integration with SoMove/MachineExpert for the programming of the island || one single 24V DC power supply for the complete island || two fieldbus ports for communication with an automation controller || one service port with an embedded webserver for maintenance
- Integrated Connection Type
- 2 RJ45 female Ethernet IP/Modbus TCP 10/100BASE-T, fieldbus port || 1 RJ45 female Ethernet TCP/IP, service port || 1 micro SD card port
- Local Signalling
- 1 LED green/yellow PWR power supply status || 1 LED green/red MS module status || 1 LED green/red NS network status || 1 LED green/red BS internal bus status || 1 LED green/red SD SD card access (SD)
- Power Dissipation In W
- 7 W maximum
- Product Compatibility
- TPRST motor starter || TPRSS SIL motor starter || TPRPM power module || TPRSM SIL interface module || TPRVM voltage interface module || TPRAN analog IO module || TPRDG digital IO module
- Product Name
- TeSys island
- Product Or Component Type
- bus coupler
- Protection Type
- external fuse, 3 A fast power supply || reverse polarity protection power supply
- Range
- TeSys
- Rated Current
- 3 A maximum
- Supply Voltage Limits
- 20.4-28.8 V DC
- [Us] Rated Supply Voltage
- 24 V DC
