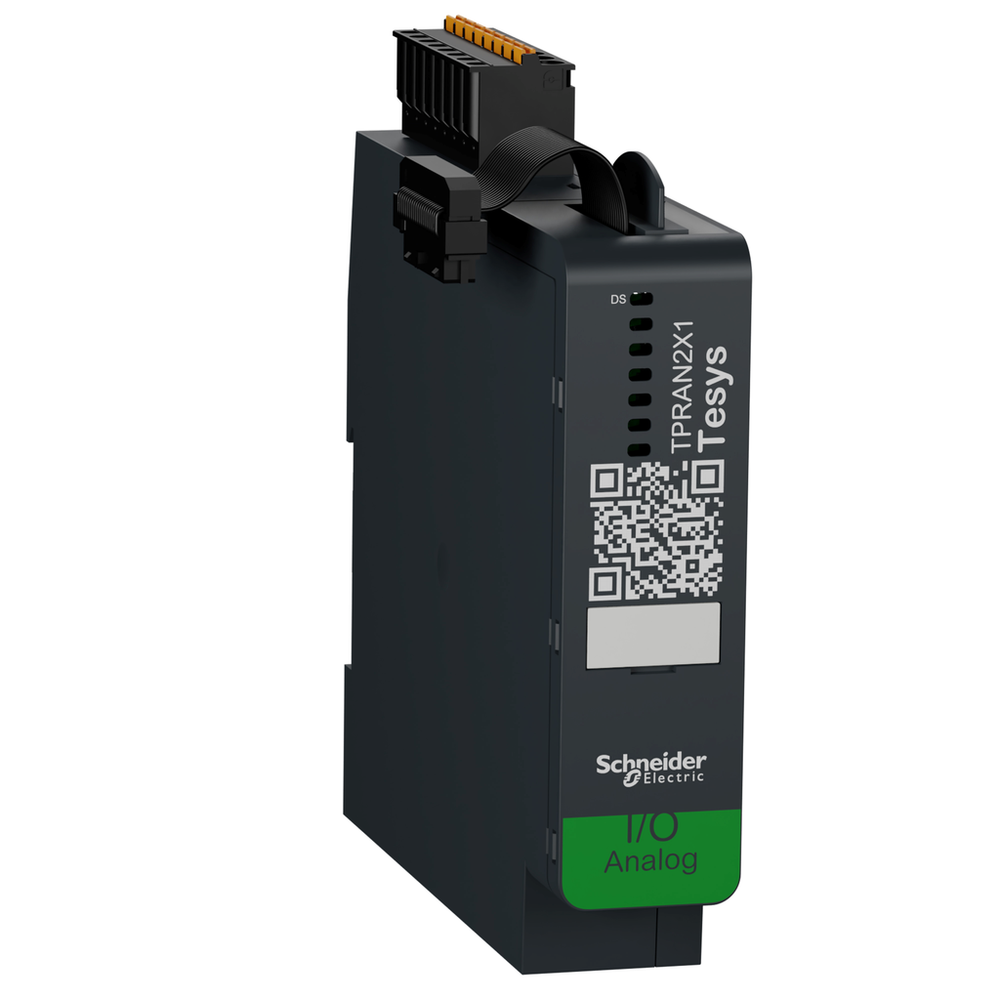

TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable
Schneider Electric TPRAN2X1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)rigid || input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end || input/output circuit removable spring terminal block 8 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
- Current Consumption
- 160 mA
- Depth
- 114 mm
- Height
- 118 mm
- Mounting Mode
- horizontal and vertical 35 mm symmetrical rail)
- Net Weight
- 0.172 kg
- Power Dissipation In W
- 0.5 W maximum
- Product Certifications
- UL || CSA || EAC (pending)
- Standards
- IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV IEC 61010-1
- [Us] Rated Supply Voltage
- 24 V DC supplied by the bus coupler
- Width
- 25 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
- Fire Resistance
- 960 °C UL 94
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating
- Pollution Degree
- 2
- Protective Treatment
- TC
- Relative Humidity
- 5-95 %
- Shock Resistance
- 15 gn 11 ms) IEC 60068-2-27
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1904009EN
- Environmental Disclosure
- ENVPEP1904009EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 2 isolated with common point
- Analogue Input Resolution
- 15 bits + sign full scale
- Analogue Input Type
- current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V || temperature probe - 60...180 °C Ni 100 || temperature probe - 60...180 °C Ni 1000 || temperature probe -200...+850 °C Pt 100 || temperature probe - 200...600 °C Pt 1000 || thermocouple - 200...1000 °C thermocouple J || thermocouple - 200...1300 °C thermocouple K || thermocouple 0...1760 °C thermocouple R || thermocouple 0...1760 °C thermocouple S || thermocouple 0...1820 °C thermocouple B || thermocouple - 200...400 °C thermocouple T || thermocouple - 200...1300 °C thermocouple N || thermocouple - 200...800 °C thermocouple E || thermocouple 0...2315 °C thermocouple C
- Analogue Output Number
- 1 isolated
- Analogue Output Resolution
- 12 bits, 4...20 mA full scale || 12 bits, 0...20 mA full scale || 12 bits, 0...10 V full scale || 11 bits + sign, - 10...10 V full scale
- Analogue Output Type
- current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
- Device Presentation
- IO module providing 2 analog inputs and 1 analog output || enabling advanced control functions in a TeSys island system || operational only when connected to a bus coupler TPRBC
- Device Short Name
- TPRAN
- Function Of Module
- measurement of voltage, current or temperature on 2 configurable analog inputs || driving voltage or current source on 1 configurable analog output
- Input Impedance
- <= 50 Ohm current || >= 1 MOhm voltage || >= 1 MOhm thermocouple || >= 1 MOhm temperature probe
- Local Signalling
- for DS (device status) 1 LED (green/red)
- Measurement Accuracy
- +/- 0.1 % of full scale voltage 25-25 °C || +/- 0.1 % of full scale current 25-25 °C || +/- 0.1 % of full scale temperature probe 25-25 °C || +/- 0.1 % of full scale in positive temperature range thermocouple 25-25 °C || +/- 0.4 % of full scale in negative temperature range thermocouple 25-25 °C
- Product Compatibility
- TPRBC bus coupler
- Product Name
- TeSys island
- Product Or Component Type
- analog IO module
- Range
- TeSys
- Type Of Cable
- twisted shielded pairs cable <30 m input/output
