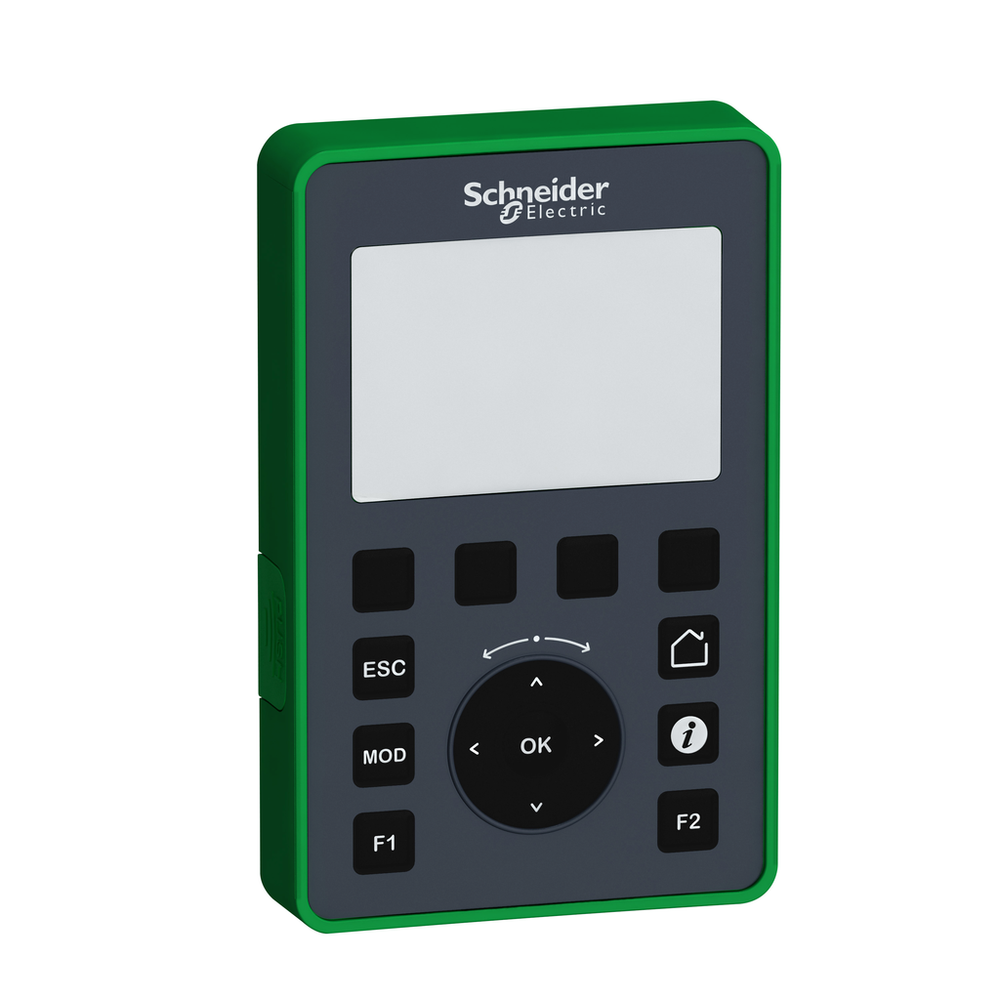

Schneider Electric TMH2GDB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This graphic display unit features a backlit colour STN LCD display. The display supports 240 x 160 pixels of resolution with monochrome display colour. The unit is equipped with RJ45 for communication and power supply. The keypad contains 4 configurable keys and 6 keys for navigation. It is an IP20 and IP65 rated product. Its dimensions are 80mm (Width) x 63mm (Depth) x 126mm (Height). It weighs 0.17kg. This product is certified by CE and CULus. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This display is compatible with Modicon M221 logic controller. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocksgraphic display, Modicon M221, unit, 240 x 160pixels
Schneider Electric TMH2GDB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connector Type
- RJ45 communication and power supply
- Depth
- 63 mm
- Height
- 126 mm
- Marking
- CE
- Mounting Location
- front cabinet 22 mm hole || bottom of cabinet 22 mm hole mounting accessory
- Net Weight
- 0.17 kg
- Product Certifications
- cULus
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201
- Width
- 80 mm
Environment
- Ambient Air Temperature For Operation
- -15-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electromagnetic Compatibility
- electrostatic discharge - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2 || conducted RF disturbances - test level: 10 Vrms (0.15...80 MHz) conforming to EN/IEC 61000-4-6 || disturbing field emission - test level: 10...150 kHz (power lines (DC)) conforming to EN/IEC 55011 || disturbing field emission - test level: 120...69 dBµV/m QP (power lines (DC)) conforming to EN/IEC 55011 || disturbing field emission - test level: 150...1500 kHz (power lines (DC)) conforming to EN/IEC 55011 || disturbing field emission - test level: 1.5...30 kHz (power lines (DC)) conforming to EN/IEC 55011 || disturbing field emission - test level: 30...230 MHz class A (10 m) conforming to EN/IEC 55011 || disturbing field emission - test level: 230 MHz...1 GHZ class A (10 m) conforming to EN/IEC 55011 || disturbing field emission - test level: 79...63 dBμV/m QP (power lines (DC)) conforming to EN/IEC 55011 || disturbing field emission - test level: 63 dBμV/m QP (power lines (DC)) conforming to EN/IEC 55011 || disturbing field emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 || electrostatic discharge - test level: 4 kV (contact discharge) conforming to EN/IEC 61000-4-2 || disturbing field emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m (80 MHz...1 GHz) conforming to EN/IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m (1.4...2 GHz) conforming to EN/IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test - test level: 1 V/m (2...3 GHz) conforming to EN/IEC 61000-4-3 || magnetic field at power frequency - test level: 30 A/m (50/60 Hz) conforming to EN/IEC 61000-4-8 || electrical fast transient/burst immunity test - test level: 1 kV conforming to EN/IEC 61000-4-4 || surge immunity test - test level: 0.5 kV (common mode) conforming to EN/IEC 61000-4-5 || surge immunity test - test level: 0.5 kV (differential mode) conforming to EN/IEC 61000-4-5
- Environmental Characteristic
- corrosive gas free
- Ip Degree Of Protection
- front face IP65 || back part IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 EN/IEC 60664-1
- Relative Humidity
- 95-95 %, non-condensing transport) || 95-95 %, non-condensing storage) || 95-95 %, non-condensing operation)
- Shock Resistance
- 15 gn 11 ms
- Storage Altitude
- 0-2000 m
- Vibration Resistance
- 1.5 mm 3-150 Hz) || 2 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409016EN
- Environmental Disclosure
- ENVPEP1409016EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Current Consumption
- 40 mA 5 V DC via RJ45 connector
- Display Colour
- monochrome
- Display Resolution
- 240 x 160 pixels
- Display Type
- backlit colour STN LCD
- Number Of Key
- 4 configurable || 6 for navigation
- Power Consumption In W
- 1 W
- Product Or Component Type
- graphic display
- Range Compatibility
- Modicon M221
- Range Of Product
- Modicon M221
