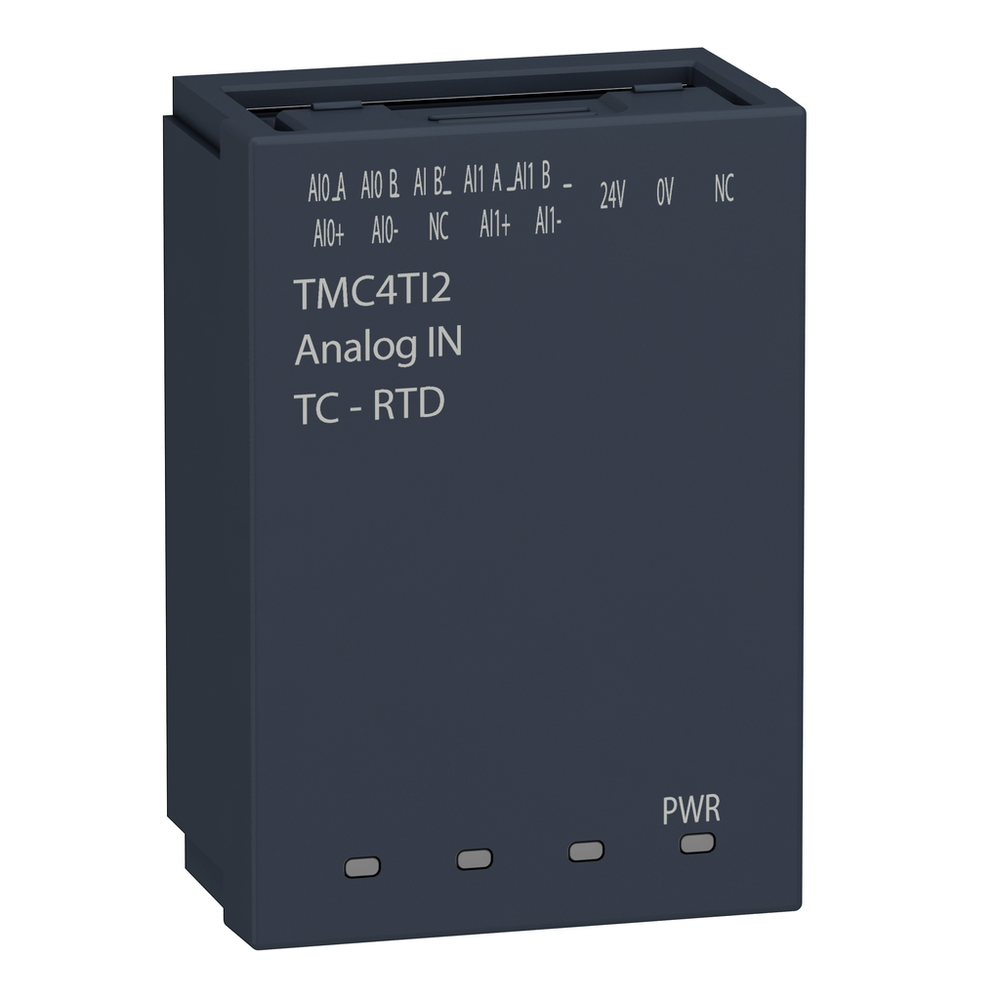

Schneider Electric TMC4TI2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 temperature inputs with 14bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.analogue input cartridge, Modicon M241, 2 temperature inputs
Schneider Electric TMC4TI2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- +/- 0.5 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe || +/- 0.2 % of full scale at 25 °C for thermocouple K - 200...1300 °C || +/- 0.2 % of full scale at 25 °C for thermocouple J - 200...1000 °C || +/- 0.2 % of full scale at 25 °C for thermocouple E - 200...800 °C || +/- 0.2 % of full scale at 25 °C for thermocouple T - 200...400 °C || +/- 0.2 % of full scale at 25 °C for thermocouple N - 200...1300 °C || +/- 0.2 % of full scale at 25 °C for thermocouple B 250...400 °C || +/- 0.1 % of full scale at 25 °C for thermocouple B 400...1280 °C || +/- 0.2 % of full scale at 25 °C for thermocouple R, S 0...1760°C
- Analogue Input Resolution
- 14 bits
- Analogue Input Type
- thermocouple - 200...1000 °C thermocouple J || Pt 100 temperature probe - 200...850 °C || Pt 1000 temperature probe - 200...600 °C || thermocouple - 200...1300 °C thermocouple K || thermocouple 0...1760 °C thermocouple R || thermocouple 0...1760 °C thermocouple S || thermocouple 0...1820 °C thermocouple B || thermocouple - 200...400 °C thermocouple T || thermocouple - 200...1300 °C thermocouple N || thermocouple - 200...800 °C thermocouple E || Ni 100/Ni 1000 temperature probe - 60...180 °C
- Cross Talk
- 80 dB
- Depth
- 21 mm
- Electrical Connection
- 1 x 1.5 mm² 1 spring terminal block pitch 3.81 mm for outputs and supply
- Height
- 50 mm
- Input Impedance
- >= 1 MOhm
- Insulation
- between input and internal logic 500 V DC || non-insulated between inputs
- Local Signalling
- for PWR 1 LED (green)
- Lsb Value
- 0.1 °C
- Maximum Cable Distance Between Devices
- twisted shielded pairs cable <30 m input
- Net Weight
- 0.055 kg
- Non-Linearity
- +/- 0.05 %FS
- Permissible Continuous Overload
- 6 V
- Repeat Accuracy
- +/- 0.1 %FS
- Sampling Duration
- 100 ms
- Supply Voltage Limits
- 20.4-28.8 V
- Temperature Drift
- +/- 0.008 %FS/°C
- Type Of Cable
- twisted shielded pairs cable
- Width
- 34 mm
Environment
- Immunity To Microbreaks
- 10 ms
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403017EN
- Environmental Disclosure
- ENVPEP1403017EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Analogue Input Number
- 2
- Product Compatibility
- Modicon M241C
- Product Or Component Type
- analogue input cartridge
- Range Of Product
- Modicon M241
