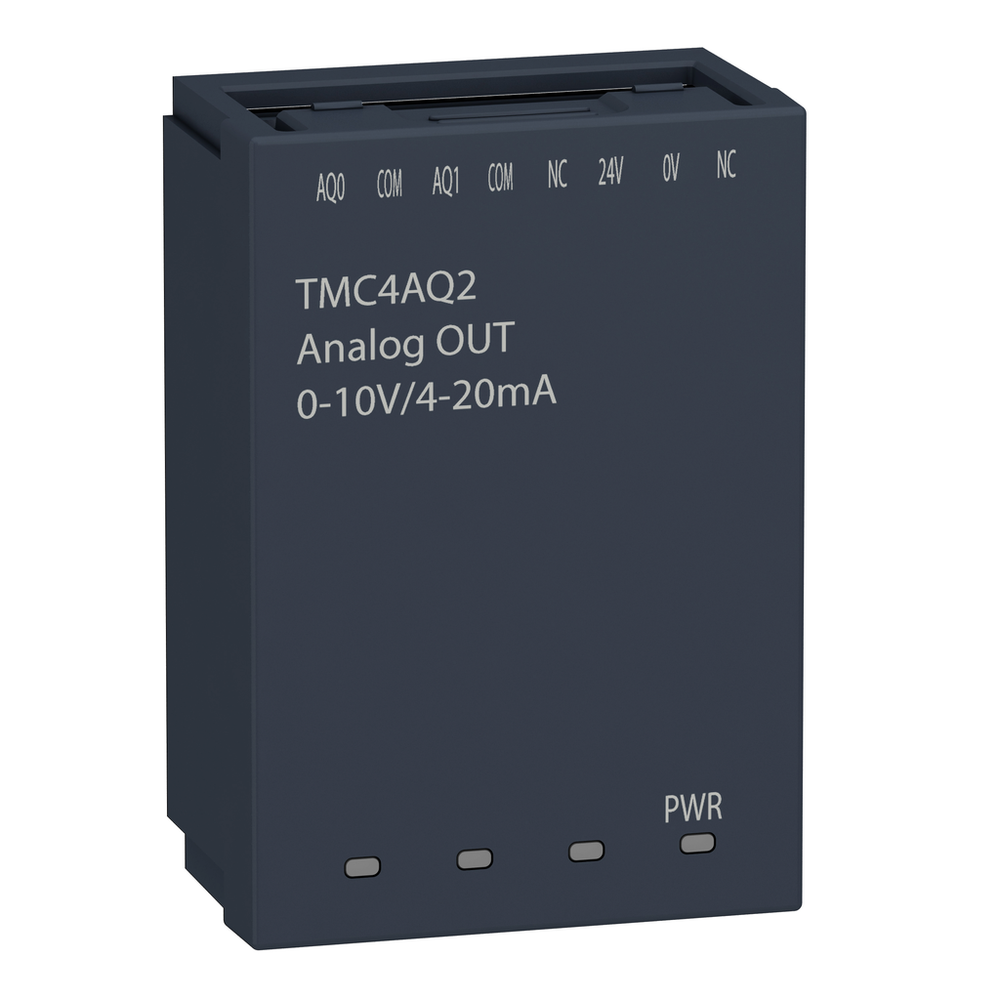

Schneider Electric TMC4AQ2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
cartridge M241 - 2 analog outputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue output cartridge is for Modicon M241 logic controllers. It provides 2 analogue current outputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between output and internal logic at 500V DC and no insulation between outputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for I/O cartridge on TM241C*24 . There are 2 slots for I/O cartridge on TM241C*40.analogue output cartridge, Modicon M241, 2 analog outputs
Schneider Electric TMC4AQ2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- +/- 0.2 % of full scale at 25 °C
- Analogue Output Number
- 2
- Analogue Output Resolution
- 16 bits
- Analogue Output Type
- current 4...20 mA || voltage 0...10 V
- Conversion Time
- 10 ms + 1 controller cycle time
- Cross Talk
- 80 dB
- Depth
- 21 mm
- Electrical Connection
- 1 x 1.5 mm² 1 spring terminal block pitch 3.81 mm for outputs and supply
- Height
- 50 mm
- Insulation
- between output and internal logic 500 V DC || non-insulated between outputs
- Load Impedance Ohmic
- <= 500 Ohm current || >= 2 kOhm voltage
- Load Type
- resistive
- Local Signalling
- for PWR 1 LED (green)
- Lsb Value
- 1 mV 0...10 V voltage || 2 µA 4...20 mA current
- Maximum Cable Distance Between Devices
- twisted shielded pairs cable <30 m input
- Net Weight
- 0.055 kg
- Non-Linearity
- +/- 0.05 %FS
- Output Ripple
- +/- 20 mV
- Repeat Accuracy
- +/- 0.5 %FS
- Stabilisation Time
- 10 ms
- Supply Voltage Limits
- 20.4-28.8 V
- Temperature Drift
- +/- 0.006 %FS/°C
- Type Of Cable
- twisted shielded pairs cable
- Width
- 34 mm
Environment
- Immunity To Microbreaks
- 10 ms
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403017EN
- Environmental Disclosure
- ENVPEP1403017EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Compatibility
- Modicon M241C
- Product Or Component Type
- analogue output cartridge
- Range Of Product
- Modicon M241
