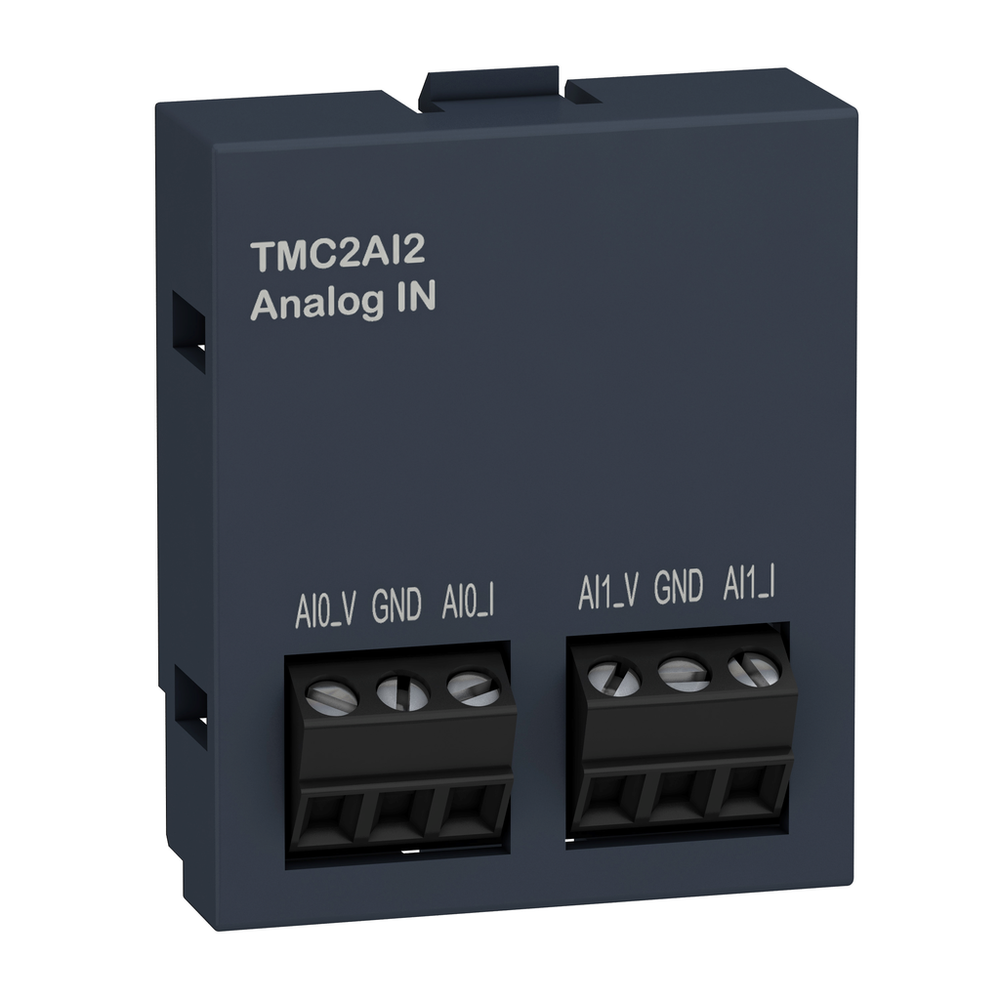

Schneider Electric TMC2AI2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocksanalogue input cartridge, Modicon M221, 2 analog inputs, IO extension
Schneider Electric TMC2AI2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- +/- 0.1 % of full scale at 25 °C || +/- 1 % of full scale
- Analogue Input Resolution
- 12 bits
- Analogue Input Type
- current 4...20 mA || current 0...20 mA || voltage 0...10 V
- Conversion Time
- 20 ms
- Cross Talk
- <= 1 LSB
- Depth
- 15 mm
- Electrical Connection
- 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs
- Height
- 41 mm
- Input Impedance
- <= 250 Ohm current || >= 1 MOhm voltage
- Insulation
- non-insulated between analogue input and internal logic
- Lsb Value
- 2.44 mV 0...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current
- Maximum Cable Distance Between Devices
- twisted shielded pairs cable <30 m input
- Net Weight
- 0.015 kg
- Non-Linearity
- +/- 0.01 %FS
- Permissible Continuous Overload
- 13 V voltage || 40 mA current
- Repeat Accuracy
- +/- 0.5 %FS
- Sampling Duration
- 10 ms
- Temperature Drift
- +/- 0.02 %FS/°C
- Type Of Cable
- twisted shielded pairs cable
- Width
- 35 mm
Environment
- Immunity To Microbreaks
- 10 ms
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403017EN
- Environmental Disclosure
- ENVPEP1403017EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Analogue Input Number
- 2
- Product Compatibility
- Modicon M221C
- Product Or Component Type
- analogue input cartridge
- Range Of Product
- Modicon M221
