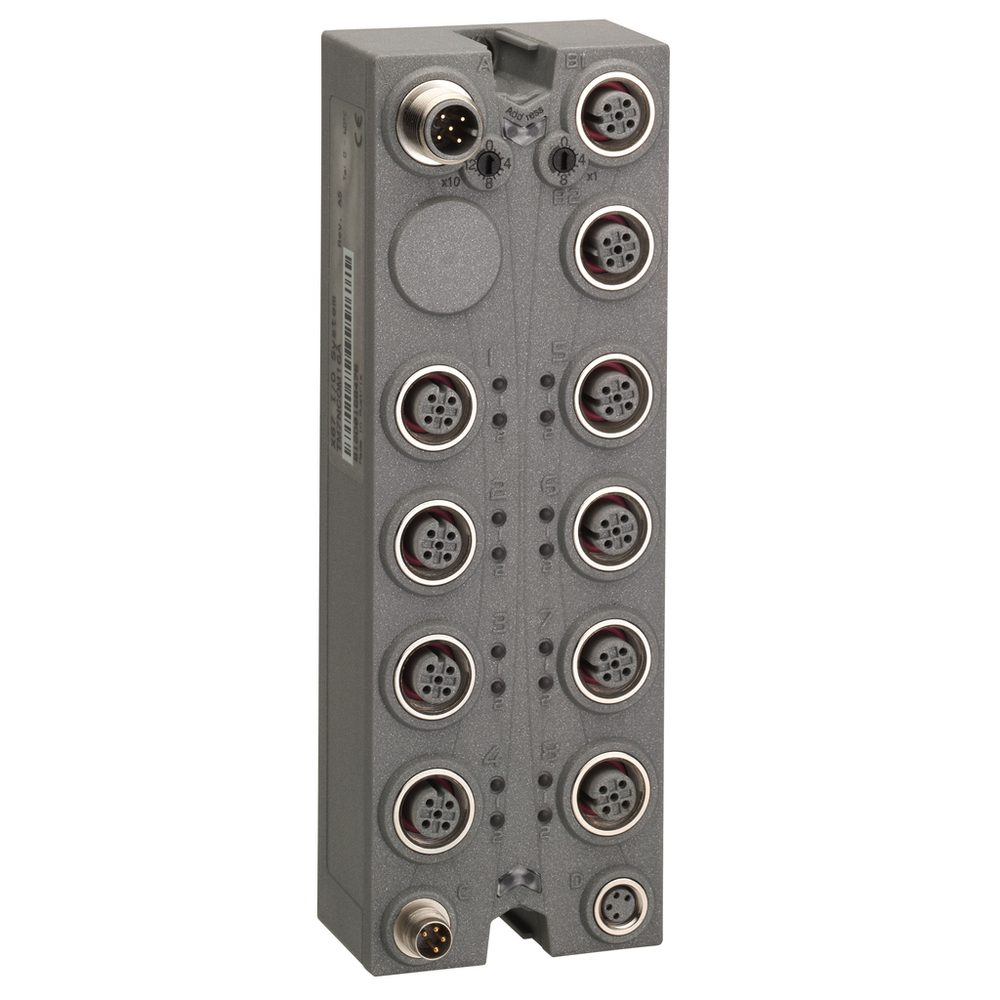

Schneider Electric TM7NCOM16A
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM7 range, modular I/O system. This CANopen interface block provides 16 I/O blocks with positive discrete input logic and transistor discrete output. It is an interface block with a rated operational voltage of 24V DC, a discrete I/O voltage of 24V DC and a discrete input current of 4.4mA. It is an IP67 rated product. It weighs 0.32kg. This product is certified by ATEX II 3g EEx nA II T5, C-Tick, CE, CURus and GOST-R. It meets IEC 61131-2 standards. This range is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It can be fixed with screws. Dust/damp-proof and robust, the modular IO system Modicon TM7 enables connection of sensors and actuators at the heart of processes or machines in harsh environments. The Modicon TM7 CANopen interface blocks enable sensors and actuators distributed over machines to be connected via the CANopen fieldbus. These interface blocks communicate on the bus.CANopen interface I/O block, Modicon TM7, IP67, 16 M12
Schneider Electric TM7NCOM16A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Discrete Input Current
- 4.4 mA
- Discrete Input Logic
- positive
- Discrete Input Number
- 0-16 configurable by software
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Discrete Output Current
- <= 0.5 A
- Discrete Output Number
- 0-16 configurable by software
- Discrete Output Type
- transistor
- Discrete Output Voltage
- 24 V
- Discrete Output Voltage Type
- DC
- Electrical Connection
- 1 male connector M12 - A coding - 5 ways CANopen bus IN || 1 female connector M12 - B coding - 4 ways TM7 bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 1 female connector M12 - A coding - 5 ways CANopen bus OUT || 8 female connectors M12 - A coding - 5 ways sensor or actuator
- Fixing Mode
- by 2 screws
- Local Signalling
- for bus diagnostic 2 LEDs || for actuator power supply diagnostics 1 LED || for sensor power supply diagnostics 1 LED
- Net Weight
- 0.32 kg
- Operating Position
- any position
- Sensor Power Supply
- 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-85 °C
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Ip Degree Of Protection
- IP67 conforming to IEC 61131-2
- Marking
- CE
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- ATEX II 3g EEx nA II T5 || C-tick || cURus || GOST-R
- Relative Humidity
- 5-95 % without condensation or dripping water
- Resistance To Electromagnetic Fields
- 10 V/m 0.08-2 Hz EN/IEC 61000-4-3 || 1 V/m 2-2.7 Hz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 6 kV in contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV EN/IEC 61000-4-4 power supply) || 1 kV EN/IEC 61000-4-4 input/output) || 1 kV EN/IEC 61000-4-4 shielded cable)
- Shock Resistance
- 30 gn 11 ms IEC 60721-3-5 Class 5M3
- Standards
- IEC 61131-2
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 1 kV power supply (common mode) EN/IEC 61000-4-5 || 0.5 kV power supply (differential mode) EN/IEC 61000-4-5 || 1 kV unshielded links (common mode) EN/IEC 61000-4-5 || 0.5 kV unshielded links (differential mode) EN/IEC 61000-4-5 || 1 kV shielded links (common mode) EN/IEC 61000-4-5 || 0.5 kV shielded links (differential mode) EN/IEC 61000-4-5
- Vibration Resistance
- 7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409005EN
- Environmental Disclosure
- ENVPEP1409005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bus Type
- CANopen
- Enclosure Material
- Plastic
- Input/Output Number
- 16
- Input/Output Number Of Splitter Box
- 16 I/O
- Product Or Component Type
- CANopen interface I/O block
- Range Compatibility
- Modicon LMC058 || Modicon M258
- Range Of Product
- Modicon TM7
- [Ue] Rated Operational Voltage
- 24 V DC
