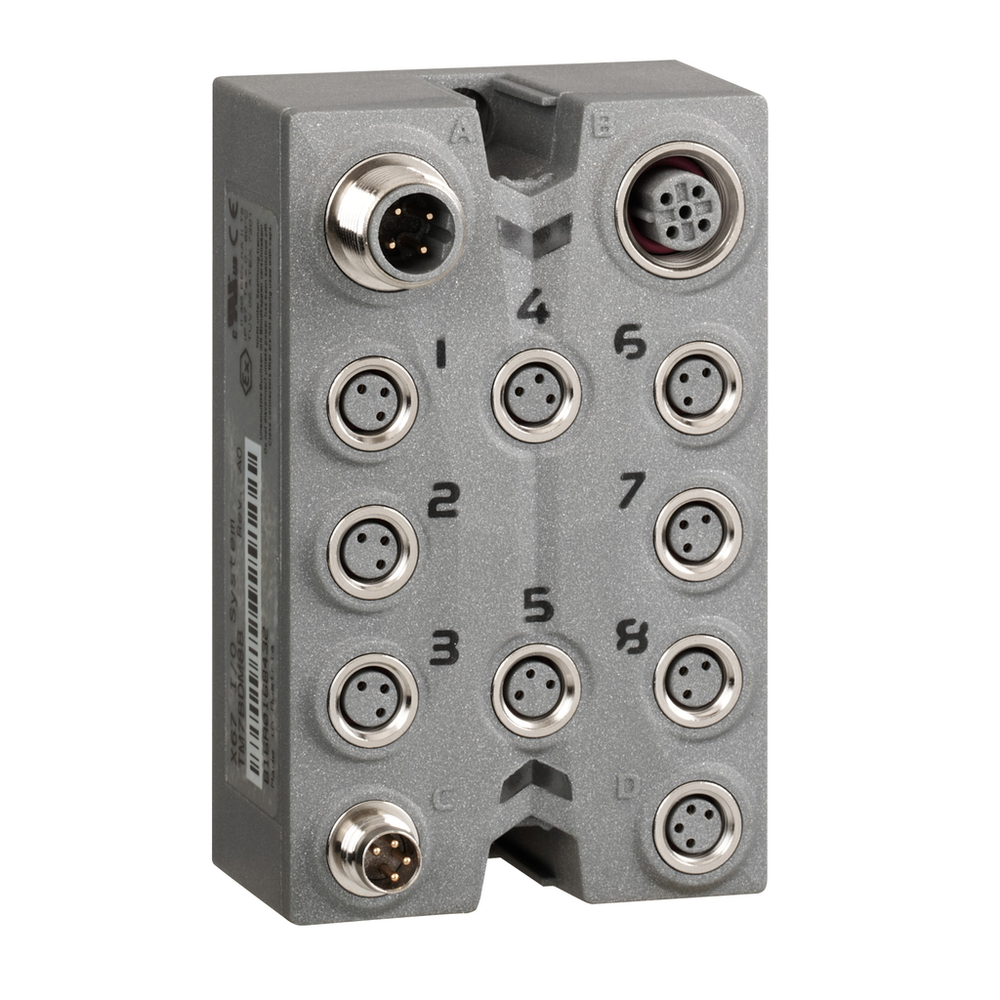

Schneider Electric TM7BDO8TAB

Complementary

• Discrete Output Number
  • 8-8 <= 2 A transistor
• Discrete Output Voltage
  • 24 V
• Discrete Output Voltage Type
  • DC
• Electrical Connection
  • 1 male connector M12 - B coding - 4 ways bus IN || 1 female connector M12 - B coding - 4 ways bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 1 female connector M8 - 3 ways actuator
• Fixing Mode
  • by 2 screws
• Local Signalling
  • for bus diagnostic 2 LEDs || for sensor power supply diagnostics 2 LEDs
• Net Weight
  • 0.185 kg
• Operating Position
  • any position
• Sensor Power Supply
  • 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -10-60 °C
• Ambient Air Temperature For Storage
  • -25-85 °C
• Electromagnetic Compatibility
  • electrostatic discharge immunity test, 4 kV on contact EN/IEC 61000-4-2 || 1.2/50 µs shock waves immunity test, 0.5 kV unshielded links (common mode) EN/IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV unshielded links (differential mode) EN/IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 0.5 kV shielded links (common mode) EN/IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV shielded links (differential mode) EN/IEC 61000-4-5 || conducted RF disturbances EN/IEC 61000-4-6 || conducted and radiated emissions CISPR 11 || electrostatic discharge immunity test, 8 kV in air EN/IEC 61000-4-2 || susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || electrical fast transient/burst immunity test, 2 kV power supply EN/IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV input/output EN/IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV shielded cable EN/IEC 61000-4-4 || 1.2/50 µs shock waves immunity test, 0.5 kV power supply (common mode) EN/IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV power supply (differential mode) EN/IEC 61000-4-5
• Ip Degree Of Protection
  • IP67 conforming to IEC 61131-2
• Marking
  • CE
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Pollution Degree
  • 2 IEC 60664
• Product Certifications
  • GOST-R || C-tick || ATEX II 3g EEx nA II T5 || cURus
• Relative Humidity
  • 5-95 % without condensation or dripping water
• Shock Resistance
  • 30 gn 11 ms IEC 60721-3-5 Class 5M3
• Standards
  • IEC 61131-2
• Storage Altitude
  • 0-3000 m
• Vibration Resistance
  • 7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1409005EN
• Environmental Disclosure
  • ENVPEP1409005EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Toxic Heavy Metal Free
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Bus Type
  • TM7 bus
• Enclosure Material
  • Plastic
• Input/Output Number
  • 8
• Input/Output Number Of Splitter Box
  • 8 O
• Product Or Component Type
  • discrete I/O expansion block
• Range Compatibility
  • Modicon LMC058 || Modicon M258
• Range Of Product
  • Modicon TM7
• [Ue] Rated Operational Voltage
  • 24 V DC
