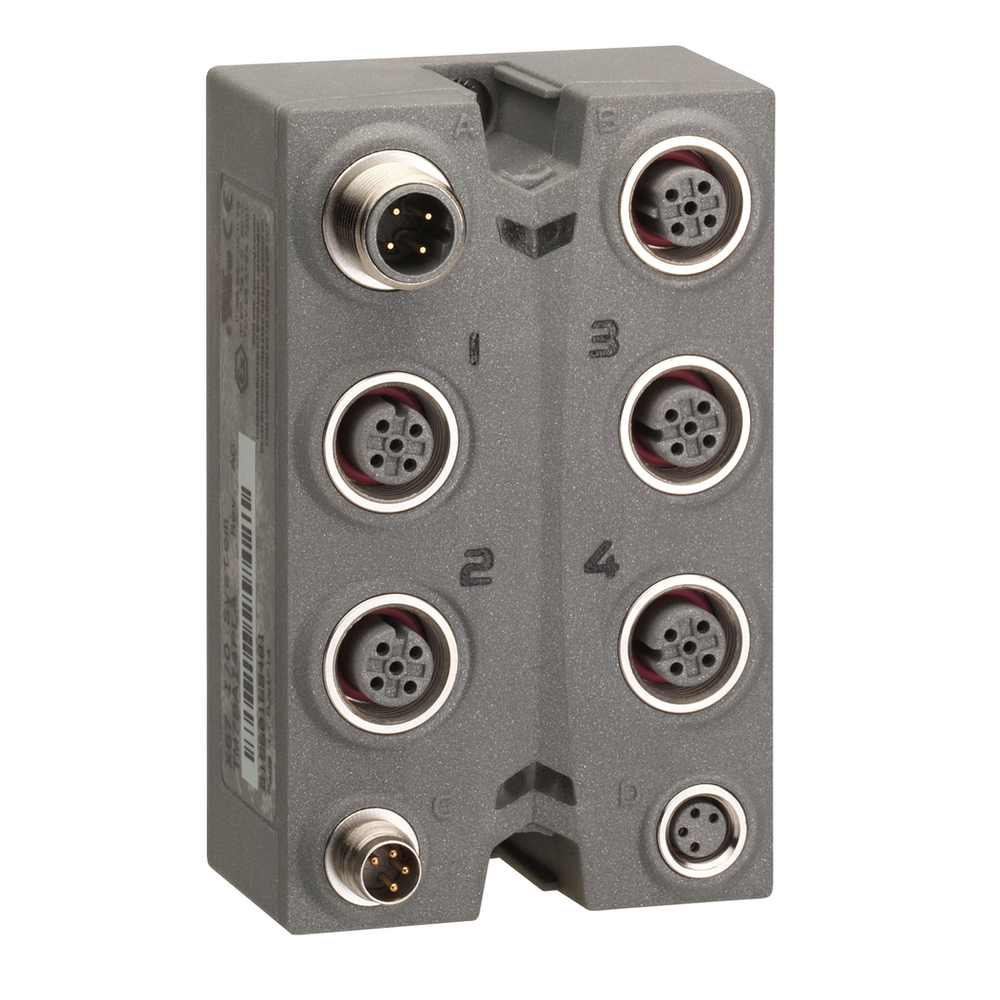

Schneider Electric TM7BAM4VLA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Analog I/O expansion block, Modicon TM7, IP67, 2 AI/2AO, +/-10 V, M12 connector
Schneider Electric TM7BAM4VLA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Number
- 2
- Analogue Input Range
- +/- 10 V
- Analogue Input Resolution
- 11 bits + sign
- Analogue Input Type
- voltage
- Analogue Output Number
- 2
- Analogue Output Range
- +/- 10 V
- Analogue Output Resolution
- 11 bits + sign
- Analogue Output Type
- voltage
- Electrical Connection
- 1 male connector M12 - B coding - 4 ways bus IN || 1 female connector M12 - B coding - 4 ways bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 4 female connectors M12 - A coding - 5 ways actuator
- Fixing Mode
- by 2 screws
- Local Signalling
- for bus diagnostic 2 LEDs || for sensor/actuator power supply status 2 LEDs
- Net Weight
- 0.2 kg
- Operating Position
- any position
- Sensor Power Supply
- 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-85 °C
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Ip Degree Of Protection
- IP67 conforming to IEC 61131-2
- Marking
- CE
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- cURus || GOST-R || C-tick || ATEX II 3g EEx nA II T5
- Relative Humidity
- 5-95 % without condensation or dripping water
- Resistance To Electromagnetic Fields
- 10 V/m 0.08-2 Hz EN/IEC 61000-4-3 || 1 V/m 2-2.7 Hz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 6 kV in contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV EN/IEC 61000-4-4 power supply) || 1 kV EN/IEC 61000-4-4 input/output) || 1 kV EN/IEC 61000-4-4 shielded cable)
- Shock Resistance
- 30 gn 11 ms IEC 60721-3-5 Class 5M3
- Standards
- IEC 61131-2
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 1 kV power supply (common mode) EN/IEC 61000-4-5 || 0.5 kV power supply (differential mode) EN/IEC 61000-4-5 || 1 kV unshielded links (common mode) EN/IEC 61000-4-5 || 0.5 kV unshielded links (differential mode) EN/IEC 61000-4-5 || 1 kV shielded links (common mode) EN/IEC 61000-4-5 || 0.5 kV shielded links (differential mode) EN/IEC 61000-4-5
- Vibration Resistance
- 7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3
Specifications
- Bus Type
- TM7 bus
- Enclosure Material
- Plastic
- Input/Output Number
- 4
- Input/Output Number Of Splitter Box
- 2 I + 2 O
- Product Or Component Type
- analog I/O expansion block
- Range Compatibility
- Modicon M258 || Modicon LMC058
- Range Of Product
- Modicon TM7
- [Ue] Rated Operational Voltage
- 24 V DC
