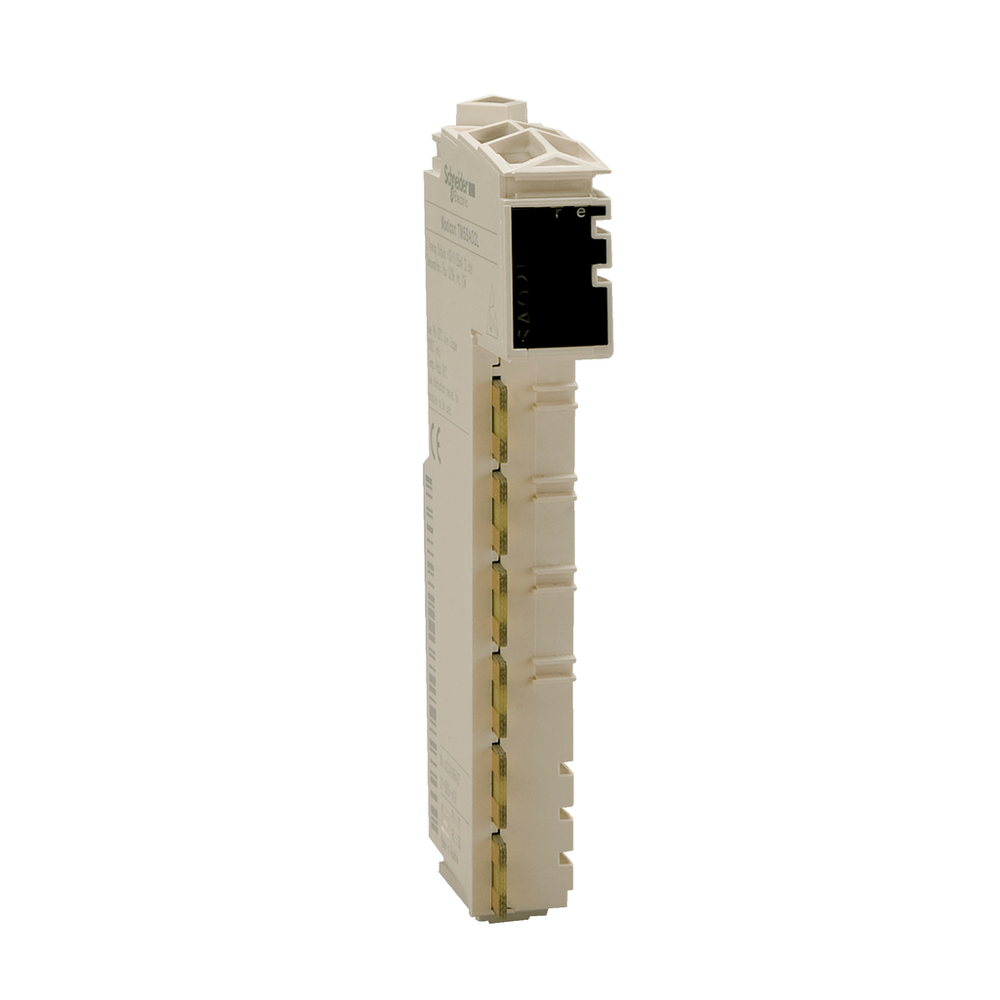

Schneider Electric TM5SMM6D2L
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This IO module features 4 discrete inputs sink logic, 1 analog input -10/+10V DC, 2 discrete transistor outputs 0.5A source logic, 1 analog output 0…20mA. There is an isolation between channel and bus at 500V AC. This product is part of a flexible and scalable I/O configuration for automation solutions. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.Mixed I/O module, Modicon TM5, module
Schneider Electric TM5SMM6D2L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Number
- 1
- Analogue Input Resolution
- 12 bits + sign voltage || 12 bits current
- Analogue Input Type
- voltage +/- 10 V || current 0...20 mA/4...20 mA
- Analogue Output Number
- 1
- Analogue Output Resolution
- 12 bits + sign, +/- 10 V || 12 bits, 0...20 mA
- Analogue Output Type
- voltage +/- 10 V || current 0...20 mA
- Color
- White
- Common Mode Rejection
- 70 dB DC analog input || 70 dB 50 Hz analog input
- Conversion Time
- 300 µs analog output
- Current Consumption
- 2 mA 5 V DC bus || 73 mA 24 V DC inputs/outputs
- Discrete Input Current
- 3.3 mA
- Discrete Input Logic
- sink
- Discrete Input Number
- 4
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Discrete Output Current
- <= 0.5 A per output || <= 1 A
- Discrete Output Logic
- source
- Discrete Output Number
- 2
- Discrete Output Type
- transistor
- Input Filtering
- <= 2 µs hardware || 1 ms by default || <= 25 ms configurable by software
- Input Impedance
- 7.18 kOhm digital || >= 1 MOhm analog, +/- 10 V
- Input Voltage Limits
- 20.4...28.8 V
- Isolation
- no insulation between channels || 500 Vrms AC insulation between channel and bus
- Load Impedance Ohmic
- <= 400 Ohm0...20 mA) 0-55 °C || <= 300 Ohm0...20 mA) 55-60 °C || <= 300 Ohm 0...20 mA/4...20 mA)
- Local Signalling
- for power supply (ON) 1 LED (green) || for power supply (OFF) 1 LED (red) || for digital input status 4 LEDs (green) || for digital output status 2 LEDs (orange) || 1 LED (orange) || 1 LED (green)
- Marking
- CE
- Maximum Leakage Current
- 5 µA when switched off) digital output
- Maximum Power Dissipation In W
- 1.75 W
- Measurement Error
- < 0.08 % of full scale +/- 10 V) 25 °C || < 0.08 % of full scale 0...20 mA/4...20 mA) 25 °C || < 0.15 % of full scale+/- 10 V) 25 °C || < 0.15 % of full scale0...20 mA) 25 °C
- Measurement Resolution
- 2.441 mV, +/- 10 V, +/- 10 V || 4.883 µA, 0...20 mA/4...20 mA, 0...20 mA
- Minimum Output Impedance
- 1 kOhm +/- 10 V 0-55 °C || 10 kOhm +/- 10 V 55-60 °C
- Net Weight
- 0.025 kg
- Non-Linearity
- +/- 0.02 %FS 0...20 mA/4...20 mA) || +/- 0.02 %FS +/- 10 V) || +/- 0.1 %FS0...20 mA) || +/- 0.1 %FS+/- 10 V)
- Output Voltage
- 24 V DC
- Output Voltage Limits
- 20.4...28.8 V
- Peak Output Current
- 14 A
- Protection Type
- against reverse polarity digital output || against short-circuits digital output || thermal overload protection digital output || against short-circuits analog output
- Response Time
- <= 250 µs from state 0 to state 1 digital output || <= 250 µs from state 1 to state 0 digital output || 1 ms analog output
- Sampling Duration
- 300 µs analog input
- Supply
- internal
- Switching Frequency
- 100 Hz, resistive digital output
- Temperature Coefficient
- +/- 0.009 %FS/°C 0...20 mA/4...20 mA) || +/-0.006 %FS/°C +/- 10 V) || +/- 0.02 %FS/°C0...20 mA) || +/- 0.02 %FS/°C+/- 10 V)
- Type Of Cable
- shielded cable
- [Us] Rated Supply Voltage
- 24 V DC -15...20 %
- Voltage State 0 Guaranteed
- <= 5 V
- Voltage State 1 Guaranteed
- >= 15 V
- Wiring Mode
- 1 wire digital input/output
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation) || 55-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Ambient Air Temperature For Storage
- -25-70 °C
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Ip Degree Of Protection
- IP20IEC 61131-2
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- C-tick || CSA || cULus || GOST-R
- Relative Humidity
- 5-95 % without condensation
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
- Shock Resistance
- 15 gn 11 ms
- Standards
- IEC 61131-2 || CSA C22.2 No 142 || UL 508 || CSA C22.2 No 213
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511026EN
- Environmental Disclosure
- ENVPEP1511026EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Compatibility
- motion controller || logic controller
- Product Or Component Type
- mixed I/O module
- Range Compatibility
- Modicon LMC058 || Modicon M258
- Range Of Product
- Modicon TM5
