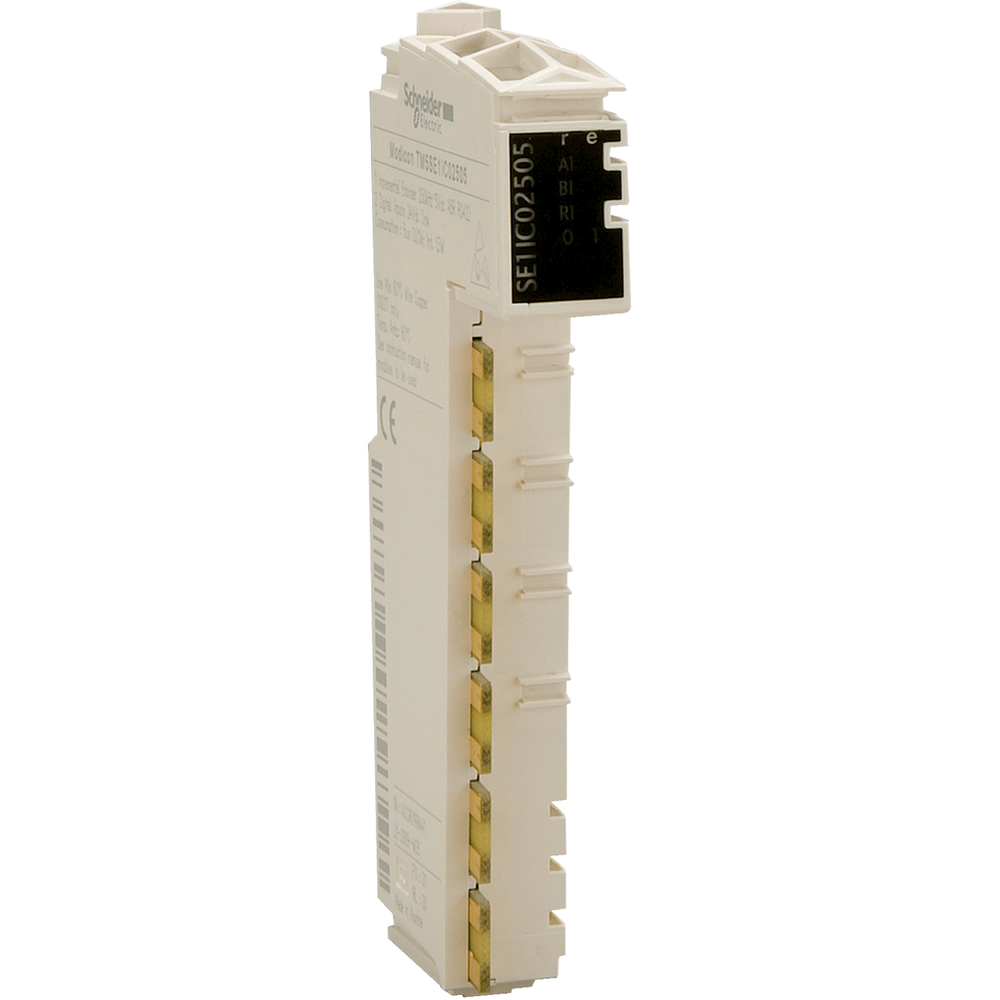

Schneider Electric TM5SE1MISC20005
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
counter module - encoder emulation channel (A/B) - 4 MHz
Schneider Electric TM5SE1MISC20005 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Counter Inputs Resolution
- 16 bits/32 bits
- Current Consumption
- 2 mA 5 V DC bus || 63 mA 24 V DC input/output
- Discrete Input Current
- 24 V
- Discrete Input Logic
- sink
- Discrete Input Voltage
- 24 V DC
- Input Filtering
- <= 200 ms
- Isolation
- 500 Vrms AC insulation between channel and bus
- Marking
- CE
- Maximum Cycle Time
- 2 ms
- Maximum Power Dissipation In W
- 1.51 W
- Net Weight
- 0.025 kg
- Product Compatibility
- motion controller
- Range Compatibility
- PacDrive LMC Eco || PacDrive LMC Pro || PacDrive LMC Pro2
Environment
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Ambient Air Temperature For Storage
- -25-70 °C
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Ip Degree Of Protection
- IP20IEC 61131-2
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- cULus || C-tick || GOST-R || CSA
- Relative Humidity
- 5-95 % without condensation
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
- Shock Resistance
- 15 gn 11 ms
- Standards
- UL 508 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Specifications
- Counting Frequency
- 4 MHz
- Discrete Input Number
- 2
- Encoder Type
- 1 incremental encoder
- Function Of Module
- 2 x 24 V DC RS422 sink auxiliary inputs || 24 V DC encoder power supply
- Product Or Component Type
- counter module
- Range Of Product
- Modicon TM5
