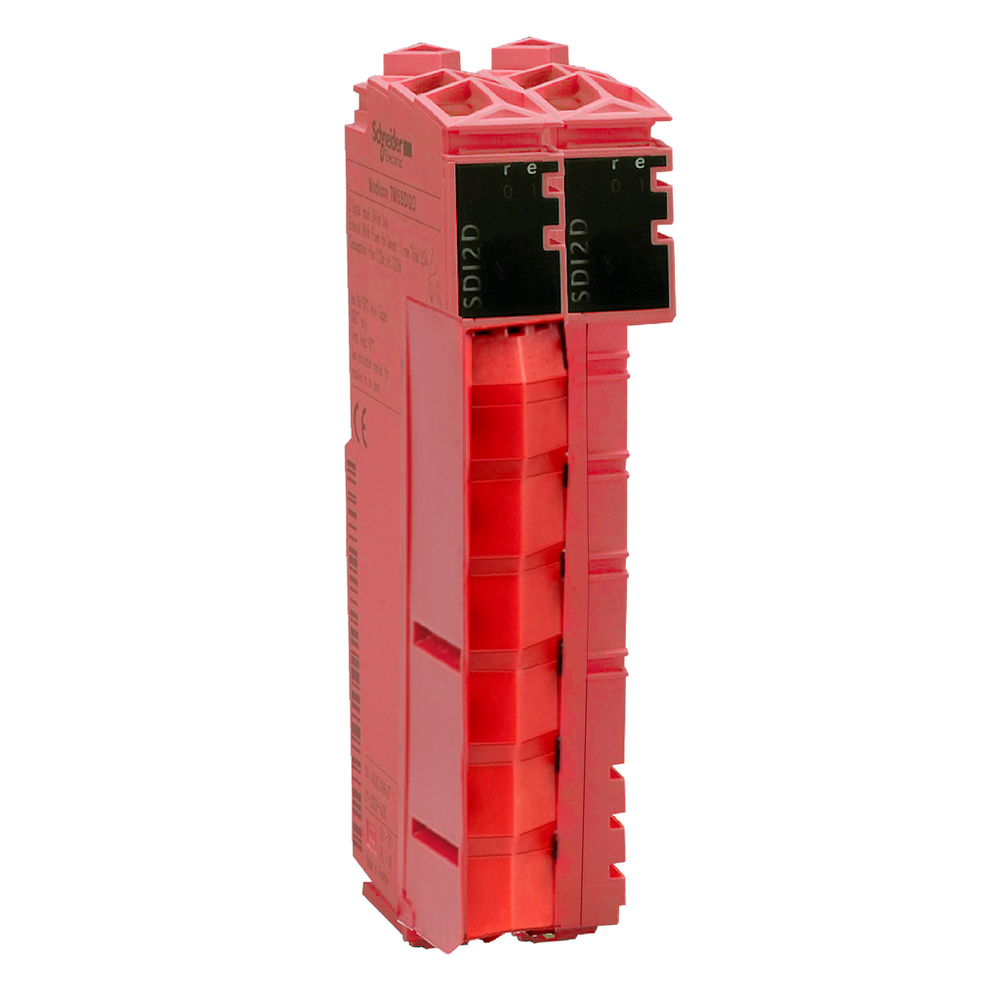

Schneider Electric TM5SDM8TBFS
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This Safety discrete IO module provides 6 inputs, 24V DC, sink and 2 outputs, 24V DC, 500mA. There is an isolation between channel and bus at 500V AC. This safety module, associated with TM5CSLC safety logic controller provides distributed safety solutions on Sercos bus up to SIL 3, Cat. 4, PL e, SIL CL3. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. Its housing colour is red. It weighs 0.066kg. It measure 75mm deep, 25mm wide, 99mm high. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM5CSLC safety logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.Safety discrete I/O module, Modicon TM5, digital 6I, 2O, 24V DC
Schneider Electric TM5SDM8TBFS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- Red
- Discrete Input Current
- 2.48-2.48 mA
- Discrete Input Logic
- sink
- Discrete Input Voltage Type
- DC
- Discrete Output Logic
- source
- Electrical Connection
- 2 wires
- Input Filtering
- <= 500 ms configurable by software || <= 150 ms hardware
- Input Impedance
- 9.68 kOhm
- Input Voltage Limits
- 20.4...28.8 V
- Isolation
- no insulation between channels || 500 Vrms AC insulation between channel and bus
- Local Signalling
- 1 LED green power supply || 1 LED red power supply || 2 LEDs red safety status || 2 LEDs red/orange output status || 6 LEDs green/red input status
- Marking
- CE
- Maximum Power Consumption In W
- 0.25 W bus || 1.4 W internal
- Net Weight
- 0.066 kg
- Output Voltage
- 24 V DC
- Output Voltage Limits
- 20.4...28.8 V
- Product Compatibility
- PacDrive LMC Eco || PacDrive LMC Pro 2 || PacDrive LMC Pro
- Protection Type
- short-circuit protection || overload protection
- Range Compatibility
- PacDrive LMC motion controller
- Safety Level
- SIL 3 IEC 61508 || SIL 3 IEC 62061 || PL = e EN 13849-1
- Safety Reliability Data
- PFD < 1E-5 || PFH < 1E-9 || MTTFd = 2500 years
- Voltage State 0 Guaranteed
- <= 5 V
- Voltage State 1 Guaranteed
- >= 15 V
Environment
- Ambient Air Temperature For Operation
- 0-50 °C vertical installation) || 0-55 °C horizontal installation)
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test, 4 kV on contact EN/IEC 61000-4-2 || conducted and radiated emissions CISPR 11 || electrostatic discharge immunity test, 8 kV in air EN/IEC 61000-4-2 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || electrical fast transient/burst immunity test, 1 kV I/O EN/IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV shielded cable EN/IEC 61000-4-4 || electrical fast transient/burst immunity test, 2 kV power lines EN/IEC 61000-4-4 || 1.2/50 µs shock waves immunity test, 0.5 kV differential mode EN/IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV common mode EN/IEC 61000-4-5 || conducted RF disturbances EN/IEC 61000-4-6
- Ip Degree Of Protection
- IP20EN 60529
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- CSA || cULus
- Relative Humidity
- 5-95 % without condensation
- Shock Resistance
- 15 gn 11 ms
- Standards
- CSA C22.2 No 142 || EN 13849-1 || IEC 61508 || IEC 62061 || IEC 61131-2
- Storage Altitude
- 0-3000 m
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511026EN
- Environmental Disclosure
- ENVPEP1511026EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Input Number
- 6
- Discrete Input Voltage
- 24 V
- Discrete Output Number
- 2
- Discrete Output Type
- transistor
- Product Or Component Type
- safety discrete I/O module
- Range Of Product
- Modicon TM5
