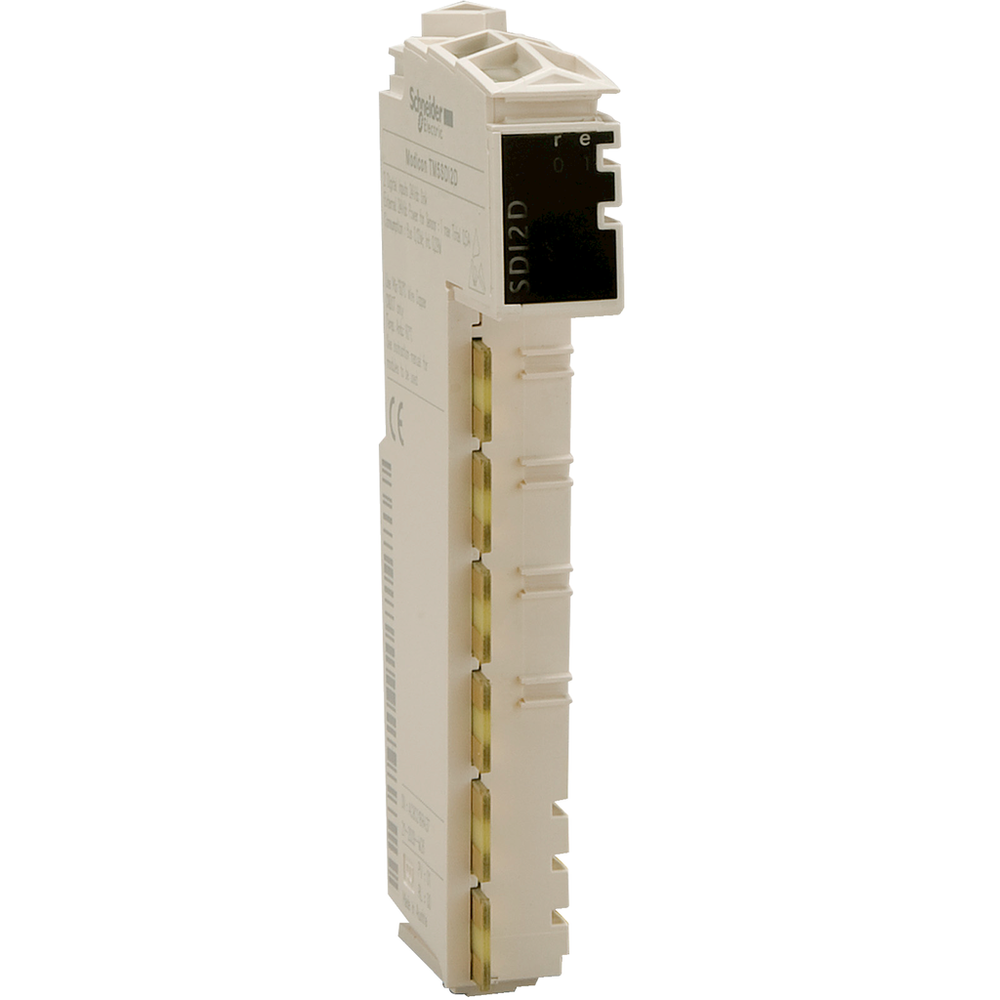

Schneider Electric TM5SDM12DT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete I/O module provides 8 discrete inputs with sink discrete input logic and 4 source transistor outputs. It provides a rated supply voltage of 24V DC, a current consumption of 42mA at 5V DCbus, 21mA at 24V DC all inputs on, a maximum power dissipation of 1.52W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It is furnished with single wire for electrical connection. It is an IP20 rated product. It is furnished with single wire for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.discrete IO module, Modicon TM5, 8 DI, 4O, 24V DC, 1 wire
Schneider Electric TM5SDM12DT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- White
- Current Consumption
- 42 mA 5 V DC bus || 21 mA 24 V DC all inputs On
- Current Per Channel
- 0.5 A
- Discrete Input Current
- 3.75-3.75 mA
- Discrete Input Logic
- sink
- Discrete Input Voltage Type
- DC
- Discrete Output Logic
- source
- Electrical Connection
- 1 wire
- Input Filtering
- <= 25 ms configurable by software || <= 100 ms hardware
- Input Impedance
- 6.4 kOhm
- Input Voltage Limits
- 20.4...28.8 V
- Isolation
- no insulation between channels || 500 Vrms AC insulation between channel and bus
- Local Signalling
- 1 LED green power supply || 1 LED red power supply || 4 LEDs yellow output status || 8 LEDs green input status
- Marking
- CE
- Maximum Current Per Output Common
- 2 A
- Maximum Leakage Current
- 5 µA when switched off
- Maximum Power Dissipation In W
- 1.52 W
- Maximum Voltage Drop
- <0.3 V at 500 mA output
- Net Weight
- 0.025 kg
- Output Voltage
- 24 V DC
- Output Voltage Limits
- 20.4...28.8 V
- Peak Output Current
- 12 A
- Product Compatibility
- PacDrive LMC Pro 2 || motion controller || PacDrive LMC Pro || PacDrive LMC Eco || logic controller
- Protection Type
- reverse polarity protection || short-circuit protection || overload protection
- Range Compatibility
- Modicon M258 || Modicon LMC058 || PacDrive LMC motion controller
- Response Time
- <= 300 µs from state 0 to state 1 output || <= 300 µs from state 1 to state 0 output
- Switching Frequency
- <= 500 Hz resistive
- Voltage State 0 Guaranteed
- <= 5 V
- Voltage State 1 Guaranteed
- >= 15 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C without derating horizontal installation) || -10-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
- Ambient Air Temperature For Storage
- -40-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test, 4 kV on contact EN/IEC 61000-4-2 || conducted RF disturbances EN/IEC 61000-4-6 || conducted and radiated emissions CISPR 11 || electrostatic discharge immunity test, 8 kV in air EN/IEC 61000-4-2 || susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || electrical fast transient/burst immunity test, 1 kV I/O EN/IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV shielded cable EN/IEC 61000-4-4 || electrical fast transient/burst immunity test, 2 kV power lines EN/IEC 61000-4-4 || 1.2/50 µs shock waves immunity test, 0.5 kV differential mode EN/IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV common mode EN/IEC 61000-4-5
- Ip Degree Of Protection
- IP20IEC 61131-2
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- GOST-R || cULus || C-tick || CSA
- Relative Humidity
- 5-95 % without condensation
- Shock Resistance
- 15 gn 11 ms
- Standards
- CSA C22.2 No 142 || UL 508 || CSA C22.2 No 213 || IEC 61131-2
- Storage Altitude
- 0-3000 m
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511026EN
- Environmental Disclosure
- ENVPEP1511026EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Input Number
- 8
- Discrete Input Voltage
- 24 V
- Discrete Output Number
- 4
- Discrete Output Type
- transistor
- Product Or Component Type
- discrete I/O module
- Range Of Product
- Modicon TM5
