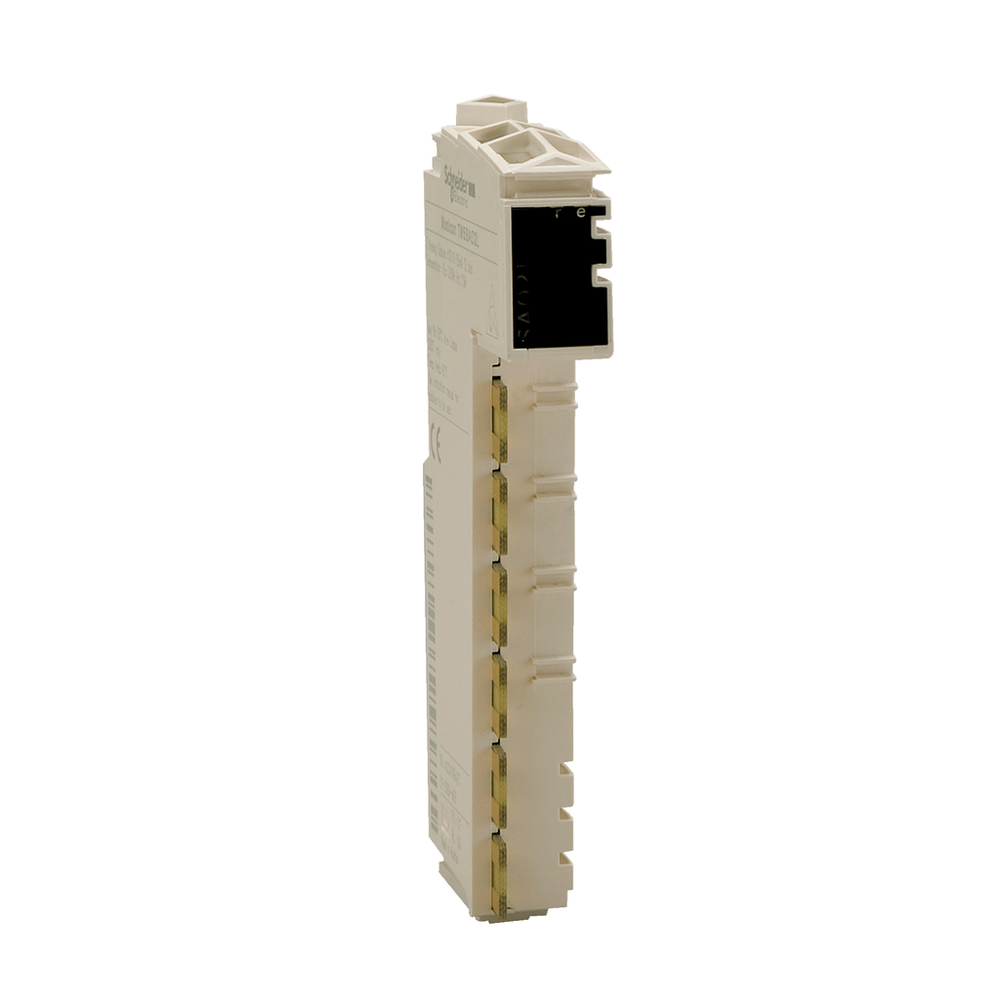

Schneider Electric TM5SAI4PH
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The analogue input module provides 4 inputs with 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 2mA at 5V DC bus, 46mA at 24V DC input/output. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It has a Pt 100/Pt 1000 temperature probe of -200°C to 850°C input type with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.analog input module, Modicon TM5, 4I, temperature probe PT100, PT1000, 16bits
Schneider Electric TM5SAI4PH is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- White
- Common Mode Rejection
- > 95 dB
- Current Consumption
- 2 mA 5 V DC bus || 46 mA 24 V DC input/output
- Isolation
- no insulation between channels || 500 Vrms AC insulation between channel and bus
- Local Signalling
- 1 LED green power supply || 1 LED red power supply || 4 LEDs green input status
- Marking
- CE
- Maximum Power Dissipation In W
- 1.11 W
- Measurement Error
- < 0.037 % of full scale - 200...850 °C Pt 100/Pt 1000 25 °C
- Measurement Resolution
- 0.1 °C
- Net Weight
- 0.025 kg
- Non-Linearity
- 0.001 %FS temperature probe
- Product Compatibility
- logic controller || motion controller
- Range Compatibility
- Modicon LMC058 || Modicon M258
- Supply
- internal
- Temperature Coefficient
- 0.004 %FS/°C temperature probe
- Type Of Cable
- shielded cable
- [Us] Rated Supply Voltage
- 24 V DC -15...20 %
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Ambient Air Temperature For Storage
- -25-70 °C
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Ip Degree Of Protection
- IP20IEC 61131-2
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- GOST-R || CSA || C-tick || cULus
- Relative Humidity
- 5-95 % without condensation
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
- Shock Resistance
- 15 gn 11 ms
- Standards
- UL 508 || CSA C22.2 No 213 || IEC 61131-2 || CSA C22.2 No 142
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511026EN
- Environmental Disclosure
- ENVPEP1511026EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 4
- Analogue Input Resolution
- 16 bits
- Analogue Input Type
- Pt 100/Pt 1000 temperature probe - 200...850 °C
- Product Or Component Type
- analog input module
- Range Of Product
- Modicon TM5
