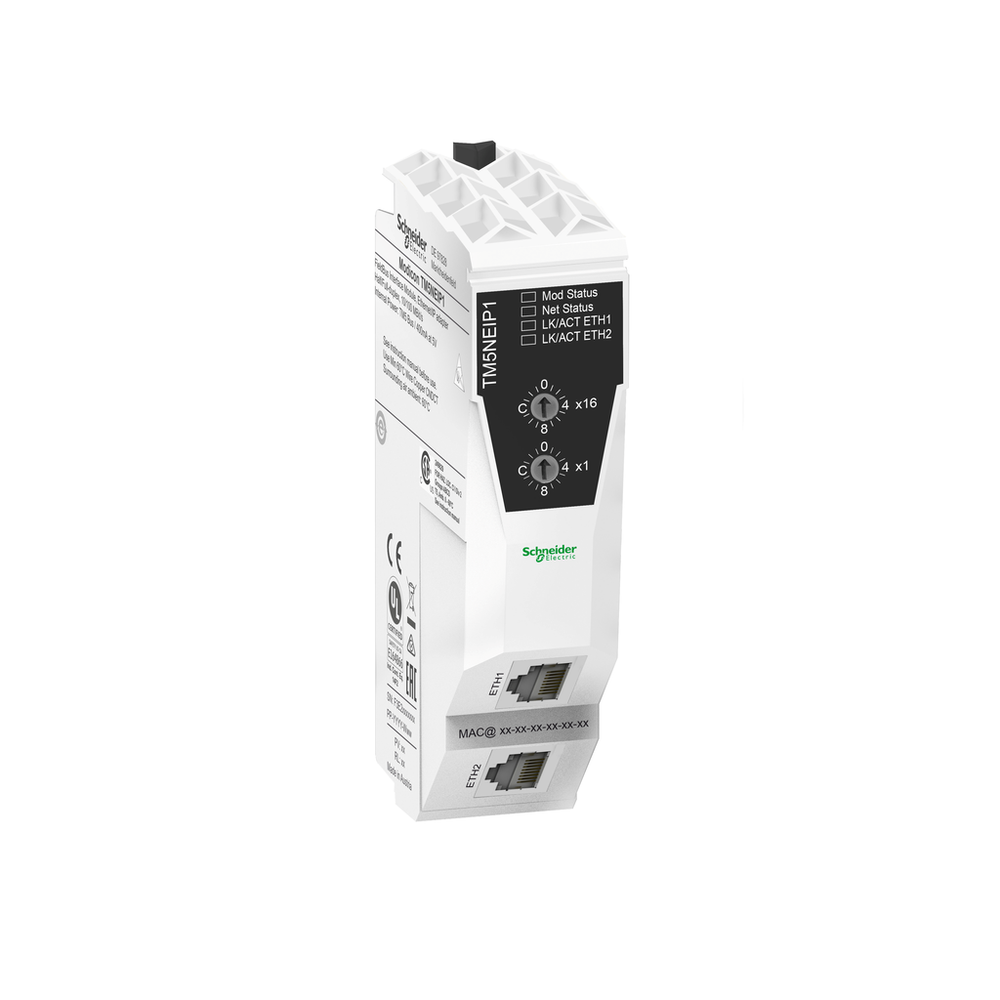

Schneider Electric TM5NEIP1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on Ethernet network, exchanging data between controller and distributed IO. It has an embedded Web server, an embedded cybersecurity (Achilles L1) and user access rights management via a Web server. This is a bus coupler module designed for creating distributed IO islands on the Ethernet network. This bus coupler works with an electronic power distribution module, a bus base and a terminal block. It has 2 isolated RJ45 connectors, with a 10 to 100 Mbps data transmission rate. It weighs 0.080kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with PacDrive LMC Eco/Pro2 motion controllers, Modicon M241/M251 logic controllers, and the Modicon M262 logic/motion controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.IP20 I/O Distributed Performance EtherNet/IP FieldBus Interface TM5 Module
Schneider Electric TM5NEIP1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connector Type
- RJ45 2 Ethernet daisy chain shielded
- Depth
- 75 mm
- Exchange Mode
- half duplex, full duplex, autonegotiation, auto MDIX
- Height
- 99 mm
- Integrated Connection Type
- Ethernet/IP
- Local Signalling
- 1 LED green/red network || 1 LED green Ethernet activity (ETH1) || 1 LED green Ethernet activity (ETH2) || 1 LED green/red module status
- Marking
- CE || EAC || UL || CSA
- Net Weight
- 0.025 kg
- Product Compatibility
- logic controller || motion controller
- Range Compatibility
- Modicon TM5 || Modicon TM7
- Transmission Rate
- 10/100 Mbit/s
- Web Server
- embedded
- Width
- 25 mm
Environment
- Ambient Air Temperature For Operation
- -20-50 °C vertical position) || -20-60 °C horizontal position)
- Ambient Air Temperature For Storage
- -40-85 °C
- Disturbance Radiated/Conducted
- 10 V 0.15...80 MHz EN/IEC 61000-4-6
- Electromagnetic Compatibility
- emission standard for industrial environments EN 61000-6-4 2011/A1 || immunity for industrial environments EN 61000-6-2
- Environmental Characteristic
- no corrosion resistance
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- UL 508 || CSA 22-2 No 142-M1987 || CSA 22-2 No 213-M1987
- Relative Humidity
- 5-95 % non-condensing
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80 MHz...2 GHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 4 kV contact discharge EN/IEC 61000-4-2 || 8 kV air discharge EN/IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV EN/IEC 61000-4-4 power lines) || 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable)
- Shock Resistance
- 147 m/s² 11 ms
- Standards
- EN 61131-2:2007 || UL 508
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 1 kV in common mode 24 V DC EN/IEC 61000-4-5 || 2 kV in common mode 230 V AC EN/IEC 61000-4-5 || 0.5 kV in differential mode 24 V DC EN/IEC 61000-4-5 || 1 kV in differential mode 230 V AC EN/IEC 61000-4-5
- Vibration Resistance
- 9.8 m/s² constant acceleration 8.4-150 Hz || 3.5 mm constant amplitude 5-84 Hz 35 x 15 mm symmetrical DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511025EN
- Environmental Disclosure
- ENVPEP1511025EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- Ethernet module
- Product Specific Application
- bus coupler module
