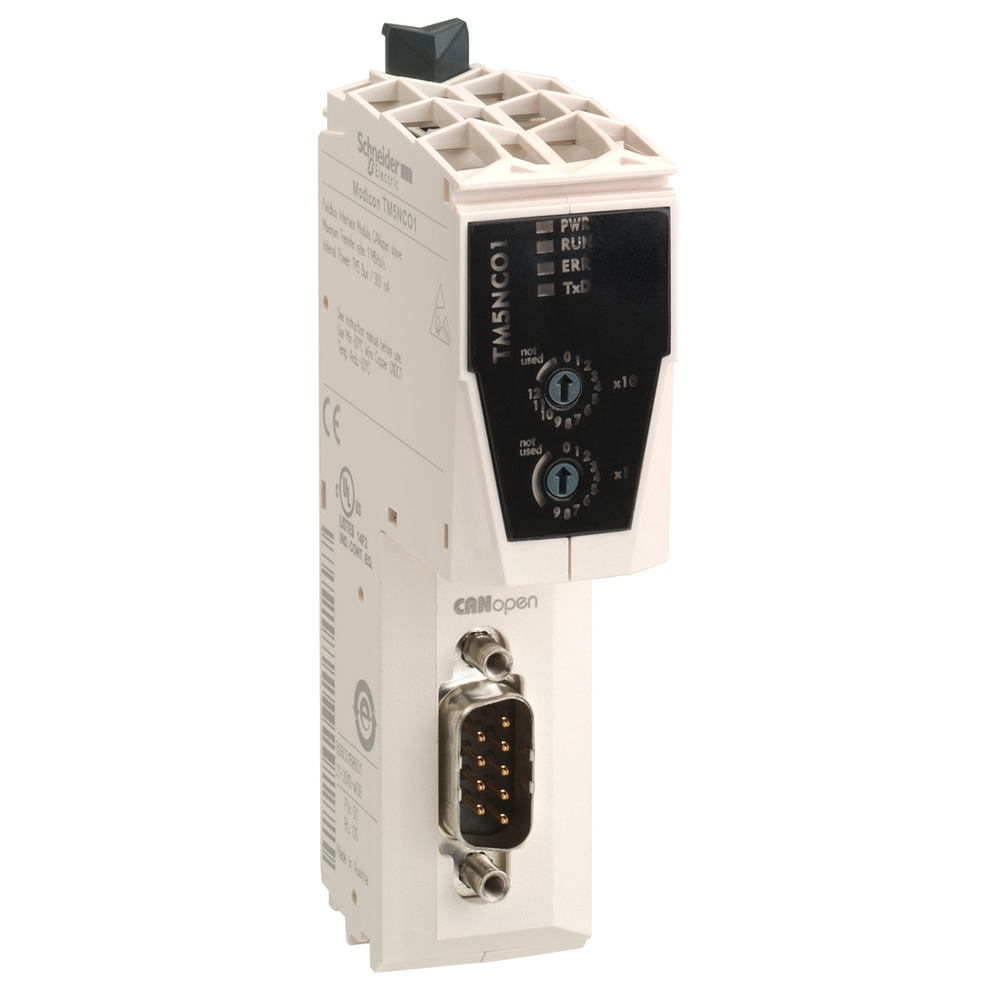

Schneider Electric TM5NCO1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on CANopen fieldbus, exchanging data between controller and distributed IO. Its access method is based on CSMA-MA, multi-master protocol. This is a bus coupler module designed for creating distributed IO islands on the Canopen fieldbus. This bus coupler works with an electronic power distribution module, a bus base and a terminal block. It has a 9-way SUB-D connector ISO 11898, with a 10 to 1000 Kbps data transmission rate. It weighs 0.080kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 logic controllers, Modicon LMC058/LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.CANopen communication module, Modicon TM5, FieldBus Interface
Schneider Electric TM5NCO1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- White
- Current Consumption
- 300 mA
- Device Composition
- interface module || bus base ordered separately || power supply ordered separately || terminal block ordered separately
- Electrical Connection
- removable spring terminal block
- Integrated Connection Type
- 1 isolated serial link, male SUB-D 9 CANopen, 10, 20, 50, 125, 250, 500, 800, 1000 Kbit/s and autodetected
- Local Signalling
- 1 LED green/red power supply (PWR) || 1 LED green/red CAN status (RUN) || 1 LED red CAN status (ERROR) || 1 LED yellow controller communication status on TM5 bus (TxD)
- Marking
- CE
- Maximum Power Dissipation In W
- 1.5 W
- Net Weight
- 0.05 kg
- Product Compatibility
- motion controller || logic controller
- Range Compatibility
- Modicon LMC058 || Modicon LMC078 || Modicon M258
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C without derating horizontal installation) || -10-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
- Ambient Air Temperature For Storage
- -40-70 °C
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Ip Degree Of Protection
- IP20IEC 61131-2
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- cULus || C-tick || CSA || GOST-R
- Relative Humidity
- 5-95 % without condensation
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80 MHz...2 GHz IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
- Shock Resistance
- 15 gn 11 ms
- Standards
- CSA C22.2 No 213 || IEC 61131-2 || UL 508 || CSA C22.2 No 142
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511025EN
- Environmental Disclosure
- ENVPEP1511025EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- CANopen communication module
- Range Of Product
- Modicon TM5
