Schneider Electric TM5C24D12R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

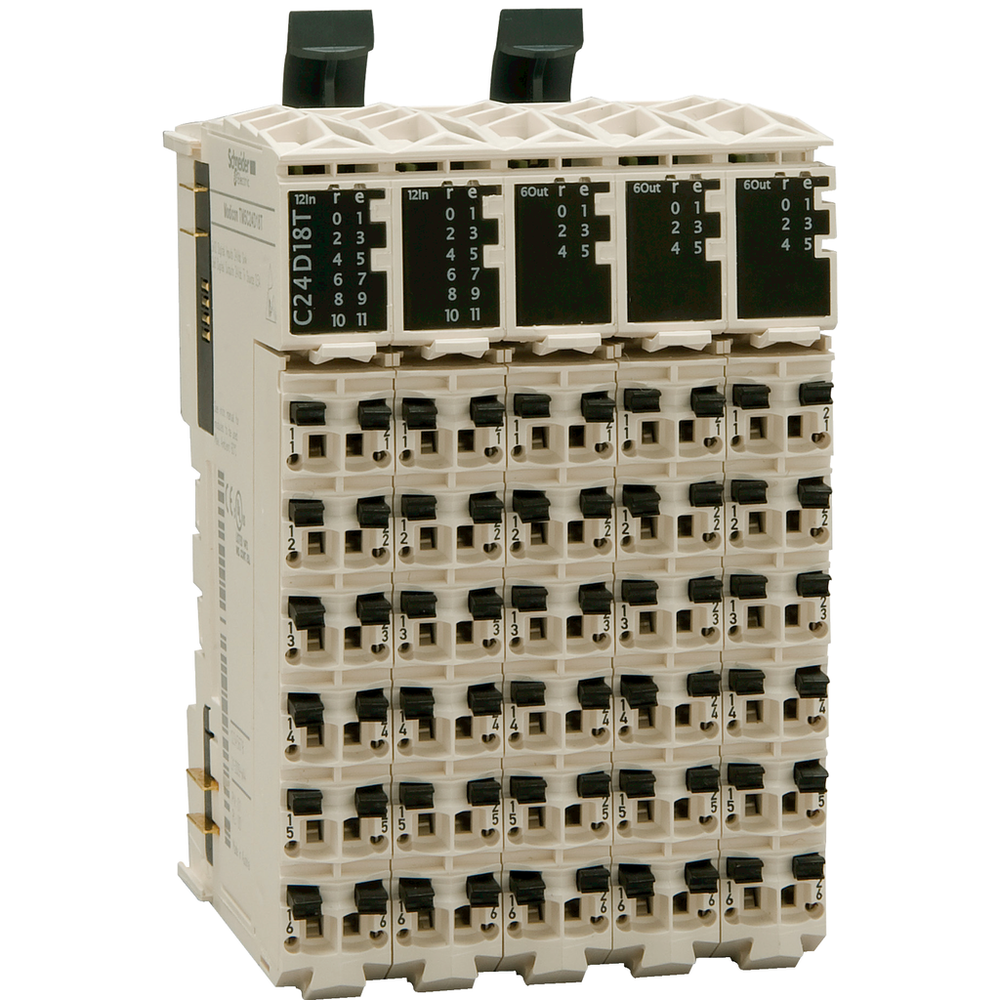

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block features 24 discrete inputs with sink logic and 12 discrete relay outputs with sink/source logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 2 module(s) x 6 relay output with voltage of 30V DC, 240V AC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.compact I/O expansion block, Modicon TM5, 36 IO, 24 DI, 12 DO relay
Schneider Electric TM5C24D12R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Number
- 0
- Color
- White
- Current Consumption
- 68 mA 5 V DC bus || 165 mA 24 V DC input/output
- Discrete Input Current
- 3.75 mA
- Discrete Input Logic
- sink
- Discrete Input Number
- 24
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Discrete Output Current
- 2 A per output
- Discrete Output Function
- 1 NO
- Discrete Output Logic
- source or sink
- Discrete Output Number
- 12
- Discrete Output Type
- relay
- Disturbance Radiated/Conducted
- CISPR 11
- Electrical Connection
- removable spring terminal block
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Enclosure Material
- Plastic
- Input Filtering
- <= 100 ms hardware || <= 25 ms configurable by software
- Input Impedance
- 6.4 kOhm
- Input/Output Number
- 36
- Input/Output Number Of Splitter Box
- 24 I + 12 O
- Input Voltage Limits
- 20.4...28.8 V
- Isolation
- 500 Vrms AC insulation between channel and bus || no insulation between channels
- Local Signalling
- for input status 24 LEDs (green) || for power supply 4 LEDs (green) || for power supply 4 LEDs (red) || for output status 12 LEDs (yellow)
- Marking
- CE
- Maximum Power Dissipation In W
- 4.3 W
- Mechanical Durability
- 20000000 cycles
- Minimum Switching Current
- 10 mA 5 V DC
- Number Of Modules
- digital input 2 x 12 || relay output 2 x 6
- Output Voltage
- 30 V DC || 240 V AC
- Output Voltage Limits
- 24...36 V DC || 184...276 V AC
- Response Time
- <= 12 ms from state 0 to state 1 output || <= 10 ms from state 1 to state 0 output
- Surge Withstand
- 0.5 kV differential mode 24 V DC EN/IEC 61000-4-5 || 1 kV common mode 24 V DC EN/IEC 61000-4-5 || 1 kV differential mode 230 V AC EN/IEC 61000-4-5 || 2 kV common mode 230 V AC EN/IEC 61000-4-5
- Voltage State 0 Guaranteed
- <= 5 V
- Voltage State 1 Guaranteed
- >= 15 V
- Wiring Mode
- 1 wire discrete input
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-50 °C vertical installation) || -10-60 °C horizontal installation)
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP20IEC 61131-2
- Mounting Support
- DIN rail
- Net Weight
- 0.26 kg
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- cULus || GOST-R || CSA || C-tick
- Relative Humidity
- 5-95 % without condensation
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
- Shock Resistance
- 15 gn 11 ms
- Standards
- CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61131-2 || UL 508
- Storage Altitude
- 0-3000 m
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511024EN
- Environmental Disclosure
- ENVPEP1511024EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- compact I/O expansion block
- Range Of Product
- Modicon TM5
