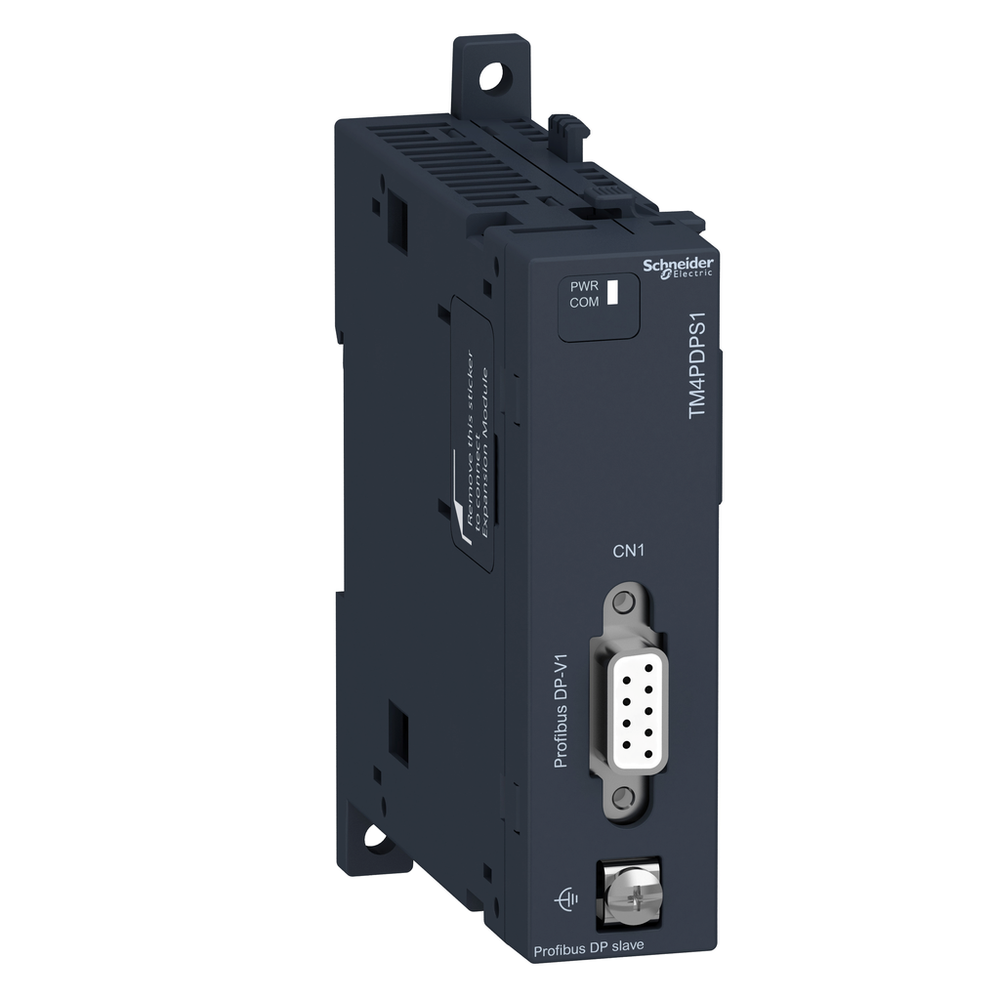

Schneider Electric TM4PDPS1

Complementary

• Communication Port Protocol
  • Profibus DP V0 || Profibus DP V1
• Current Consumption
  • 290 mA 5 V DC communication bus
• Depth
  • 90 mm
• Electrical Connection
  • screw connector terminal for connecting the functional ground || SUB-D 9 1 female connector for connecting Profibus
• Height
  • 90 mm
• Insulation
  • between bus and internal logic 1000 V DC
• Integrated Connection Type
  • Profibus DP female SUB-D 9
• Local Signalling
  • for power supply 1 LED (green/yellow) || for communication 1 LED (green/red)
• Marking
  • CE
• Mounting Support
  • top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Net Weight
  • 0.1 kg
• Power Dissipation In W
  • 1.5 W
• Product Compatibility
  • Modicon M241 logic controller || Modicon M251 logic controller
• Range Compatibility
  • Modicon M251 || Modicon M241
• Surge Withstand
  • 1 kV power lines (DC) common mode EN/IEC 61000-4-5 || 2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV I/O differential mode EN/IEC 61000-4-5
• Transmission Rate
  • 1.5 Mbit/s 200-200 m || 500 kbit/s 400-400 m || 187.5 kbit/s 1000-1000 m || 9.6...93.75 kbit/s 1200-1200 m || 3...12 Mbit/s 100-100 m
• Width
  • 25 mm

Environment

• Ambient Air Temperature For Operation
  • -10-55 °C horizontal installation || -10-50 °C vertical installation
• Ambient Air Temperature For Storage
  • -25-70 °C
• Electromagnetic Emission
  • conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || radiated emissions 80...50 dμV/m QP150-30000 kHz Marine specification (LR, ABS, DNV, GL) || radiated emissions 54 dBμV/m QP100-2000 MHz Marine specification (LR, ABS, DNV, GL) || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz EN/IEC 55011 || radiated emissions 60...54 dBμV/m QP30-100 MHz Marine specification (LR, ABS, DNV, GL) || radiated emissions 24 dBμV/m QP156-165 MHz Marine specification (LR, ABS, DNV, GL) || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A230-1000 MHz EN/IEC 55011
• Ip Degree Of Protection
  • IP20 with protective cover in place
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Pollution Degree
  • 2
• Product Certifications
  • C-tick || cULus
• Relative Humidity
  • 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
• Resistance To Electrostatic Discharge
  • 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air Marine specification (LR, ABS, DNV, GL) || 6 kV on contact Marine specification (LR, ABS, DNV, GL)
• Resistance To Fast Transients
  • 2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1.5 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)
• Shock Resistance
  • 15 gn 11 ms
• Standards
  • EN/IEC 61131-2 || UL 508 || EIA-485
• Storage Altitude
  • 0-3000 m
• Vibration Resistance
  • 1 mm 5-13.2 Hz symmetrical rail || 3 gn 8.7-150 Hz symmetrical rail || 1 mm 5-13.2 Hz panel mounting || 0.7 gn 13.2-100 Hz panel mounting

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1403009EN
• Environmental Disclosure
  • ENVPEP1403009EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Product Or Component Type
  • Profibus DP communication module
