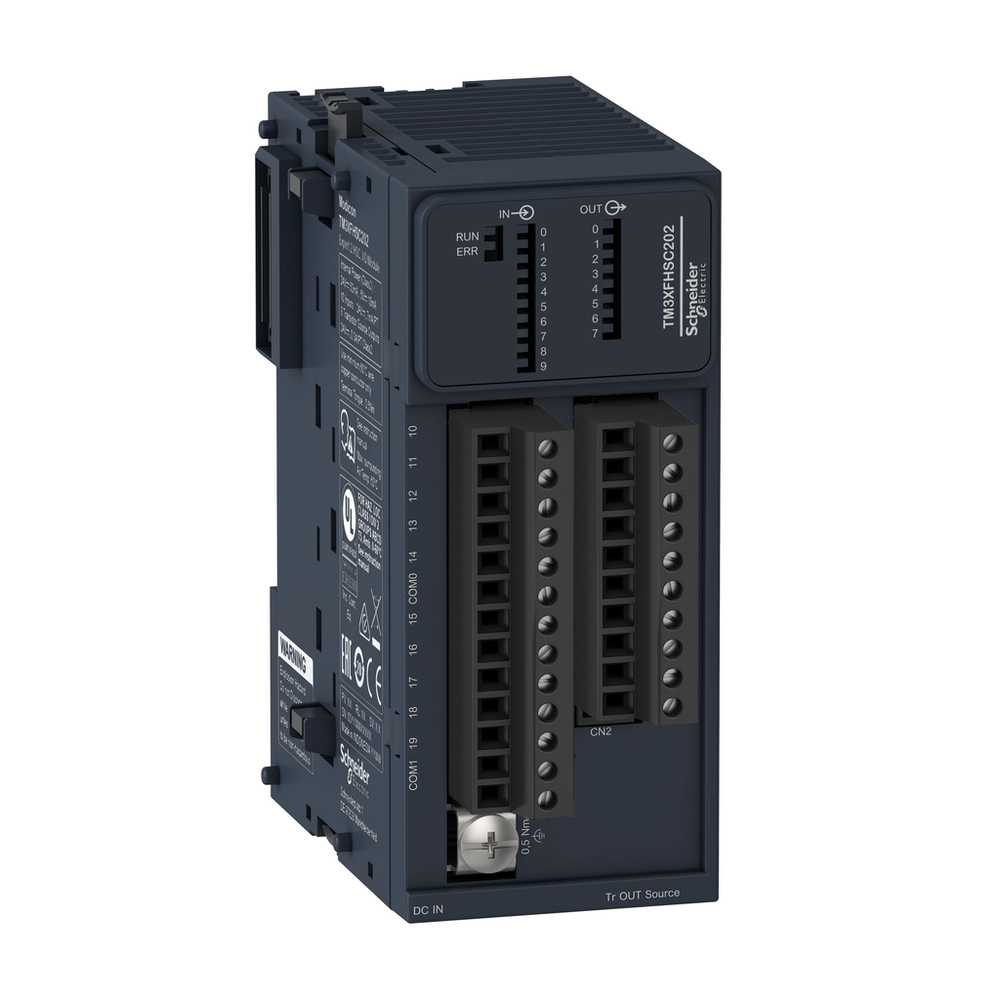

Schneider Electric TM3XFHSC202

Complementary

• Counting Frequency
  • 200 kHz
• Counting Mode
  • 2 main expert function (main counting function, frequency meter, period meter) || Max 8 simple counting function
• Current Consumption
  • 100 mA 5 V DC || 50 mA 24 V DC
• Depth
  • 85 mm
• Discrete Input Logic
  • sink or source
• Discrete Input Voltage
  • 24 V DC
• Discrete Output Current
  • 300 mA fast output Q0...Q7)
• Discrete Output Logic
  • source
• Electrical Circuit Type
  • standard input || latch input
• Event Management
  • 8 maximum per PLC <= 100 µs || Thresholds < 10 µs
• Height
  • 90 mm
• Local Signalling
  • 1 LED I/O || 1 LED RUN || 1 LED ERR
• Mounting Support
  • top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Net Weight
  • 150 g
• Output Protection Type
  • against overload and short-circuits
• Output Voltage
  • 24 V DC transistor output
• Output Voltage Limits
  • 30 V DC
• Reset
  • automatic reset
• Services
  • HSC simple One shot/Modulo || HSC main single phase One shot/Modulo/Event counting || HSC main dual phase Modulo/Free-large || period meter Edge to Edge, Edge to Opposite
• Width
  • 39 mm

Environment

• Ambient Air Temperature For Operation
  • -20-60 °C horizontal installation || -20-50 °C vertical installation
• Ambient Air Temperature For Storage
  • -40-85 °C
• Electromagnetic Emission
  • conducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011 || conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011 || conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011
• Ip Degree Of Protection
  • IP20 with protective cover in place
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Pollution Degree
  • 2
• Product Certifications
  • CSA || cULus || IACS E10 || RCM || CE || UKCA || EAC
• Relative Humidity
  • 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz EN/IEC 61000-4-4
• Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
• Resistance To Electrostatic Discharge
  • 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
• Resistance To Fast Transients
  • 2 kV alimentation cableEN/IEC 61000-4-4 || 1 kV Ethernet lineEN/IEC 61000-4-4 || 1 kV serial linkEN/IEC 61000-4-4 || 1 kV inputEN/IEC 61000-4-4 || 1 kV transistor outputEN/IEC 61000-4-4
• Shock Resistance
  • 15 gn 11 ms
• Standards
  • CSA C22.2 No 142 || ANSI/ISA 12-12-01 || UL 1604 || CSA C22.2 No 213 || EN/IEC 61131-2:2007 || UL 508
• Storage Altitude
  • 0-3000 m
• Vibration Resistance
  • 3.5 mm 2-8.4 Hz DIN rail || 1 gn 8.4-200 Hz DIN rail || 3.5 mm 2-8.4 Hz panel || 1 gn 8.4-200 Hz panel

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1904007EN
• Environmental Disclosure
  • ENVPEP1904007EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Discrete I/O Number
  • 18
• Number Of Input Channels
  • 10
• Number Of Output Channels
  • 8
• Product Or Component Type
  • module hight speed counting
• Range Compatibility
  • Modicon M262
• Range Of Product
  • Modicon TM3
• [Us] Rated Supply Voltage
  • 24 V DC external supply - 15...20 %)
