Description

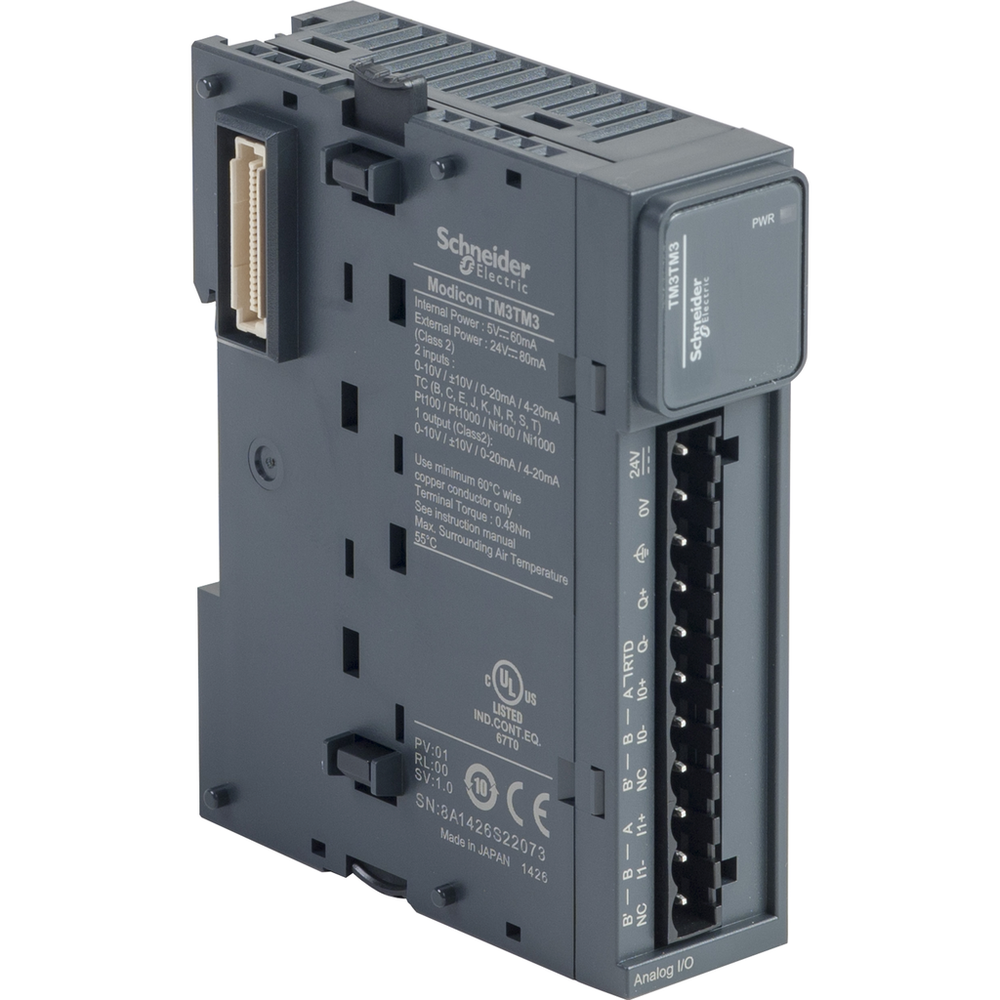

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 2 inputs, 1 output with 16bit, 15bit + sign input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 60mA, 55mA at 5V DC via bus connector, 55mA, 80mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs, outputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.analog IO module, Modicon TM3, 2 analog or temperature inputs, 1 analog output, screw, 24V DC
Schneider Electric TM3TM3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C || +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C || +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C || +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C || +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C || +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C || +/- 0.1 % of full scale at 25 °C for analogue input voltage/current || +/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C || +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe || +/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C || +/- 0.1 % of full scale at 25 °C for thermocouple B 300...1820 °C || +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C || +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C || +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C || +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C || +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C || +/- 0.1 % of full scale at 25 °C for analogue output voltage/current
- Analogue Input Resolution
- 16 bits || 15 bits + sign
- Analogue Output Resolution
- 12 bits
- Conversion Time
- 100 ms + 100 ms per channel + 1 controller cycle time thermocouple || 100 ms + 100 ms per channel + 1 controller cycle time temperature probe || 10 ms + 10 ms per channel + 1 controller cycle time voltage/current
- Cross Talk
- <= 1 LSB
- Current Consumption
- 55 mA 24 V DC via external supply no load || 55 mA 5 V DC via bus connector no load || 60 mA 5 V DC via bus connector full load || 80 mA 24 V DC via external supply full load
- Depth
- 70 mm
- Electrical Connection
- 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs, outputs and supply
- Height
- 90 mm
- Input Impedance
- <= 50 Ohm current || >= 1 MOhm voltage || >= 1 MOhm thermocouple || >= 1 MOhm temperature probe
- Insulation
- between input and supply 1500 V AC || between input and internal logic 500 V AC || between output and supply 1500 V AC || between output and internal logic 500 V AC
- Load Impedance Ohmic
- 1 kOhm voltage || 300 Ohm current
- Load Type
- resistive
- Local Signalling
- for PWR 1 LED (green)
- Lsb Value
- 0.15 mV 0...10 V voltage || 0.30 mV - 10...10 V voltage || 0.30 µA 0...20 mA current || 0.244 µA 4...20 mA current || 0.1 °C temperature probe || 0.1 °C thermocouple || 2.44 mV 0...10 V voltage || 4.88 mV - 10...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current
- Marking
- CE
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Net Weight
- 0.115 kg
- Non-Linearity
- +/- 0.01 %FS analog output || +/- 0.1 %FS analog input
- Output Ripple
- 20 mV
- Permissible Continuous Overload
- 13 V voltage || 40 mA current
- Repeat Accuracy
- +/-0.5 %FS input || +/- 0.4 %FS output
- Sampling Duration
- 10 ms voltage/current || 100 ms voltage/current || 100 ms thermocouple || 100 ms temperature probe
- Stabilisation Time
- 1 ms
- Supply Voltage Limits
- 20.4-28.8 V
- Surge Withstand
- 1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 0.5 kV I/O differential mode EN/IEC 61000-4-5
- Temperature Drift
- +/- 0.006 %FS/°C
- Type Of Cable
- twisted shielded pairs cable <30 m input/output
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 23.6 mm
Environment
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation || -10-35 °C vertical installation
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Emission
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2
- Product Certifications
- CE || UKCA || RCM || EAC || cULus || cULus HazLoc
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV EN/IEC 61000-4-4 I/O)
- Resistance To Magnetic Fields
- 30 A/m EN/IEC 61000-4-8
- Shock Resistance
- 15 gn 11 ms
- Standards
- EN/IEC 61131-2
- Storage Altitude
- 0-3000 m
- Vibration Resistance
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1402009EN
- Environmental Disclosure
- ENVPEP1402009EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 2
- Analogue Input Type
- current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V || thermocouple - 200...1000 °C thermocouple J || thermocouple - 200...1300 °C thermocouple K || thermocouple 0...1760 °C thermocouple R || thermocouple 0...1760 °C thermocouple S || thermocouple 0...1820 °C thermocouple B || thermocouple - 200...400 °C thermocouple T || thermocouple - 200...1300 °C thermocouple N || thermocouple - 200...800 °C thermocouple E || thermocouple 0...2315 °C thermocouple C || Ni 100/Ni 1000 temperature probe - 60...180 °C || Pt 100 temperature probe - 200...850 °C || Pt 1000 temperature probe - 200...600 °C
- Analogue Output Number
- 1
- Analogue Output Type
- current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
- Product Or Component Type
- input/output analog module
- Range Compatibility
- Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
- Range Of Product
- Modicon TM3
