Schneider Electric TM3SAF5R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

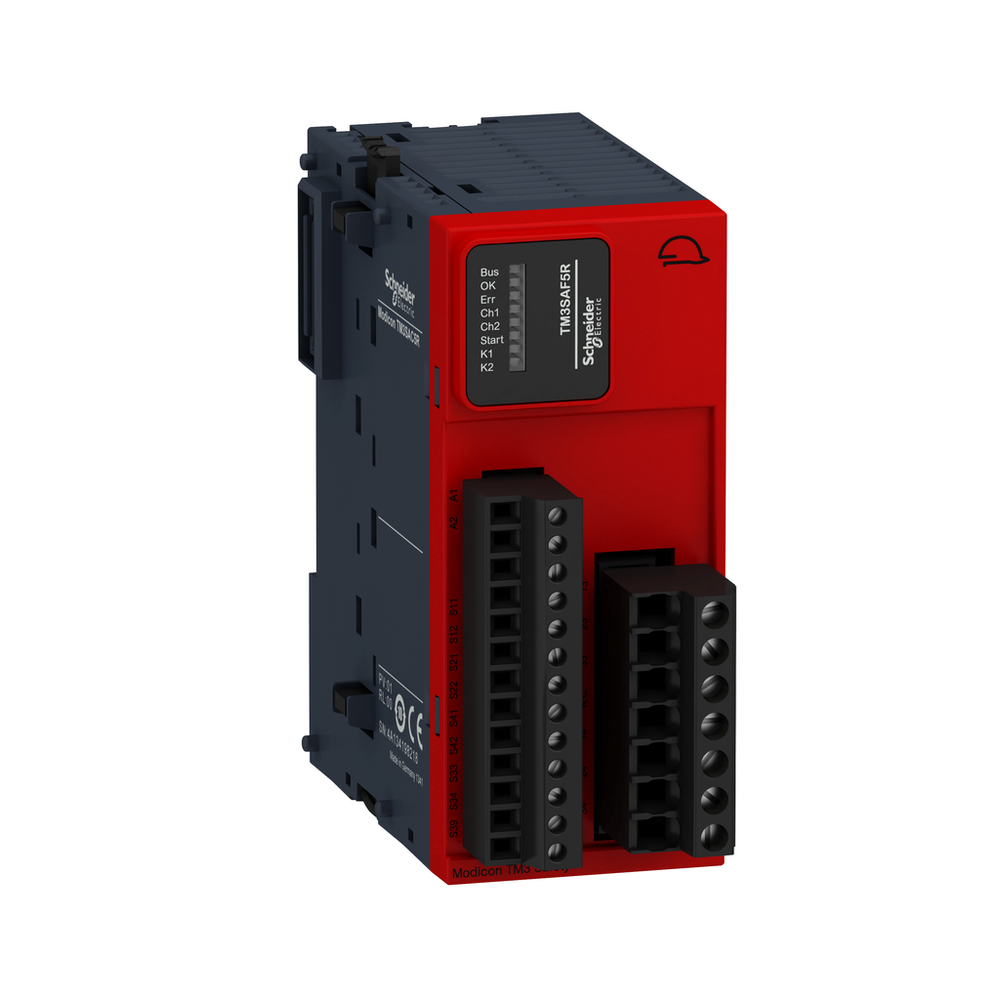

This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.safety module, Modicon TM3, 1 function, Cat 4 PL e, SIL CL3, screw, 24V DC
Schneider Electric TM3SAF5R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 4 A gG or gL relay output EN/IEC 60947-5-1 || 6 A fast blow relay output EN/IEC 60947-5-1
- Breaking Capacity
- 4 A 24 V 50 ms DC-13 relay output
- 360 VA holding AC-15 B300 relay output || 3600 VA inrush AC-15 B300 relay output
- Connections - Terminals
- captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² flexible without cable end 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² solid without cable end 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals || captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals || captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals || captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals || captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.5 mm² flexible without cable end other terminals || captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.75 mm² solid without cable end other terminals || captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 0.34 mm² flexible with cable end, without bezel other terminals || captive screw clamp terminals, removable terminal block 2 x 0.5 mm² flexible with cable end, with double bezel other terminals
- Current Consumption
- 100 mA 24 V DC external supply
- Depth
- 73 mm
- Electrical Connection
- screw terminal
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to EN/IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to EN/IEC 61000-4-3 || magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8 || electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to EN/IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to EN/IEC 61000-4-4 || 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5 || conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 || radiated emission - test level: 40 dBµV/m class A (24 V) conforming to EN 55011 || radiated emission - test level: 47 dBµV/m class A (24 V) conforming to EN 55011
- Height
- 94 mm
- Input Protection Type
- internal, electronic
- [Ith] Conventional Free Air Thermal Current
- 18 A
- Local Signalling
- for user 8 LEDs (green/red)
- Marking
- CE || UL || EFUP 10 || EAC || RCM || TÜV || CSA
- Maximum Cable Distance Between Devices
- 30 m
- Maximum Response Time On Input Open
- 40 ms
- Maximum Switching Voltage
- 230 V AC-15 50 Hz relay instantaneous opening) || 24 V DC-13 relay instantaneous opening)
- Minimum Output Current
- 10 mA relay output
- Mounting Support
- top hat type TH35-7.5 rail IEC 60715 || top hat type TH35-15 rail IEC 60715 || wall mount using attached fasteners
- Net Weight
- 0.19 kg
- Number Of Safety Circuits
- 3 NO relay instantaneous opening
- Output Thermal Current
- 6 A per relay relay output
- Output Type
- relay instantaneous opening, 3 NO, potential free
- Output Voltage
- 10 V relay output
- Power Consumption In W
- 0.2 W 5 V DC || 3.6 W 24 V DC
- Product Certifications
- EAC || CSA Haz Loc Class 1 Division 2 (pending) || RCM || TÜV || UL 61010-2-201 || CSA 61010-2-201 (pending) || ANSI Haz Loc Class 1 Division 2 (pending)
- Safety Reliability Data
- DC = 95 % EN/ISO 13849-1 || PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A || PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A || MTTFd = 500 years EN/ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A || MTTFd = 85 years EN/ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A || SFF = 95 % IEC 61508-1 || HFT = 1 IEC 61508-1 || type = A IEC 61508-1
- Standards
- EN/ISO 13849-1:2008 || EN/ISO 13849-2:2012 || EN/IEC 62061:2005 || EN/IEC 61508:2010 || EN/IEC 60947-5-1:2010 || EN/IEC 61131-2:2007 || EN/IEC 60204-1:2005 || EN/IEC 60204-1:2009/A1 || IEC 61010-1:2010 || EN 50581:2012
- Synchronisation Time Between Inputs
- unlimited
- [Uc] Control Circuit Voltage
- 24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60647-5-1
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60647-5-1
- [Us] Rated Supply Voltage
- 24 V - 15...20 % DC
- Width
- 43.7 mm
Environment
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Emission
- radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3 || radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
- Ip Degree Of Protection
- IP20 terminals)EN/IEC 60529
- Mechanical Robustness
- bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz EN/IEC 61000-4-6
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 8 kV in air EN/IEC 61000-4-2 || 6 kV on contact EN/IEC 61000-4-2
- Resistance To Fast Transients
- 3 kV power lines (DC) DC)EN/IEC 61000-4-4 || 2 kV I/O linesEN/IEC 61000-4-4
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz EN/IEC 61000-4-8
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN 60204-1 || EN/ISO 13850 || EN 1088/ISO 14119
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 1 kV power lines (DC) differential mode EN/IEC 61000-4-5 DC || 1 kV power lines (DC) common mode EN/IEC 61000-4-5 DC
- Vibration Resistance
- +/- 3.5 mm 5-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403010EN
- Environmental Disclosure
- ENVPEP1403010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- TM3SAF
- Function Of Module
- emergency stop monitoring 1-channel wiring || emergency stop monitoring 2-channel wiring || monitoring of a movable guard with 2 switches and automatic start
- Product Or Component Type
- safety module
- Range Of Product
- Modicon TM3 Safety
- Safety Level
- can reach PL e/category 4 EN/ISO 13849-1 2008 || can reach PL e/category 4 EN/ISO 13849-2 2012 || can reach SILCL 3 EN/IEC 62061 2005 || can reach SIL 3 EN/IEC 61508 2010
- Safety Module Application
- for emergency stop and switch monitoring
