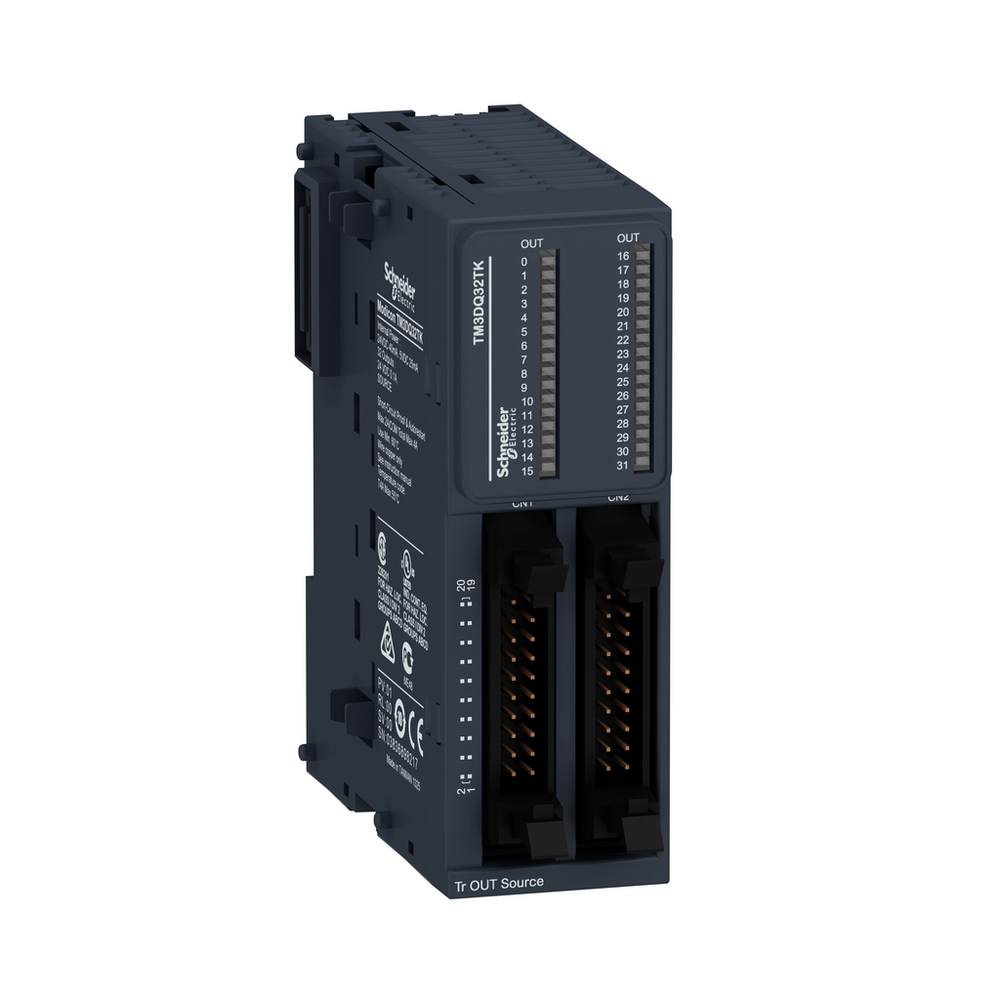

Schneider Electric TM3DQ32TK
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 32 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 40mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 500V AC, non-insulated between outputs. It is furnished with HE-10 connector outputs for electrical connection. It is an IP20 rated product. Its dimensions are 33.5mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.discrete output module, Modicon TM3, 32 outputs transistor PNP, HE10
Schneider Electric TM3DQ32TK is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 25 mA 5 V DC via bus connector at state on) || 40 mA 24 V DC via bus connector at state on)
- Depth
- 81.3 mm
- Discrete I/O Number
- 32
- Electrical Connection
- HE-10 connector for outputs
- Height
- 90 mm
- Insulation
- between output and internal logic 500 V AC || non-insulated between outputs
- Local Signalling
- for output status 1 LED per channel (green)
- Marking
- CE
- Maximum Cable Distance Between Devices
- unshielded cable <5 m transistor output
- Maximum Leakage Current
- 0.1 mA transistor output
- Maximum Tungsten Load
- <1.2 W transistor output
- Maximum Voltage Drop
- <0.4 V
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Net Weight
- 0.112 kg
- Response Time
- 450 µs (turn-on) || 450 µs (turn-off)
- Width
- 33.5 mm
Environment
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Emission
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
- Ip Degree Of Protection
- IP20 with protective cover in place
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2
- Product Certifications
- cULus || CE || UKCA || RCM || EAC || cULus HazLoc
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV I/OEN/IEC 61000-4-4
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz EN/IEC 61000-4-8
- Shock Resistance
- 15 gn 11 ms
- Standards
- EN/IEC 61131-2
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 1 kV I/O common mode EN/IEC 61000-4-5 DC
- Vibration Resistance
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1402009EN
- Environmental Disclosure
- ENVPEP1402009EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Output Current
- 100 mA transistor output
- Discrete Output Logic
- positive logic (source)
- Discrete Output Number
- 32
- Discrete Output Type
- transistor
- Discrete Output Voltage
- 24 V DC transistor output
- Product Or Component Type
- discrete output module
- Range Compatibility
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Range Of Product
- Modicon TM3
