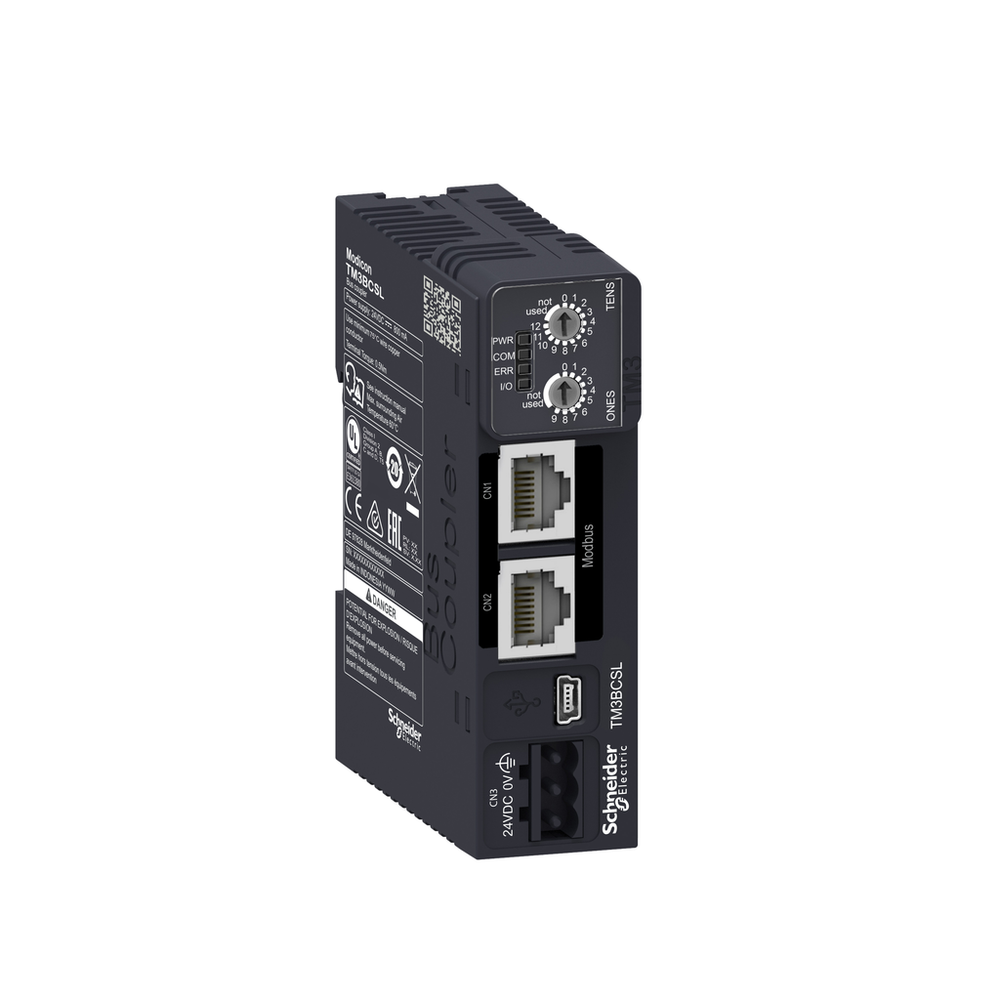

Schneider Electric TM3BCSL
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
bus coupler module, Modicon TM3, distributed IO, optimized, Serial Line interface, IP20
Schneider Electric TM3BCSL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Network Type
- Modbus
- Communication Port Protocol
- Modbus serial
- Communication Service
- Modbus slave device profile
- Connector Type
- RJ45 2 serial link daisy chain isolated || USB device port Mini-B
- Current Consumption
- 0.8 A 24 V DC internal supply maximum 7 expansion modules
- Depth
- 70 mm
- Exchange Mode
- half duplex
- Fixing Mode
- by clipping locks rail) || by screws mounting plate)
- Height
- 96.5 mm
- Local Signalling
- 1 LED green/red PWR (System Status) || 1 LED green/red COM (Run) || 1 LED green/red ERR (Error) || 1 LED green/red I/O status
- Net Weight
- 0.10 kg
- Product Certifications
- CE || cULus || EAC || RCM || UKCA || EU-RO MR
- Standards
- IEC 61131-2 || UL/CSA 61010-1 || UL/CSA 61010-2-201
- Topology
- daisy chain
- Transmission Rate
- 1.2...115.2 kbit/s
- Web Services
- web server, USB
- Width
- 27 mm
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC/EN 61010-2-201
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2
- Relative Humidity
- 10-95 % non-condensing
- Storage Altitude
- 0-3000 m
- Vibration Resistance
- 3M4 35 x 15 mm symmetrical DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1712005EN
- Environmental Disclosure
- ENVPEP1712005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Compatibility
- logic controller || motion controller
- Product Or Component Type
- I/O distributed module
- Product Specific Application
- bus coupler module
- Range Of Product
- Modicon TM3
