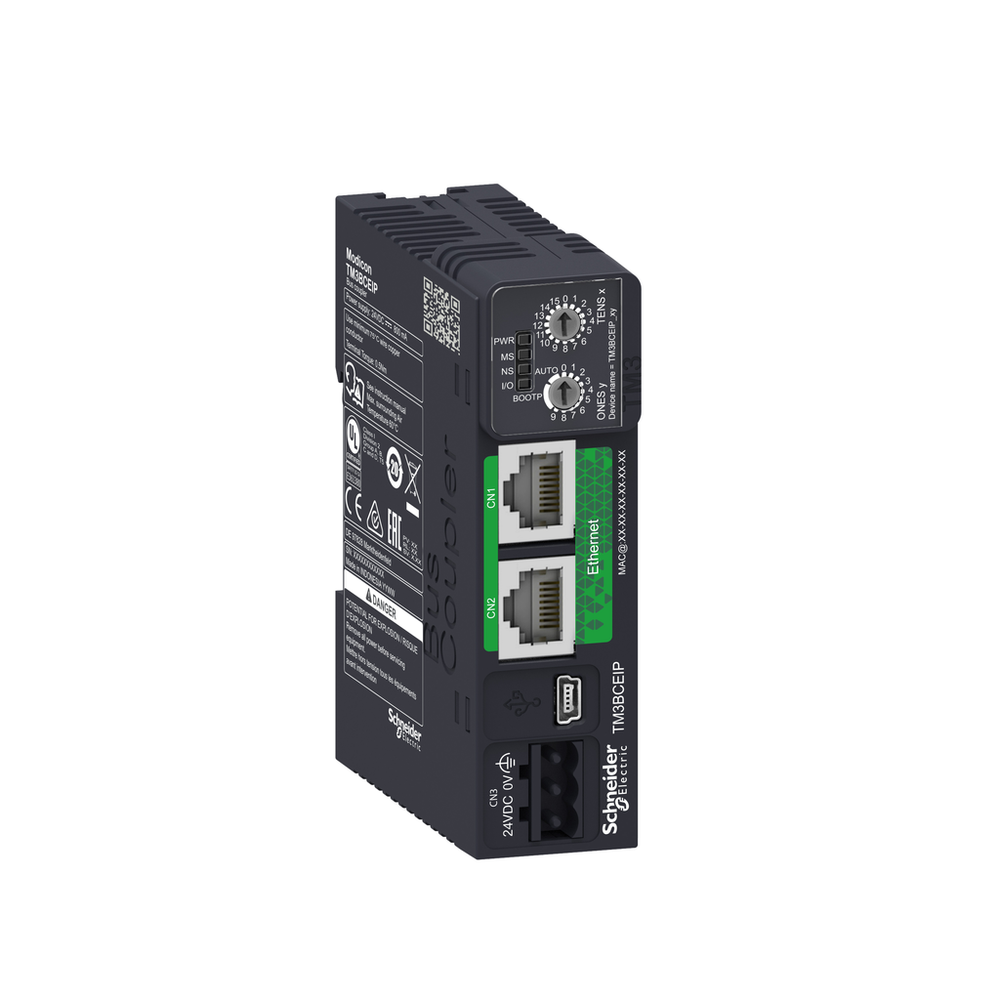

Schneider Electric TM3BCEIP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The I/O distributed module supports daisy chain topology. It offers half duplex, full duplex and auto negotiation exchange mode with 10/100Mbps data transmission rate. This processor provides web services like web server, ethernet and web server, USB. It features 1 LED for PWR (system status), 1 LED for MS (module status), 1 LED for NS (network status) and 1 LED for I/O status signaling. It is an IP20 rated product. Its dimensions are 27mm (width) x 70mm (depth) x 96.5mm (height). It weighs 0.10kg. It is suitable for bus coupler module. It is compatible with logic controller and motion controller. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. Boost the performance of controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241, M251 and M262 logic controllers.distributed IO module, Modicon TM3, IP20 optimized bus coupler, Ethernet interface
Schneider Electric TM3BCEIP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Network Type
- Ethernet IP || Modbus TCP || IPv4 (internet protocol)
- Communication Port Protocol
- Ethernet IP/Modbus TCP
- Communication Service
- Ethernet/IP adapter || Modbus TCP/IP server || RSTP (Ring topology support) || SNMP || web server || DHCP client || BOOTP || address conflict detection || FTP server
- Connector Type
- RJ45 2 Ethernet daisy chain isolated || USB device port Mini-B
- Current Consumption
- 0.8 A 24 V DC internal supply maximum 7 expansion modules
- Depth
- 70 mm
- Exchange Mode
- half duplex, full duplex, autonegotiation
- Fixing Mode
- by clipping locks rail) || by screws mounting plate)
- Height
- 96.5 mm
- Local Signalling
- 1 LED green/red PWR (System Status) || 1 LED green/red MS (Module Status) || 1 LED green/red NS (Network Status) || 1 LED green/red I/O status
- Net Weight
- 0.10 kg
- Port Ethernet
- 10/100BASE-T
- Product Certifications
- CE || cULus || EAC || RCM || UKCA || EU-RO MR
- Standards
- IEC 61131-2 || UL/CSA 61010-1 || UL/CSA 61010-2-201
- Topology
- daisy chain
- Transmission Rate
- 10/100 Mbit/s
- Web Services
- web server, Ethernet || web server, USB
- Width
- 27 mm
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC/EN 61010-2-201
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2
- Relative Humidity
- 10-95 % non-condensing
- Storage Altitude
- 0-3000 m
- Vibration Resistance
- 3M4 35 x 15 mm symmetrical DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1712005EN
- Environmental Disclosure
- ENVPEP1712005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Compatibility
- logic controller || motion controller
- Product Or Component Type
- I/O distributed module
- Product Specific Application
- bus coupler module
- Range Of Product
- Modicon TM3
