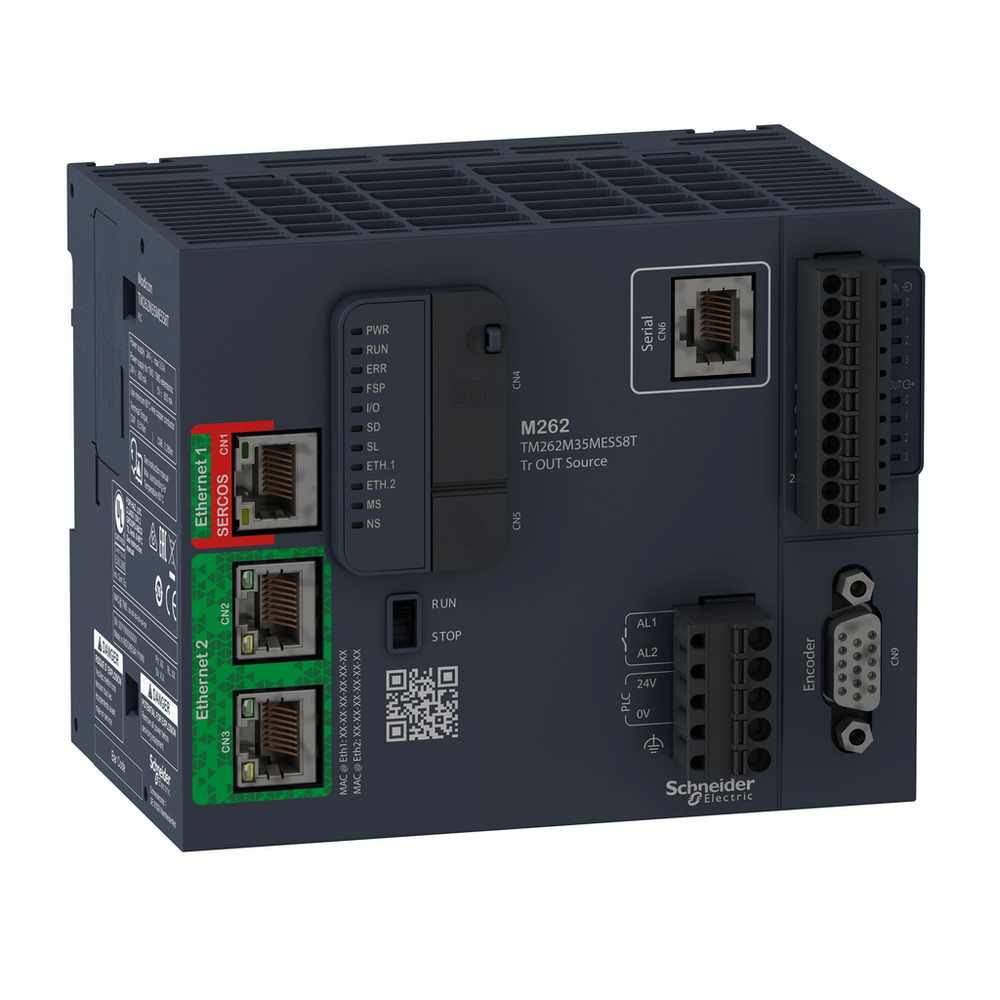

Schneider Electric TM262M35MESS8T

Complementary

• Accuracy
  • +/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
• Application Structure
  • 8 event tasks || 4 cyclic master tasks || 3 cyclic master tasks + 1 freewheeling task || 8 external event tasks
• Backup Time
  • 1000 h 25 °C
• Clock Drift
  • <= 10 s/month 25-25 °C
• Communication Port Protocol
  • EtherNet/IP adapter || EtherNet/IP scanner || Modbus TCP client/server || Modbus TCP IO scanner || Modbus TCP NVL || Ethernet RSTP || Modbus SL client/server || Modbus SL IO scanner || Modbus SL modem management || Machine Expert || ASCII manager || ASCII modem management || Sercos III master
• Communication Service
  • MQTTs || OPC UA server (Encrypt) || OPC UA client (Encrypt) || HTTPs Methods (API) || web server || web visu || TLS 1.2 || TLS 1.3 || SNTP || NTP client/server || FTP client/server || FTPs server || SQL client (remote access) || DHCP client || DHCP server || DNS client || POP3s client || SMTP client || SNMP client/server
• Configurable Filtering Time
  • 0.001 ms fast input || 0.002 ms fast input || 0.005 ms fast input || 0.01 ms fast input || 0.05 ms fast input || 0.1 ms fast input || 0.5 ms fast input || 1 ms fast input || 4 ms fast input || 12 ms fast input
• Cycle Time
  • 0.5 ms
• Data Backed Up
  • 1 GB built-in flash memory backup of user programs
• Data Storage Equipment
  • <= 32 GB SDHC card optional)
• Depth
  • 90 mm
• Discrete Input Current
  • 7.5 mA fast input
• Discrete Input Logic
  • sink
• Discrete Input Number
  • 4 , discrete input fast input IEC 61131-2 Type 1
• Discrete Input Voltage
  • 24 V
• Discrete Input Voltage Type
  • DC
• Discrete Output Current
  • 0.5 A fast output Q0...Q3)
• Discrete Output Logic
  • source
• Discrete Output Number
  • 4 transistor fast output
• Discrete Output Type
  • transistor
• Discrete Output Voltage
  • 24 V DC
• Electrical Connection
  • removable spring terminal block for inputs and outputs || removable spring terminal block for connecting the 24 V DC power supply
• Encoder Type
  • incremental encoder
• Execution Time For 1 Kinstruction
  • 0.003 ms
• Height
  • 100 mm
• Input Impedance
  • 2.81 kOhm input
• Inrush Current
  • 40 A
• Insulation
  • between fast input and internal logic 550 V AC || non-insulated between inputs || between output and internal logic 550 V AC || non-insulated between outputs || between input and output 550 V AC || between supply and internal logic 550 V AC || non-insulated between supply and ground
• Integrated Connection Type
  • Ethernet/Sercos 1 RJ45 10/100BASE-T || Ethernet 2 2 RJ45 100/1000BASE-T || serial link RJ45 RS232/RS485 || 1 encoder female SUB-D 15 RS422/SSI || Smart Communication Bus || TM3 IO bus || USB type mini B
• Local Signalling
  • for PWR 1 LED (green/red) || for RUN 1 LED (green/red) || for ERROR (fault) 1 LED (green/red) || for stop forced 1 LED (green/red) || for I/O error (I/O) 1 LED (green/red) || for SD card activity 1 LED (green/orange) || for SL activity 1 LED (green/orange) || for ETH1 state 1 LED (green/red) || for ETH2 state 1 LED (green/red) || for EIP MS 1 LED (green/red) || for EIP NS 1 LED (green/red) || for Sercos 1 LED (green/red)
• Maximum Cable Distance Between Devices
  • shielded cable <3 m fast input || shielded cable <3 m fast output || unshielded cable <50 m input || unshielded cable <50 m output || shielded cable <30 m RS485 link || shielded cable <15 m RS232
• Maximum Current Per Output Common
  • 0.5 A Q0...Q3 fast output
• Maximum Leakage Current
  • 10 µA output
• Maximum Number Of Connected Devices
  • EtherNet/IP <64 || Modbus TCP <64 || Modbus TCP/EtherNet/IP <128
• Maximum Number Of I/O Expansion Module
  • 7 TM3 IO module (remote I/O-Architecture) || 7 TM3 IO module (local I/O-Architecture) || 64 TM3, TM5 or TM7 IO island (distributed I/O-Architecture)
• Maximum Output Frequency
  • 300 kHz
• Maximum Tungsten Load
  • <1.5 W
• Memory Capacity
  • 32 MB program RAM || 32 MB OS/website RAM || 192 MB system memory RAM
• Mounting Support
  • top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Net Weight
  • 0.67 kg
• Output Voltage Limits
  • 30 V DC
• Overvoltage Protection
  • with
• Positioning Functions
  • libraries axes coordinated || libraries axes synchronous || Sercos 3 motion bus
• Power Consumption In W
  • 82 W
• Product Compatibility
  • external encoder 5/24 V DC no encoder power supply
• Protection Type
  • short-circuit and overload protection with automatic reset || reverse polarity protection || short-circuit protection
• Realtime Clock
  • with
• Reset Time
  • 200 ms automatic reset fast output
• Response Time
  • <= 1 µs turn-on, I0...I3 fast input || <= 1 µs turn-off, I0...I3 fast input || <= 1 µs turn-on, Q0...Q3 fast output || <= 1 µs turn-off, Q0...Q3 fast output
• Supply Voltage Limits
  • 20.4-28.8 V DC
• Surge Withstand
  • 1 kV power lines (DC) common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV relay output differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5 || 1 kV transistor output common mode EN/IEC 61000-4-5
• Transmission Rate
  • 115 kbit/s 15-15 m RS485 || 115 kbit/s 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet1 || 10/100/1000 Mbit/s Ethernet2
• Voltage State 0 Guaranteed
  • <= 5 V DC
• Voltage State 1 Guaranteed
  • >= 15 V DC
• Width
  • 125 mm

Environment

• Ambient Air Temperature For Operation
  • -20-60 °C horizontal installation) || -20-50 °C vertical installation) || -20-45 °C flat mounting)
• Ambient Air Temperature For Storage
  • -40-85 °C
• Electromagnetic Emission
  • conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBµV/m30-230 kHz EN/IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions230-1000 MHz EN/IEC 55011
• Immunity To Microbreaks
  • 0.01 ms
• Ip Degree Of Protection
  • IP20
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Pollution Degree
  • 2
• Product Certifications
  • CE || cULus || cULus HazLoc Class I Division 2 CSA 22-2 No 213 || RCM || EAC || Achilles || KC
• Relative Humidity
  • 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz EN/IEC 61000-4-4 || 3 V 0.1...80 MHz || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
• Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
• Resistance To Electrostatic Discharge
  • 4 kV on contact EN/IEC 61000-4-2 || 8 kV on air EN/IEC 61000-4-2
• Resistance To Fast Transients
  • 2 kV EN/IEC 61000-4-4 power lines) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link) || 1 kV EN/IEC 61000-4-4 input) || 1 kV EN/IEC 61000-4-4 transistor output)
• Shock Resistance
  • 15 gn 11 ms
• Standards
  • UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || CSA C22.2 No 213 || ANSI/ISA 12-12-01 || EN 61131-2
• Storage Altitude
  • 0-3000 m
• Vibration Resistance
  • 3.5 mm 2-8.4 Hz symmetrical rail || 1 gn 8.4-200 Hz symmetrical rail || 3.5 mm 2-8.4 Hz panel mounting || 1 gn 8.4-200 Hz panel mounting

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1904006EN
• Environmental Disclosure
  • ENVPEP1904006EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Discrete I/O Number
  • 8
• Product Or Component Type
  • motion controller
• Range Of Product
  • Logic/motion controller - Modicon M262
• Upstream Connectivity
  • IIoT-ready machine to cloud || connected machine to plant
• [Us] Rated Supply Voltage
  • 24 V DC - 15...20 %
