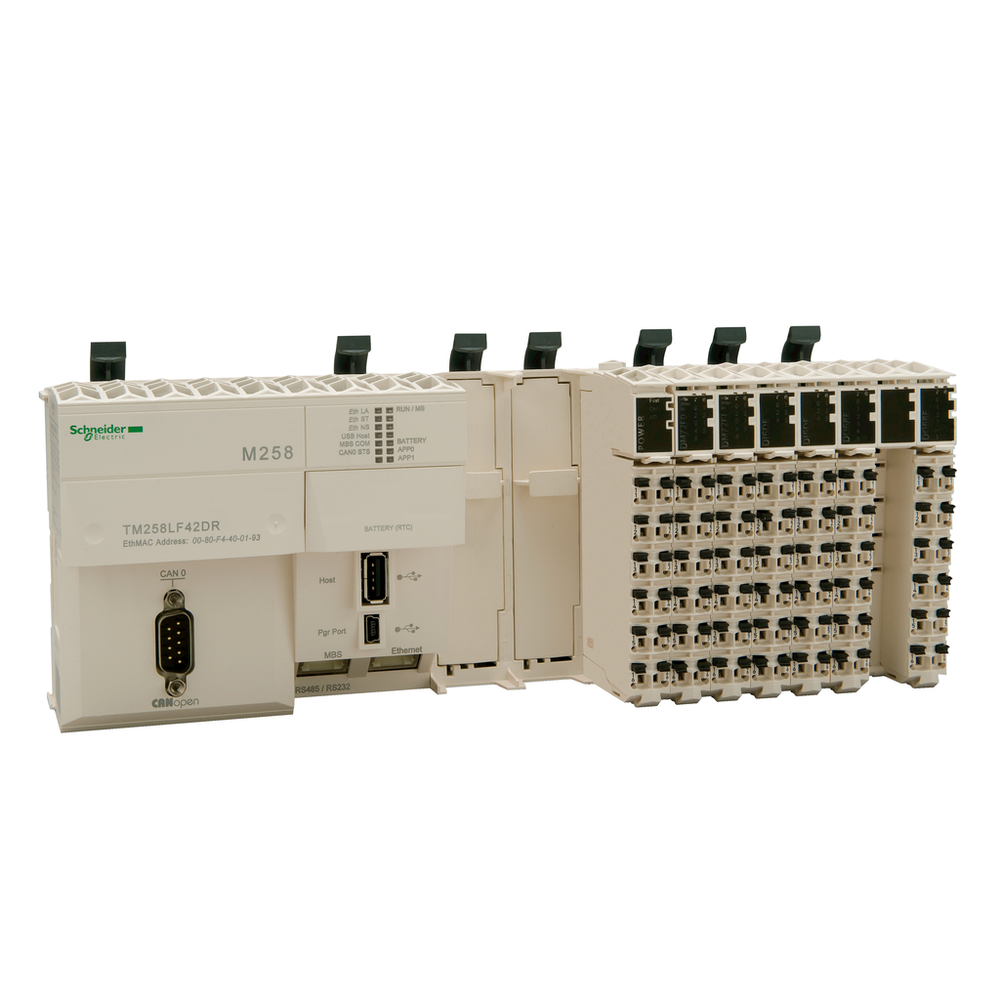

Schneider Electric TM258LF42DR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M258 range, an offer of logic controllers for high performance machine builders. It has 42 logic I/O and it is supplied with 24V dc, and embeds 5 communication ports, 1 RS232/RS485 serial link, 1 USB mini-B programming port, 1 USB type A program transfer port, 1 Ethernet port and 1 CANopen port. Plus 2 free slots PCI. It is supplied with I/O modules with a removable terminal block with locking lever and a display block showing the I/O states, power supply module with removable terminal block and locking lever. This controller embeds a performant CPU (22ns/inst), several communication ports as Ethernet & CANopen master and advanced built-in features as data logging, WebServer and FTP server. Discrete input logic type are sink for fast inputs, sink for regular inputs, and source for logic inputs. Discrete output logic type is source. There is an isolation between channels 500Vrms and internal logic and no isolation between channels. It supports 128MB flash and 64MB internal RAM memory. It is an IP20 rated product. Its dimensions are 262.5mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.8kg. It is suitable for used in general machine control, conveying and packaging applications. This product is certified by CE, GOST-R CSA, C-Tick and CULus. It meets IEC 61131-2, CSA C22.2 No 213, CSA C22.2 No 142 and UL 508 standards. The capacity of M258 logic controllers can be enhanced with the Modicon TM5 expansion module offer. This controller is also equipped with a locking lever for mounting/dismounting on symmetrical DIN rail. Compact and totally expandable, the Modicon M258 Logic Controllers are designated to the machine builders (OEMs) by offering performant solutions in terms of speed control, high speed counting, motion and communication networks. 30% saving time in assembly, wiring and commissioning.logic controller, Modicon M258, compact base, 42 IO, 24V DC, relay, CANopen
Schneider Electric TM258LF42DR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Anti Bounce Filtering
- 2 µs...4 ms configurable fast input/regular input and fast output
- Configurable Filtering Time
- 0 ms fast input/regular input and fast output || 1.5 ms fast input/regular input and fast output || 12 ms fast input/regular input and fast output || 4 ms fast input/regular input and fast output
- Counting Input Number
- 8 200 kHz
- Data Backed Up
- variables of type retain and retain persistent CR2477M Renata, 1.5 years
- Depth
- 85 mm
- Discrete Input Current
- 4 mA fast input || 4 mA regular input
- Discrete Input Logic
- sink fast input || sink regular input || source input
- Discrete Input Number
- 10 fast input || 12 input || 4 regular input
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Discrete Output Current
- 4 mA fast output
- Discrete Output Logic
- source
- Discrete Output Voltage
- 24 V DC
- Height
- 99 mm
- Input Impedance
- 6 kOhm fast input || 6 kOhm regular input
- Integrated Connection Type
- 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps || 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX || 1 isolated serial link mini B USB 480 Mbit/s || 1 isolated serial link USB type A 480 Mbit/s || 2 free slots PCI || 1 CANopen male SUB-D 9 CANopen master
- Isolation Between Channels
- none
- Isolation Between Channels And Internal Logic
- 500 Vrms AC
- Line Rated Current
- 0.04 A embedded expert modules power || 10 A I/O power segment || 0.33 A main supply
- Local Signalling
- 1 LED per channel I/O state || 1 LED green/yellow Eth LA (Ethernet activity) || 1 LED red BATT (battery status) || 1 LED CAN0 STS || 1 LED MBS COM || 1 LED green/red APP0 || 1 LED green/red APP1 || 1 LED green/red Eth NS (Ethernet network status) || 1 LED green/red Eth ST (Ethernet status) || 1 LED green/red RUN/MS (module status) || 1 LED green/red USB host
- Marking
- CE
- Maximum Cable Distance Between Devices
- <30 m fast input || <30 m fast output || <30 m regular input
- Memory Description
- flash 128 MB || internal RAM 64 MB
- Mounting Support
- symmetrical DIN rail
- Net Weight
- 0.8 kg
- Output Voltage Limits
- 19.2...28.8 V
- Peak Current
- 100 kA <= 70 s)main supply || 25 kA <= 500 s)I/O power segment || 50 kA <= 150 s)embedded expert modules power || 1.2 A > 70 s)main supply
- Power Consumption In W
- 17.22 W
- Realtime Clock
- without any user calibration < 30 s/month 25-25 °C || with user calibration <= 6 s/month
- Supply Voltage Limits
- 20.4-28.8 V
- Transmission Rate
- 125 kbit/s 500-500 m CANopen || 250 kbit/s 250-250 m CANopen || 50 kbit/s 1000-1000 m CANopen || 500 kbit/s 100-100 m CANopen || 10 kbit/s 5000-5000 m CANopen || 1000 kbit/s 4-4 m CANopen || 20 kbit/s 2500-2500 m CANopen || 800 kbit/s 25-25 m CANopen
- [Us] Rated Supply Voltage
- 24 V DC embedded expert modules power || 24 V DC I/O power segment || 24 V DC main supply
- Voltage State 0 Guaranteed
- <= 5 V fast input || <= 5 V fast output || <= 5 V regular input
- Voltage State 1 Guaranteed
- >= 15 V fast input || >= 15 V fast output || >= 15 V regular input
- Width
- 262.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Ambient Air Temperature For Storage
- -25-70 °C
- Disturbance Radiated/Conducted
- CISPR 11
- Ip Degree Of Protection
- IP20IEC 61131-2
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- CSA || cULus || GOST-R || C-tick
- Relative Humidity
- 5-95 % without condensation
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
- Shock Resistance
- 15 gn 11 ms
- Standards
- CSA C22.2 No 213 || UL 508 || CSA C22.2 No 142 || IEC 61131-2
- Storage Altitude
- 0-3000 m
- Surge Withstand
- 0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete I/O Number
- 42
- Discrete Output Number
- 12 relay output || 4 fast output
- Product Or Component Type
- logic controller
- Range Of Product
- Modicon M258
