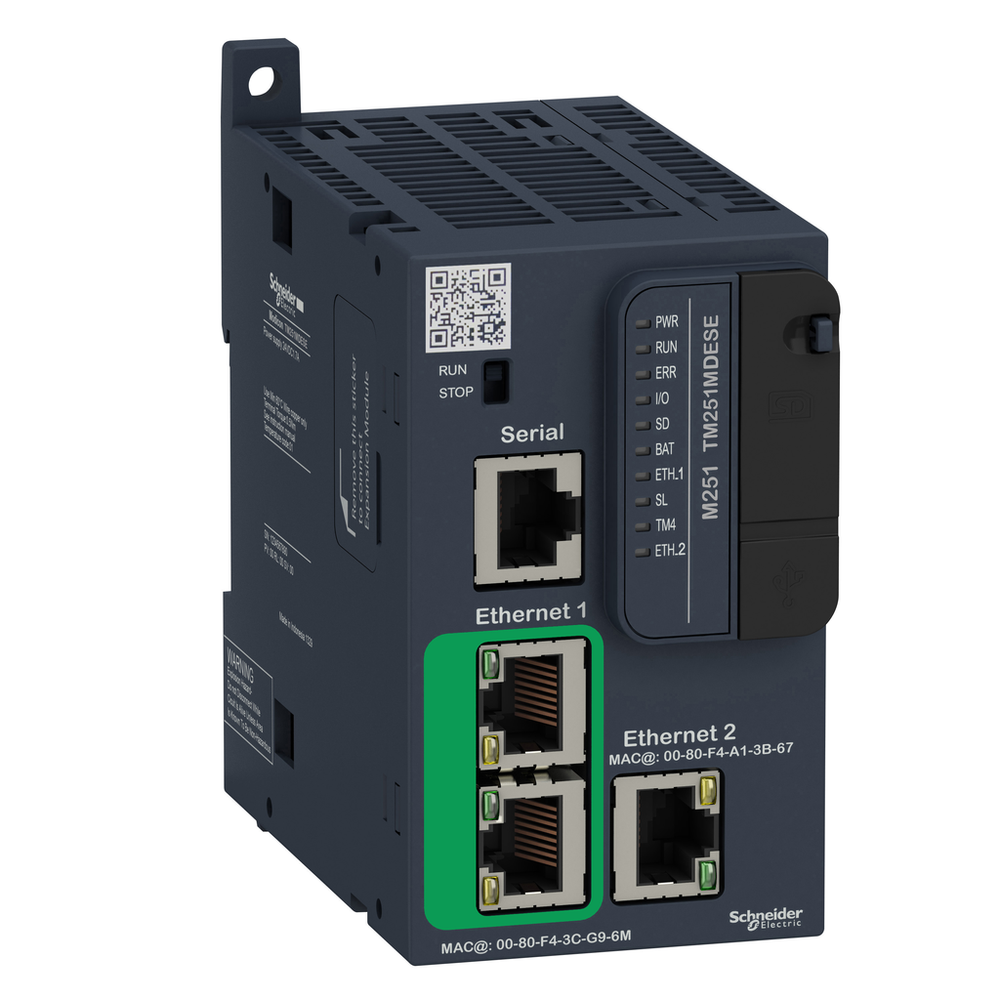

Schneider Electric TM251MDESE
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The Modicon M251 dPAC is part of the EcoStructure Automation Expert hardware controller range. It is an optimised dPAC controller that supports Modicon TM3 I/O catalog. The controller carries up to 488 discrete I/O channels, 114 analog I/O channels and 14 (7 local + 7 remote) Modicon TM3 expansion modules. It is a cost-optimized, low-footprint distributed controller based on the machine-specialized Modicon M251 PAC platform. It includes a 1GB/s Ethernet port, a dual port Ethernet field bus and supports Modbus/TCP, OPC UA and auto discovery. The controler is compatible with most Modicon TM3 I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 (Edition 2 2007), UL508 (UL61010-2-201), ANSI/ISA 12.12.01-2007, CSA C22.2 No. 213, No. 142, E61131-2 and IACS E10 standards.dPAC module, Modicon M251
Schneider Electric TM251MDESE is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Backup Time
- 2 years 25 °C
- Battery Type
- BR2032 lithium non-rechargeable 4 year(s)
- Clock Drift
- <= 60 s/month -10-50 °C
- Communication Service
- Modbus TCP client || Modbus TCP server || OPC UA server || NTP client
- Data Backed Up
- 128 MB built-in flash memory backup of user programs
- Data Storage Equipment
- <= 16 GB SD card optional)
- Depth
- 90 mm
- Electrical Connection
- removable screw terminal block power supply pitch 3.81 mm)
- Height
- 90 mm
- Integrated Connection Type
- USB port mini B USB 2.0 || non isolated serial link serial RJ45 RS232/RS485 || dual-port Ethernet 1 2 RJ45 || Ethernet port Ethernet 2 RJ45
- Local Signalling
- for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL 1 LED (green) || for bus fault on TM4 (TM4) 1 LED (red)
- Marking
- CE
- Maximum Number Of I/O Expansion Module
- 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
- Memory Capacity
- 64 MB system memory RAM
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Net Weight
- 0.22 kg
- Port Ethernet
- Ethernet 10BASE-T/100BASE-TX - 2 copper cable
- Power Consumption In W
- 45-45 W with max number of I/O expansion module)
- Realtime Clock
- with
- Supply Voltage Limits
- 19.2-28.8 V
- Surge Withstand
- 1 kV shielded cable common mode EN/IEC 61000-4-5 || 1 kV power lines common mode EN/IEC 61000-4-5 || 0.5 kV power lines differential mode EN/IEC 61000-4-5
- Width
- 54 mm
Environment
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation) || -10-55 °C horizontal installation)
- Ambient Air Temperature For Storage
- -40-70 °C
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 61000-6-4 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 61000-6-4 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 61000-6-4 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 61000-6-4 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 61000-6-4
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 with protective cover in place
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2
- Product Certifications
- cULus || CSA || RCM || CE || Achilles || UKCA
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Resistance To Conducted Disturbances
- 10 V 80...1000 MHz EN/IEC 61000-4-3 || 3 V 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V 2 GHz...3 GHz EN/IEC 61000-4-3
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV EN/IEC 61000-4-4 power lines) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)
- Shock Resistance
- 15 gn 11 ms
- Standards
- ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || EN/IEC 61131-2 || UL 508
- Storage Altitude
- 0-3000 m
- Vibration Resistance
- 3.5 mm 5-8.4 Hz symmetrical rail || 1 gn 8.4-150 Hz symmetrical rail || 3 gn 8.7-150 Hz panel mounting
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1401009EN
- Environmental Disclosure
- ENVPEP1401009EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- processor module
- Range Of Product
- Modicon M251
- [Us] Rated Supply Voltage
- 24 V DC
